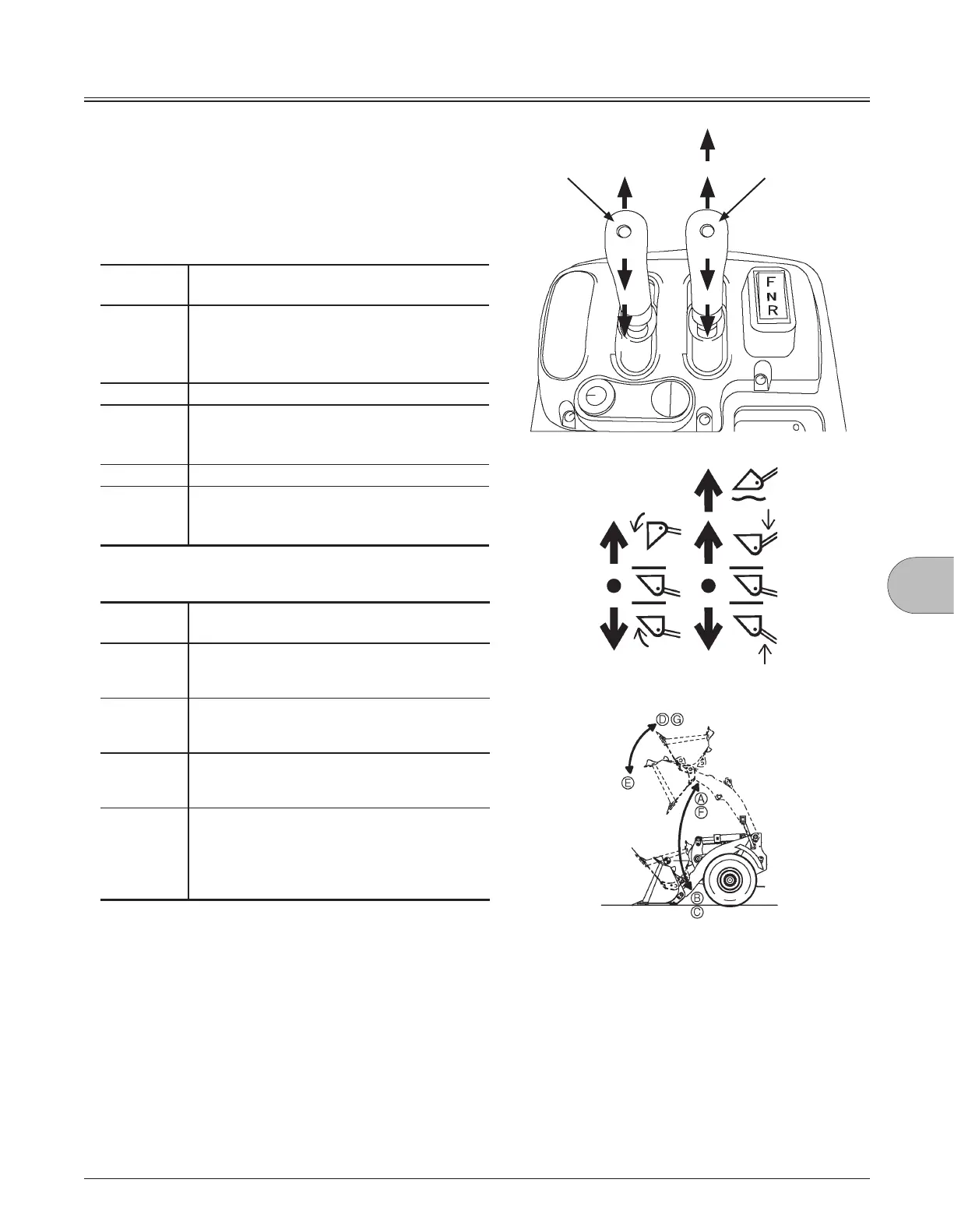

OPERATING THE MACHINE
Loading Control Levers
Fingertip Control Type
The fingertip control lever is used to operate the lift arm
and/or bucket.
Lift Arm Control Lever (1)
Lever
Position
Lift Arm Operation
C
Float (Detent):
The lift arm free falls and can be moved as
loads are applied. The lever will stay in this
position.
B Lift Arm Lower
N
Hold:
The lift arm is stopped and held in that
position.
A Lift Arm Raise
F
Detent:
The lift arm is held in the raise position with
the detent.
Bucket Control Lever (2)
Lever
Position
Bucket Operation
E
Bucket Dump:
The bucket is tilted forward to dump the
bucket.
N
Hold:
The bucket is stopped and held in that
position.
D
Bucket Tilt (or Roll Back):
The bucket is tilted back; (also this is the
transportation position.)
G
Detent:
When the bucket control lever is moved from
the bucket dump position to the bucket tilt
position, the bucket control lever is held in
this position with the detent.
2 1
MNEC-03-003
C
BE
NN
A
FG
D
M4GB-01-072
C
BE
NN
AD
M4GB-01-073
