OPERATOR'S STATION
1-81

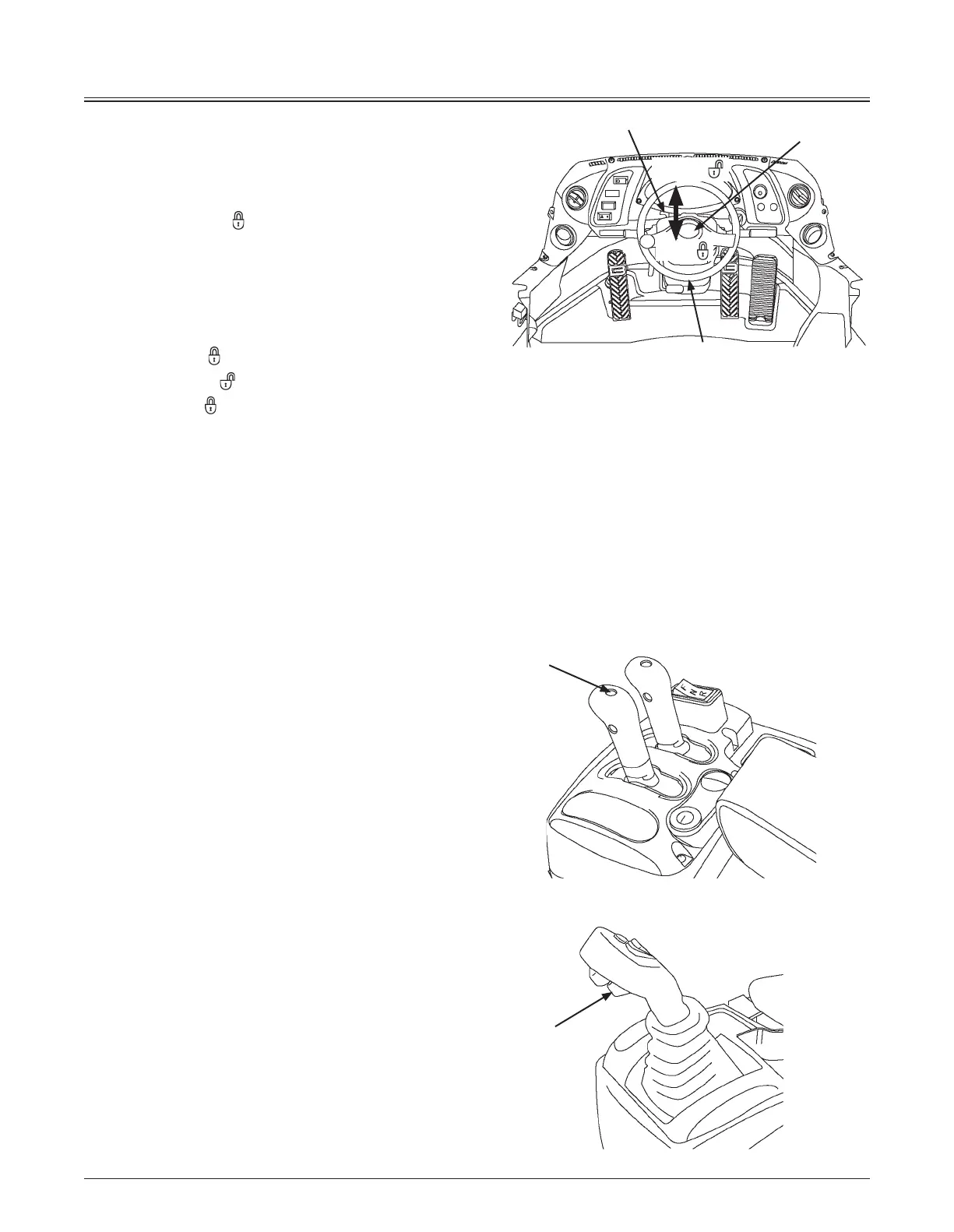

Neutral Lever Lock (for the Forward/Reverse
Lever)
d
WARNING: When the machine is parked or
serviced, be sure to place the neutral lever lock (red
lever) in the lock ( ) position.
The neutral lever lock makes the forward/reverse lever
immovable so that the machine does not start moving
even if a body part comes in contact with the forward/
reverse lever by mistake.
Before starting or stopping the engine, set neutral lever
lock (1) in the lock (
) position.
Pull :
Unlock (
)
Push :
Lock (
)
Steering Wheel
d
WARNING: CRUSH HAZARD
Keep personnel out of area of articulation joint.
IMPORTANT: When steering wheel (5) is fully turned,
the front and the rear chassis come in contact
with the stoppers so that the steering wheel
does not rotate further. If the steering wheel is
forcibly turned moreover, the engine may stall or
malfunction of the steering system may result.
Horn Switch
Press horn switch (6) to sound the horn.
The horn switch is provided also on the control lever to
improve operator comfort.
Unlock ( )
Lock ( )
Fingertip Control Type
Multi-Function Joystick Type
MNEC-01-036
1
5
6
6
MNEC-01-042
MNEC-01-044
6
To Next Page
