OPERATOR'S STATION
1-111

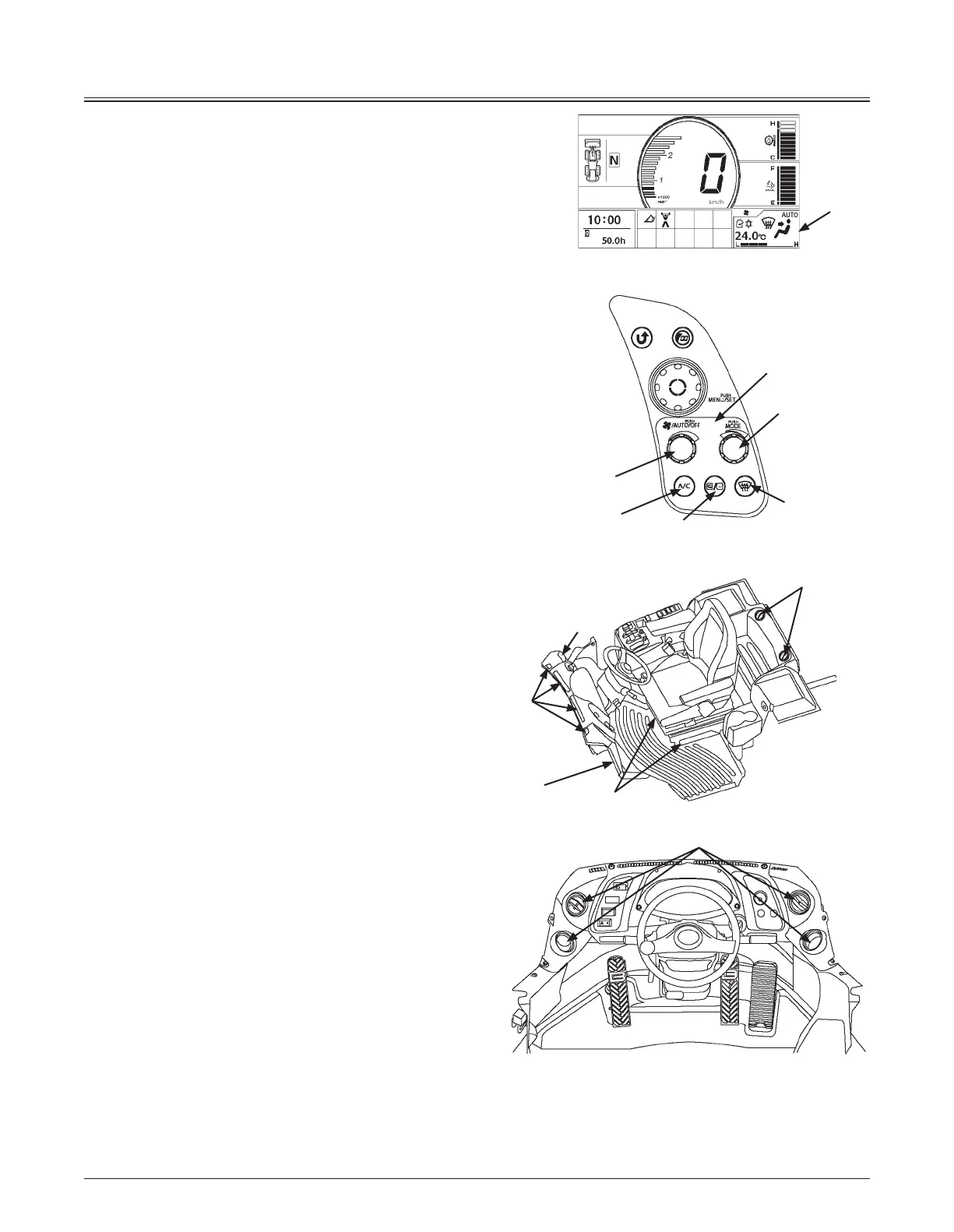

Components Name
1- Monitor
2- Control Panel
3- Temperature Control Switch (Rotate)/Mode Switch
(Press)
4- Defroster Switch
5- Circulation/Fresh Air Switch
6- Air Conditioner ON/OFF Switch
7- Fan (Rotate)/Auto Switch (Press)
8- Defroster Vent
9- Rear Vent
10- Foot Vent
11- Air flows out of front vent and the defroster vents.
f
NOTE:
Except for the foot vent (10) and defroster vent (8), all
vents are provided with louvers to adjust the air flow
direction.
In addition, the louvers on front vent (11) and rear vent
(9) can be completely opened and closed by hand.
MNEC-01-006
MNEC-01-035
MNEC-01-036
9
8
10
11
7
6
2
3
5
4
8
8
1
MNEK-01-103EN
