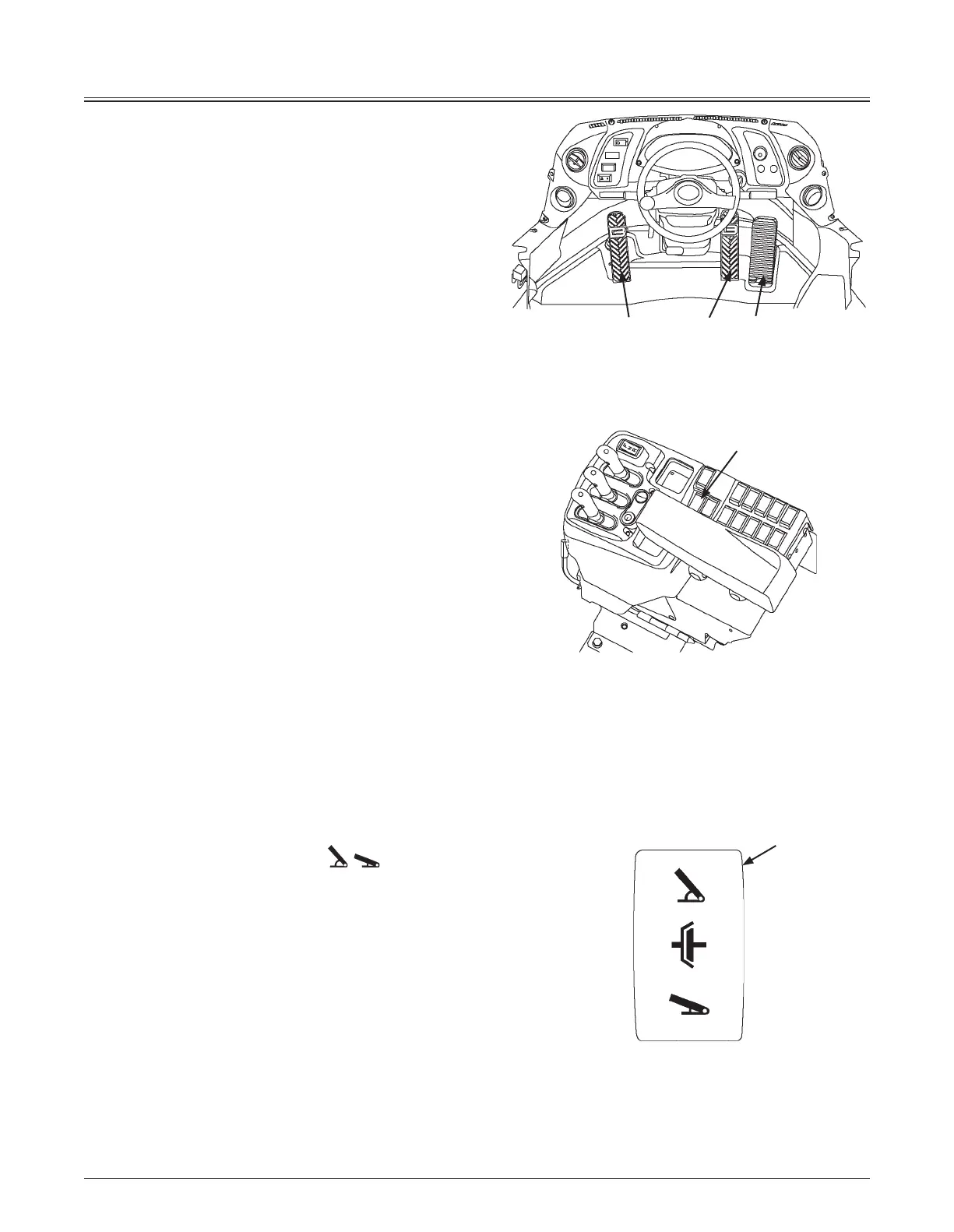

OPERATOR'S STATION
1-86
MNEC-01-036
Fingertip Control Type
4
MNEC-01-041
Accelerator Pedal
When accelerator pedal (3) is applied, the engine speed
increases. When released, the engine speed decreases.
f
NOTE: The engine speed may change due to the machine
control regardless of the operation of the accelerator
pedal.
Brake Pedal
d
WARNING:
Avoid sudden brake application when moving
machine, possibly creating a hazardous situation.
The machine may lose its balance.
Unless necessary, do not rest your foot on the
brake pedal to prevent the brake pads, discs, and
clutch from wearing out prematurely.
Keep the areas around the brake pedals clean
to prevent dust and/or grit from accumulating.
The brake may not be fully released and become
inoperable.
Left and right brake pedals (1), (2) can function as the
service brake. Left pedal (1) also functions as declutch
brake by switching declutch position switch (4).
Service Brake
Brake pedals (1), (2) function as normal brake by setting
declutch position switch (4) to OFF (Neutral) position. Be
sure to turn clutch cut position switch (4) OFF (Neutral)
before traveling down or on a slope.
Declutch Brake
Brake pedal (1) functions as a declutch brake by setting
declutch position switch to the ON
, . Use this
mode when performing loading work or while stopping
machine.
1 2 3
MNEC-01-025
4
ON
OFF (Neutral)
ON
