OPERATOR'S STATION
1-84
Light Switch

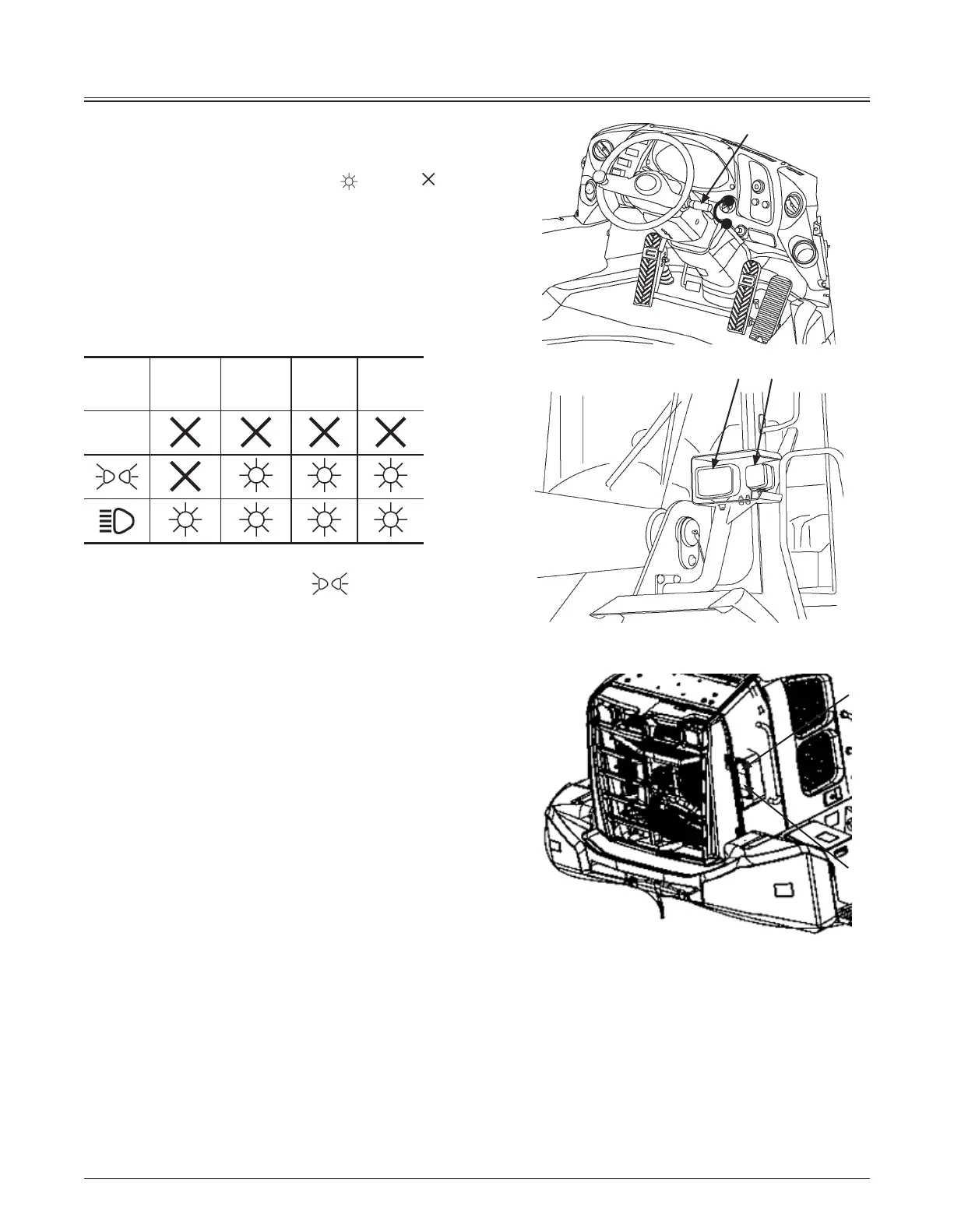

Light switch (1) has three positions, OFF, Small, and Main.
As shown below, each light comes ON ( ) or OFF ( )
according to the selected position of the light switch.
2- Headlight
3- Turn Signal / Hazard Light / Clearance Light
4- Turn Signal/Hazard Light
5- Brake Light/Tail Light
Light
Switch
Position
Headlight
Clearance
Light
Tail Light
Monitor
Panel
Light
OFF
f
NOTE: The light switch position keeps lit even if the
key switch is turned OFF. It is used as a parking light when
parking the machine by a public road.
IMPORTANT: Do not hold the switch position at
"ON" for a long time with the engine stopped. The
batteries will become discharged.
1
MNEC-01-038
2
4
5
3
M4GB-01-153
70MPD8-01-02
