Hitachi ZW 180-6 User Manual

1-11
OPERATOR'S STATION
Monitor Panel
1
21
22
2 3 4
5
6
7
8
9
10
11
12
131415
16
17
18
19
20

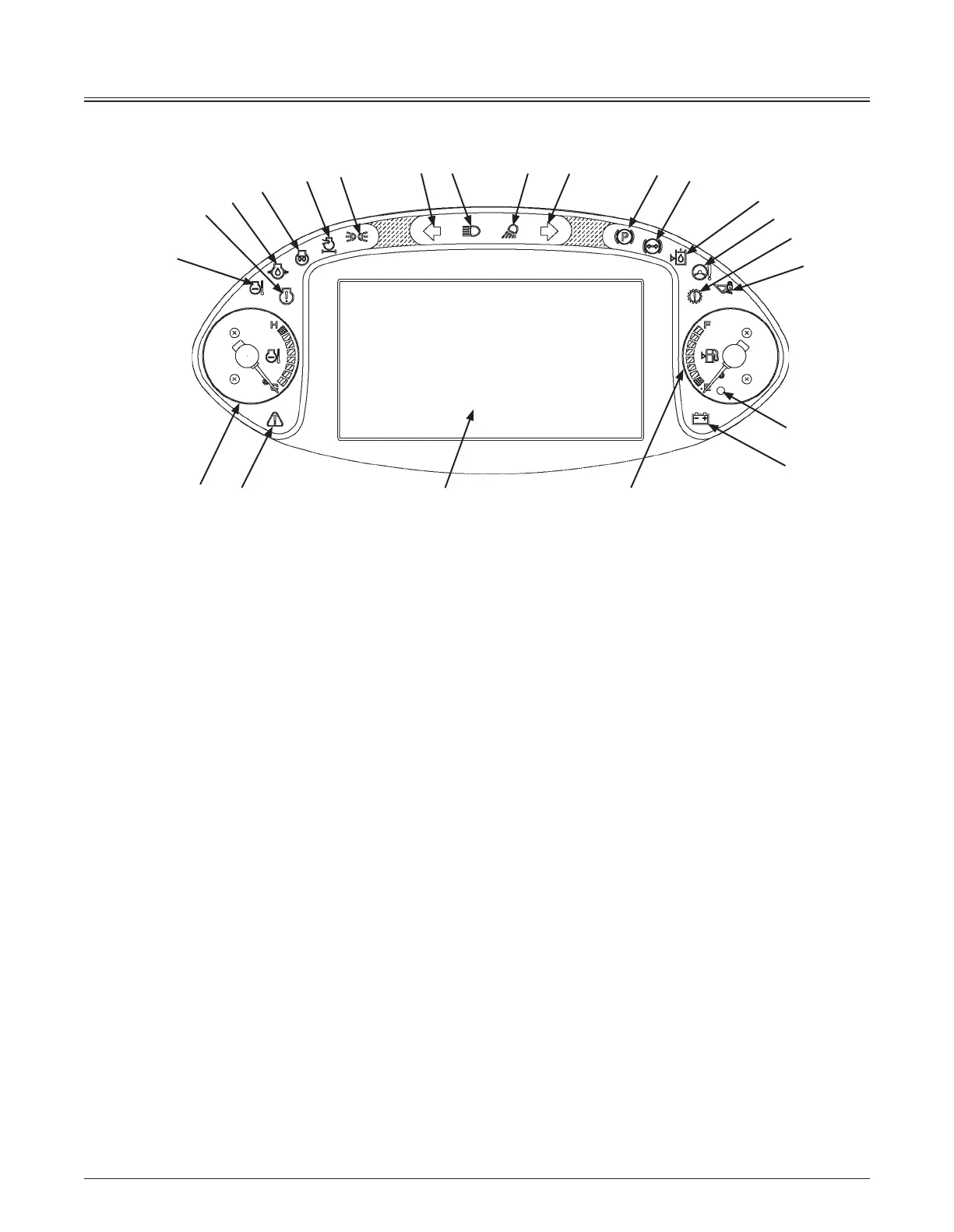

1- Left Turn Signal Indicator 12- Discharge Warning Indicator
2- High Beam Indicator 13- Fuel Gauge
3- Work Light Indicator 14- Multi Function Monitor
4- Right Turn Signal Indicator 15- Communication System Error Indicator
5- Parking Brake Indicator 16- Coolant Temperature Gauge
6- Brake Oil Low Pressure Indicator 17- Overheat Indicator
7- Hydraulic Oil Level Indicator 18- Engine Warning Indicator
8- Low Steering Oil Pressure Indicator (Option) 19- Engine Oil Low Pressure Indicator
9- Transmission Warning Indicator 20- Preheat Indicator
10- Control Lever Lock Indicator 21- Air Filter Restriction Indicator
11- Fuel Level Indicator 22- Clearance Light Indicator
MNEC-01-001
