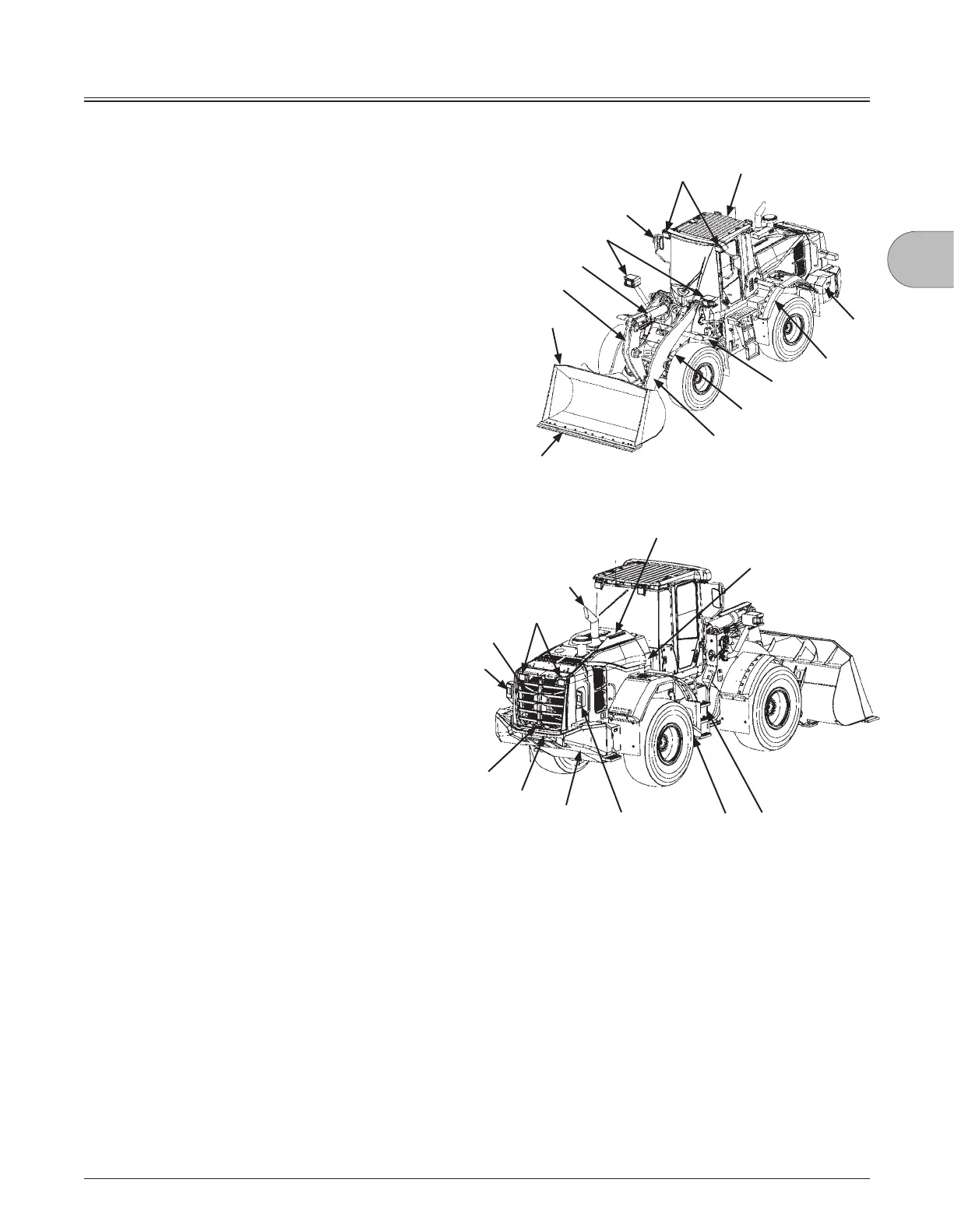

COMPONENTS NAME
Components Name
1- Cutting Edge (BOC)
2- Bucket
3- Bell Crank (Lever)
4- Bucket Cylinder
5- Front Combination Light
(Headlight/Turn Signal/Clearance Light/Hazard Light)
6- Outside Rear View Mirror
7- Front Work Light
8- ROPS Cab
9- Rear Fender
10- DEF/AdBlue® Tank
11- Front Fender
12- Lift Arm (Boom) Cylinder
13- Lift Arm (Boom)
14- Rear Work Light
15- Aftertreatment Device
16- Exhaust Pipe
17- Hydraulic Oil Tank
18- Articulation Stopper (Lock Bar)
19- Rear Combination Light
(Turn Signal/Hazard Light/Tail Light/Brake Light/
Backup Light)
20- Battery
21- Counterweight
22- Towing Pin
23- Fuel Filler Port
24- Radiator/Oil Cooler
1
2
3
4
5
6
7
8
9
10
11
12
13
MPD8-01-003
MPD8-01-04US
15
17
16
18
19
20
21
22
19
24
14
23
