OPERATOR'S STATION
1-129

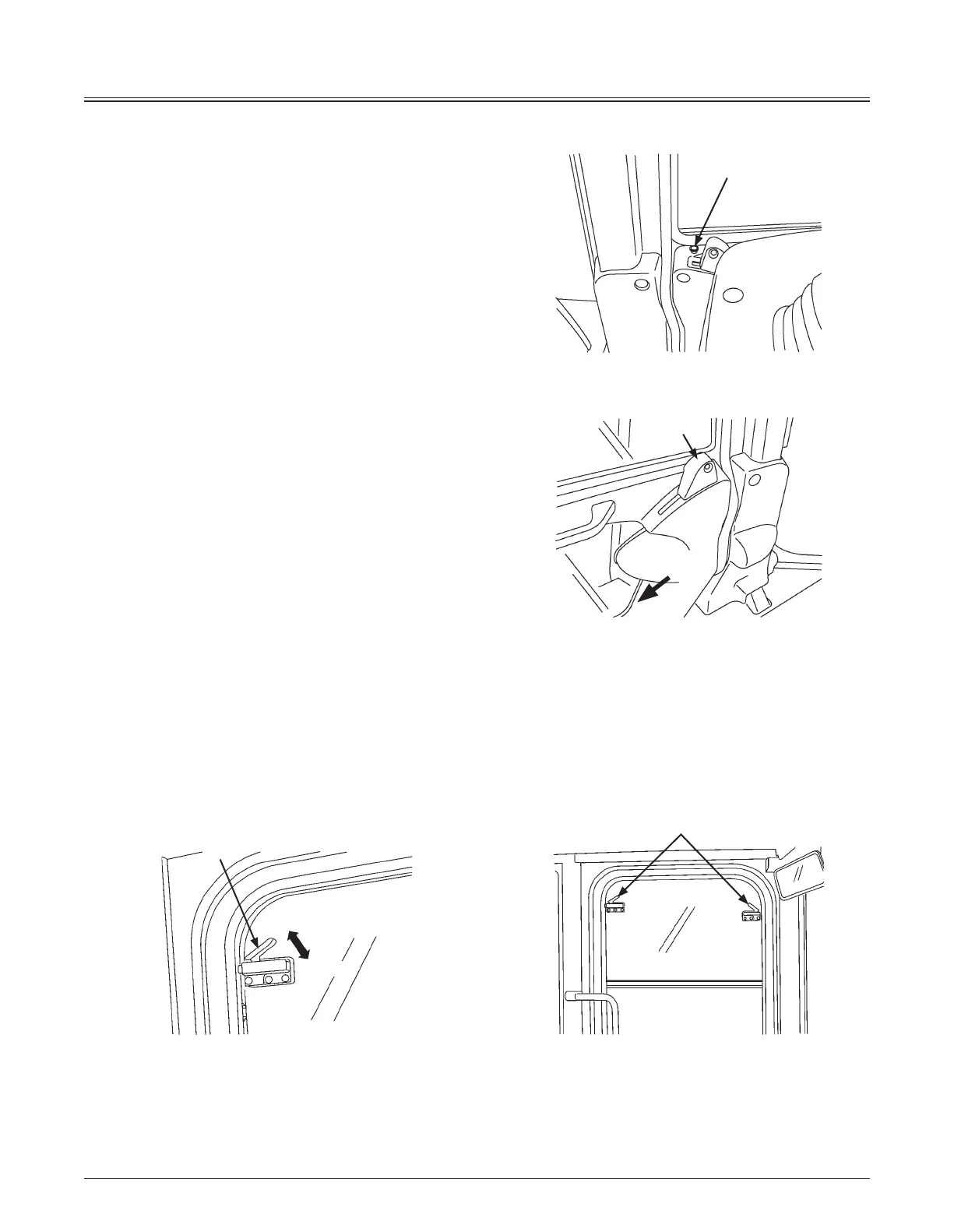

Door Lock Knob
d
CAUTION: After closing the door, always check
that the door lock is securely engaged.
Depress door lock knob (5) to engage the door lock.
Door Open/Close Lever
When opening the door, while lifting door lock knob (5),
pull lever (6) to disengage the door lock.
Window Open/Close Levers
When window open/close levers (7) on both sides are
simultaneously pressed, the window is unlocked, allowing
the windowpanes to move.
When window open/close levers (7) are released, stoppers
are engaged in the nearest steps so that the window is
locked in that position.
M4GB-01-128
M4GB-01-129
5
6
M4EK-01-048 M4FJ-01-016
7
7
Lock
Unlock
