OPERATING THE MACHINE
Excavation
Loading Accumulated Soil
IMPORTANT:
Do not dig or scoop with machine frame
articulated.
Avoid operating the machine with the front wheels
raised off the ground. Machine traction force is
reduced and excessive loads are applied to the
undercarriage.
Scoop load while moving the machine forward as
described below. As load increases the wheels begin to
slip, slightly raise the lift arm to increase tire grip.
f
NOTE: When loading rocks or hard packed material, the
use of bucket teeth is recommended.

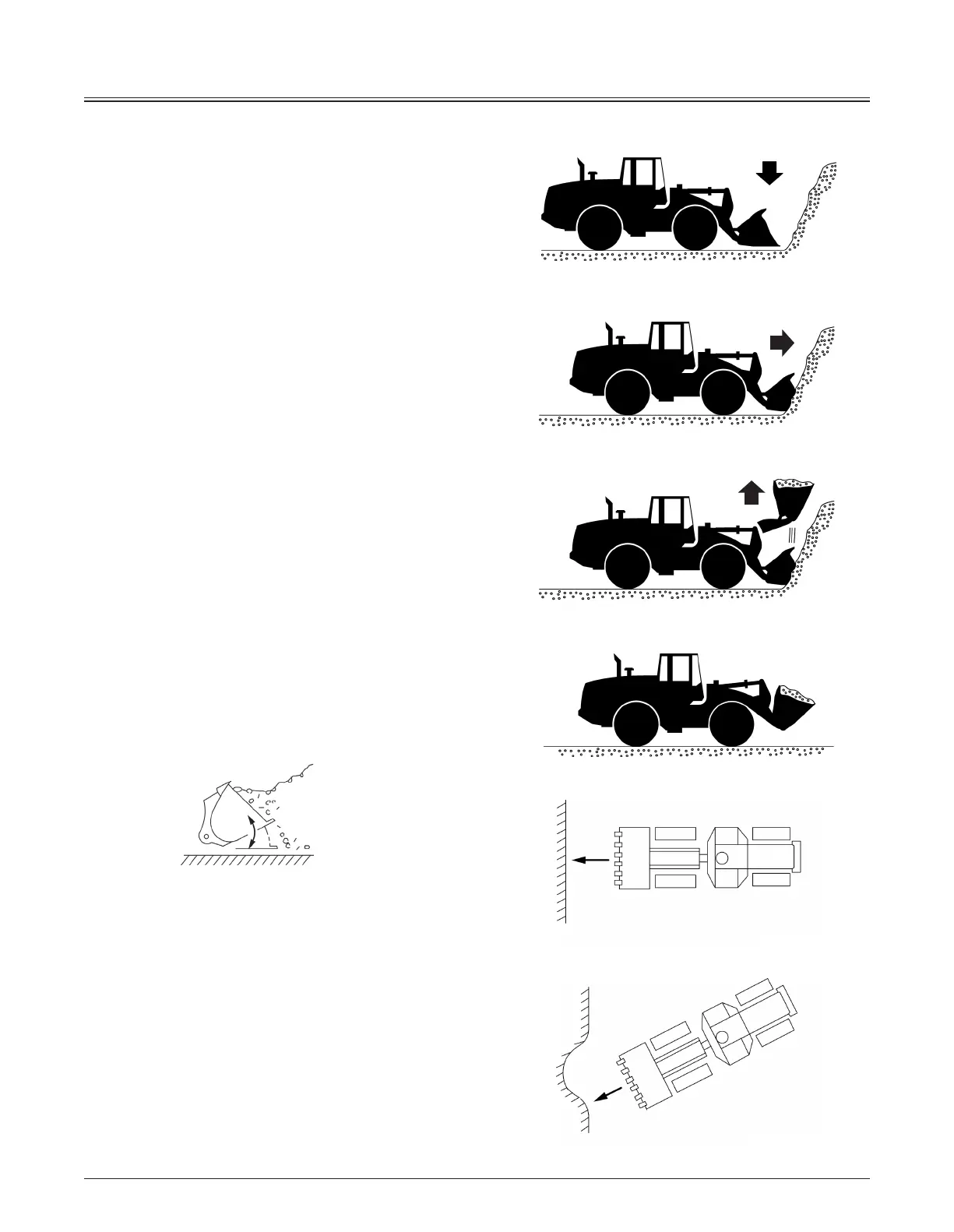

1. Move the machine forward to the material.
Steer the machine in a straight ahead position when
entering the material.
2. Lower the bucket parallel to the ground. Drive the
bucket straight into the material.
f
NOTE: Use approximately 1/2 - full engine speed.
3. Raise the lift arm while running the machine forward
slowly in 1st or 2nd speed. Use 2nd speed for loose
materials.
4. Move the bucket control lever to the "Roll Back" and
the "Hold" position several times to get more material
in the bucket.
When the bucket is filled, move the bucket control
lever to the "Roll Back" position.
5. Move the machine with the bucket rolled back fully
and held at the driving position.
f
NOTE: Steer the machine in a straight ahead position
when entering the material. Aim the center of the bucket at
the protruding portion of the material.
