OPERATOR'S STATION
1-130
When Fully Opening the Door
d
WARNING: Before getting in or out the cab while
using the handrails, check that the cab door is
securely latched. If entering the cab without
latching the door securely, the door latch may
loose, possibly causing an accident.
Push the door toward the outside of the cab to fully open
the door (180°).
Cab Door Release Lever
d
CAUTION: When keeping the door open, open the
door until latch (10) on the cab securely locks the
door. When disengaging the door lock, push door
lock disengage lever (8) or (9) downward.

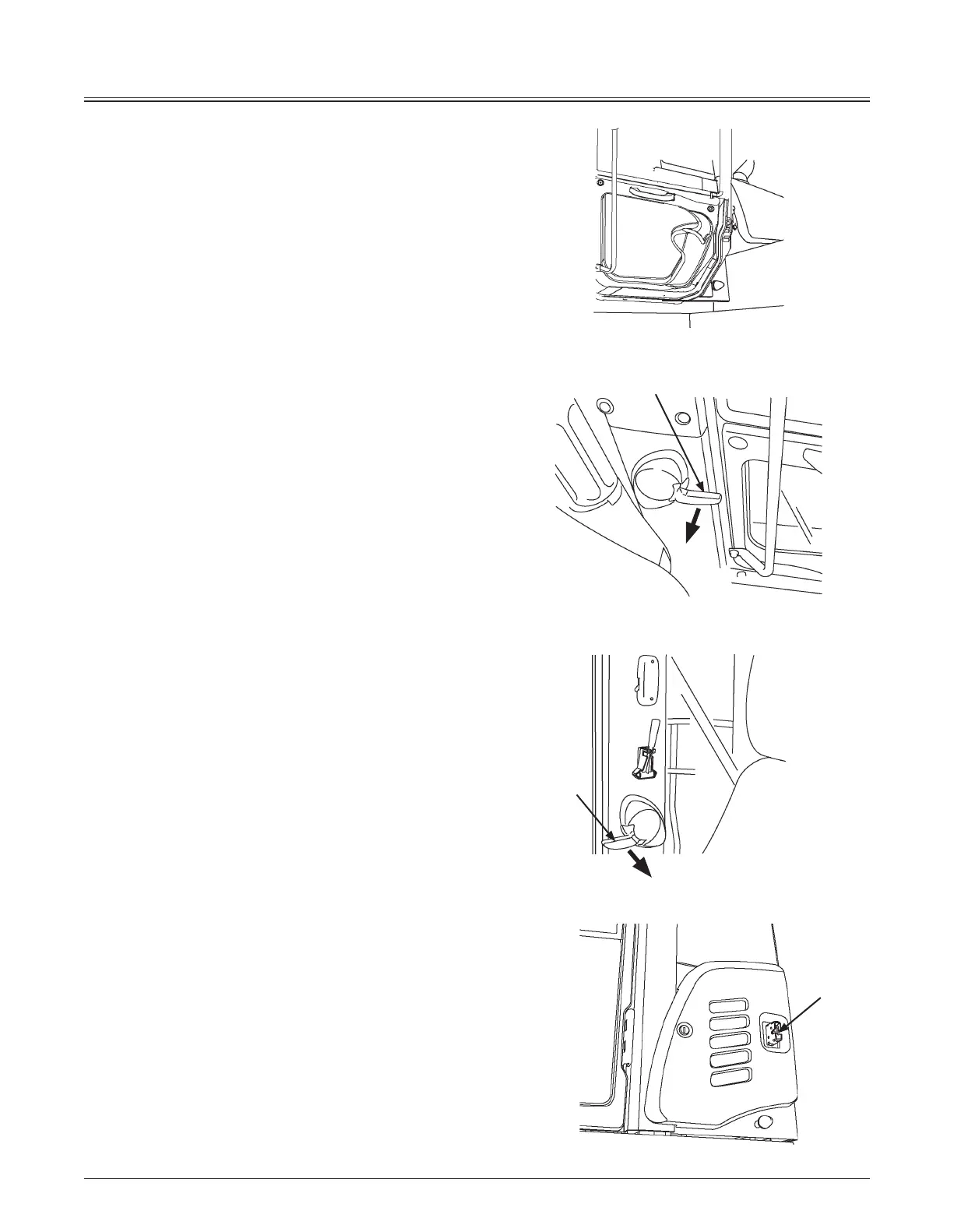

M4GB-01-132
M4GB-01-133
M4GB-01-117
9
8
Left Door Lock Disengage Lever
Right Door Lock Disengage Lever
MNEC-01-055
10
