OPERATOR'S STATION
1-135
Inspection/Maintenance Side Access Cover
d
CAUTION:
Never attempt to stand on fender (2) if side cover
(1) is provided with fender (2).
Always close side covers (1) when moving and/or
operating machine.
Do not keep the side cover open on a slope or
when a strong wind is blowing.
Failure to do so may be dangerous because the
side cover may unexpectedly move or close.
Take care not to pinch fingers when opening/
closing side cover (1).
When side cover (1) is opened, the cover may
move suddenly. Be careful not to come in contact
with the cover.
Before inspecting around the engine, be sure to
secure side cover (1) with holding rod (4).
When opening side cover (1), pull latch (3).
f
NOTE: When servicing the machine for a long time
with side cover (1) kept open, lock side cover (1) using the
holding rod (4) located inside the side cover.
Side cover (1) has a holding groove. Engage the holding
rod (4) in the holding groove securely.

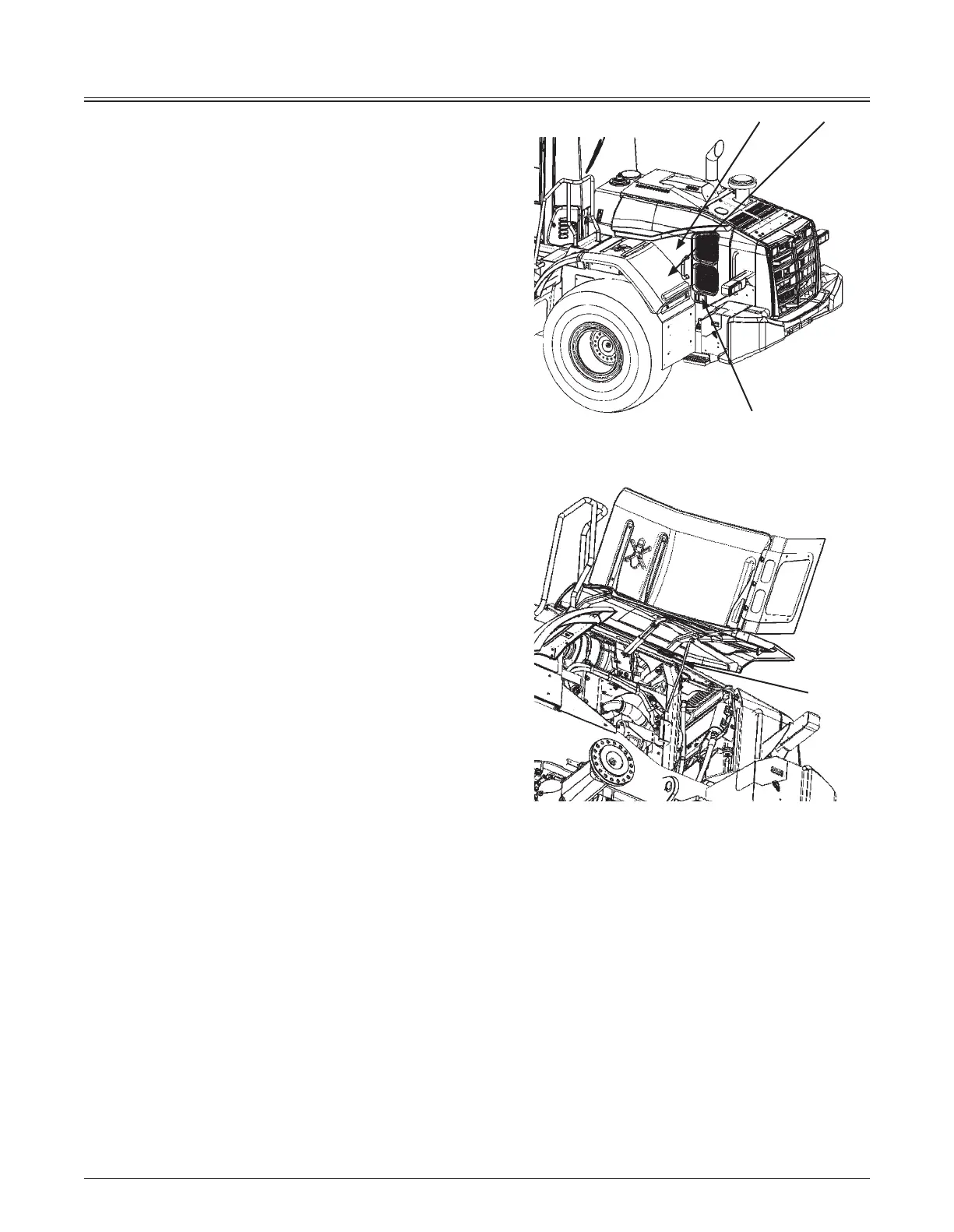

1 2
3
4
MNEK-01-009
MNEK-01-010
