OPERATOR'S STATION
1-97
M4GB-01-083
MNEC-01-037
F
R
N
22
23
5
MNEC-01-041
MNEC-01-043
23
5

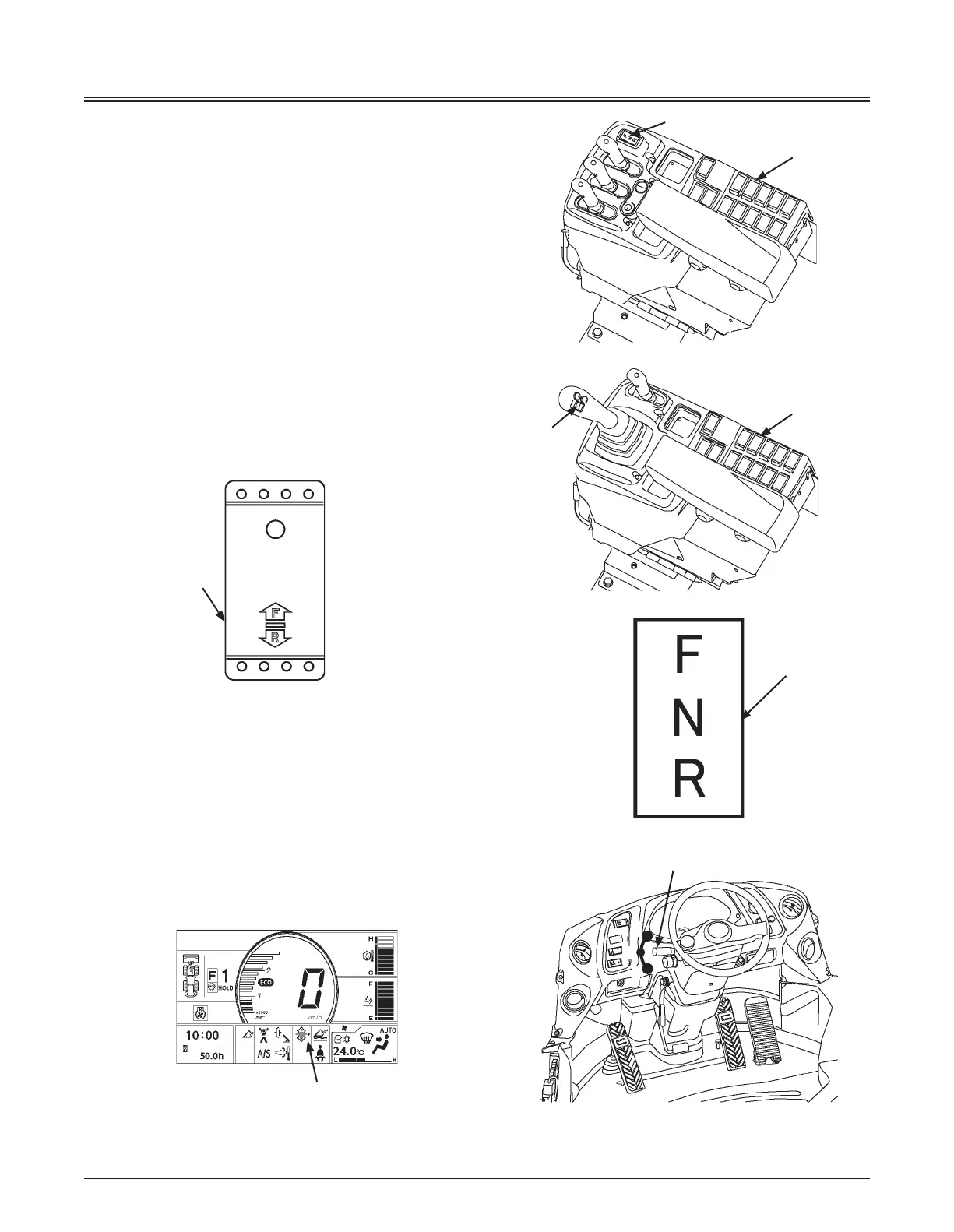

Forward/Reverse Selector Switch
Forward/reverse selector switch (5) is a switch that
activates forward/reverse switch (23). When forward/
reverse selector switch (5) is in ON position, the machine
travels in the forward or reverse direction by selecting the
(F) or (R) side of forward/reverse switch (23).
Operational Procedure
1. Turn the parking brake switch OFF.
d
WARNING: At this time, be sure to depress the
brake pedal to ensure safety.
2. When forward/reverse selector switch (5) is turned
ON while both forward/reverse lever (22) and
forward/reverse switch (23) are in the neutral (N)
position, forward/reverse indicator (24) is shown.
3. Set forward/reverse switch (23) to (F) or (R).
f
NOTE: The forward/reverse lever (22) has priority over
the forward/reverse switch (23). When the forward/reverse
lever (22) is applied while the forward/reverse switch (23)
is engaged, priority is given to the lever (22), not the switch
(23).
Perform step 2 above to use the forward/reverse switch
(23).
ON
OFF
5
M4GB-01-084
23
MPD8-01-100EN
24
To Next Page
