MAINTENANCE
7-88
Check Electrical Harnesses and Fuses
--- every 50 hours
d
CAUTION: If dirt or dust is adhered on the wirings or
relays, it may cause fire on the machine.
Check the electrical harness and terminals of the batteries,
starter motor, and alternator for loose connection and/or short
circuit (broken shield). Remove dirt or dust if necessary.
If any burned mark or an abnormal smell is noticed at a
harness, consult your nearest authorized dealer.

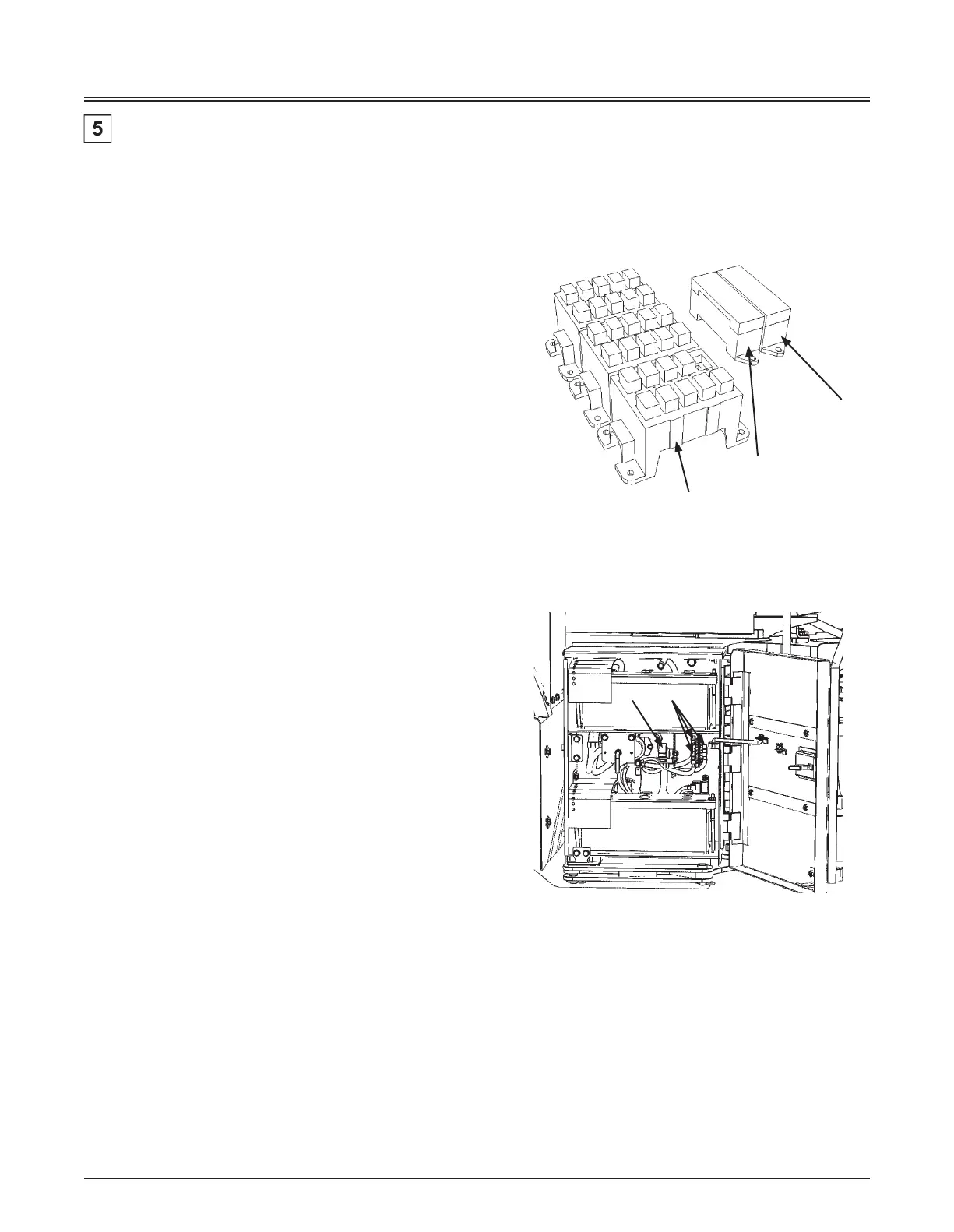

Replace Fuse:
1. If any electrical equipment becomes inoperable, first
check the fuses in the fuse boxes (A, B) located in the left
console in the operator's station.
2. One spare fuse for each respective fuse capacity is
provided in the fuse boxes (A, B).
3. Finally, check slow blow fuses (1) (2) located on the
inside of the battery box.
1- 70A, 140A
2- 45A, 65A (2 used)
MNEK-07-017
1 2
MNEK-01-015
Fuse Box A
Relay Boxes
Fuse Box B
To Next Page
