OPERATOR'S STATION
1-91

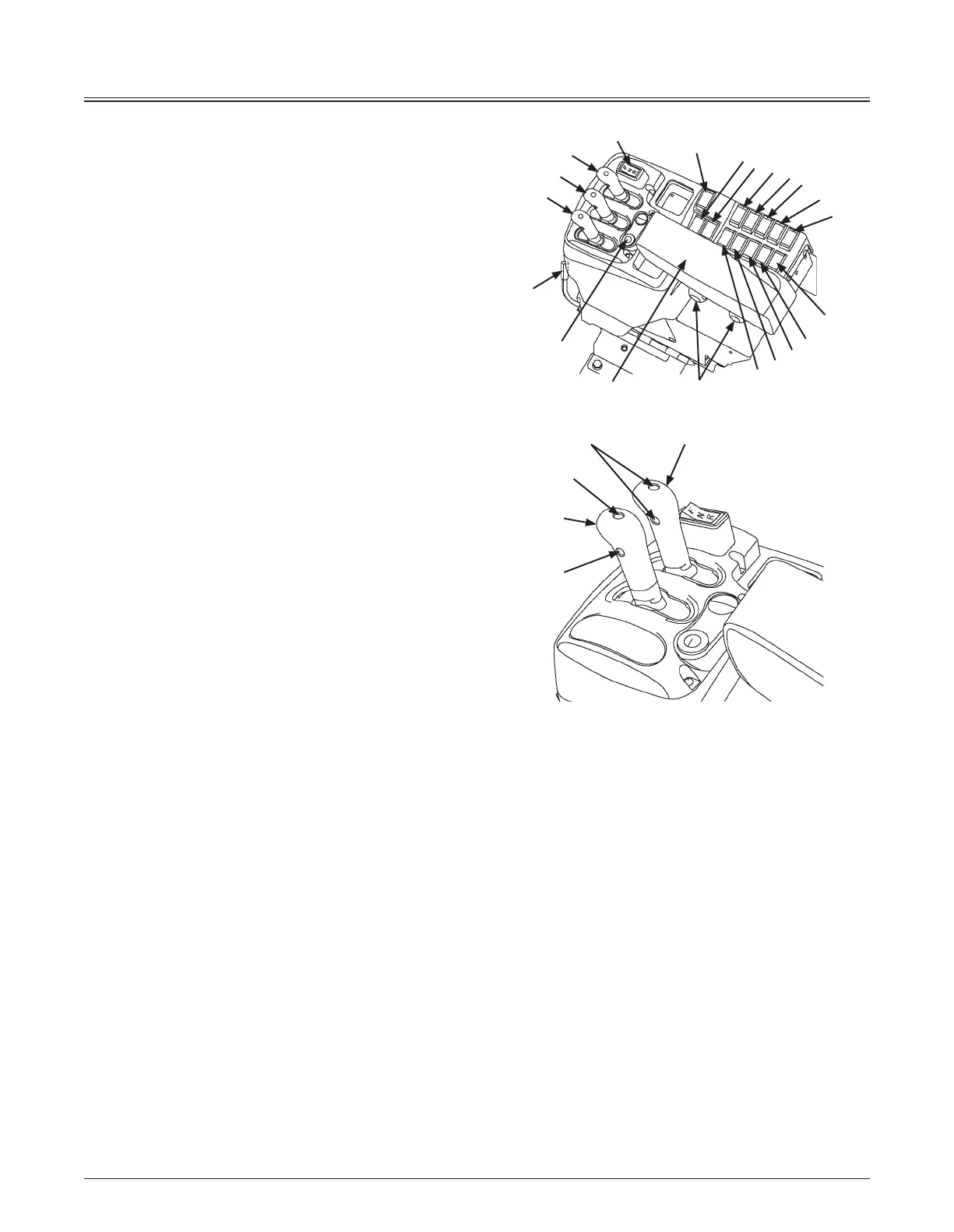

Right Console / Switches
Fingertip Control Type
1- Auxiliary Control Lever (Option)
2- Bucket Control Lever
3- Lift Arm Control Lever
4- Forward/Reverse Switch
5- Loading Control Lever Lock Switch
6- Declutch Position Switch
7- Travel Mode Selector Switch
8- Power Mode Selector Switch
9- Forward/Reverse Selector Switch
10- Fan Reverse Rotation Switch
11- (Not used)
12- Hydraulic Coupler Switch (Option)
13- Secondary Steering Operation Check Switch (Option)
14- Aftertreatment Device Regeneration Switch
15- (Not used)
16- 1st Speed Fixed Switch
17- Ride Control Switch (Option)
18- Armrest
19- Hold Switch
20- Right Console Slide Lever
21- Quick Power Switch
22- DSS (Down Shift Switch)
23- Horn Switch
24- Armrest Adjust Handle
22
23
21
2
3
1
2
3
4
5
6
8
7
9
10
11
12
13
14
15
16
17
18
19
20
MNEC-01-041
MNEC-01-042
24
