Honeywell Fusion4 MSC-L User Manual

Operation - Dual Bay Loading Application Overview
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 5 - 69

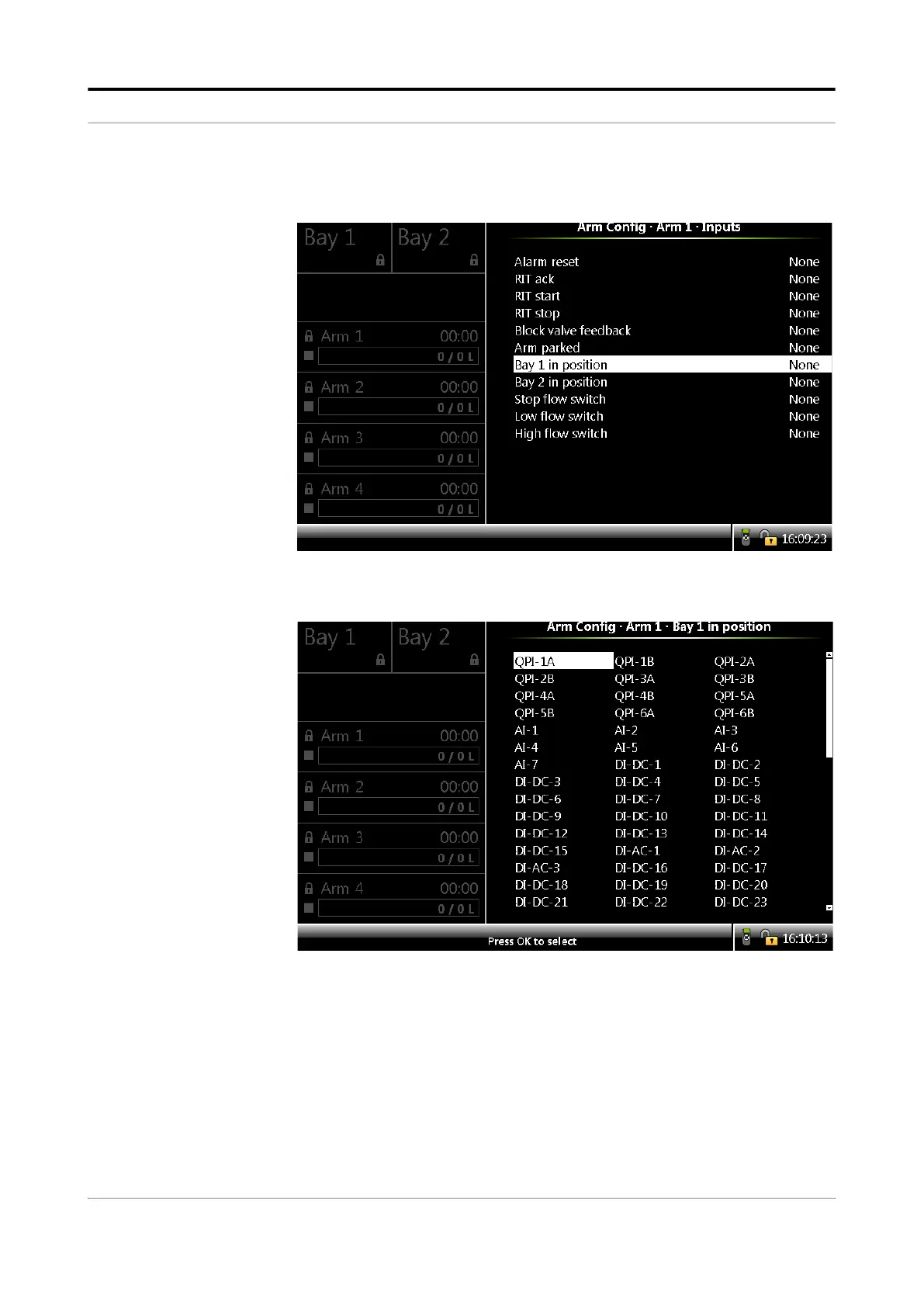

15. Select Main menu . Arm Configuration . Arm <number>. I/O bindings.
Inputs. The following screen appears.
16. On the Arm Configuration . Arm <number> . I/O bindings. Inputs
screen, select Bay 1 in position.
The following screen appears.
17. Select the required I/O binding for the selected bay.
If Bay 1 in position is Active, then the arm is in position at Bay 1; else,
the arm is not in position at Bay 1. Similarly, if Bay 2 in position is Active,
then the arm is in position at Bay 2; else, the arm is not in position at
Bay 2.
