Table 26: Port Settings
ValuePort Settings
115200Bits per second
8Data bits
NoneParity
1Stop bits
NoneFlow control
5.
In the HyperTerminal window, type at. Press Enter.
The modem sends an OK response to verify that it can communicate successfully
with the COM port on your desktop or notebook computer.
6.
To configure the modem to answer a call on the first ring, type ats0=1 at the
prompt. Press Enter.
7.
To configure the modem to accept modem-control DTR signals, type at&d1 at
the prompt. Press Enter.
8.
To disable flow control on the modem, type at&k0 at the prompt. Press Enter.
9.
To set the fixed serial port speed on the modem, type at&b1 at the prompt. Press
Enter.
NOTE: You must set the serial port to the fixed speed so that the modem will not
adjust the serial port speed to the negotiated line speed.
10.
To save the new modem settings, type at&w0 at the prompt. Press Enter.
The modem sends an OK message. The modem is now ready to be connected
to the switch.
Connecting the Modem to the Console Port
The console port on every EX Series switch accepts a cable with an RJ-45 connector.
Figure 43 on page 96 shows the RJ-45 connector of the Ethernet cable supplied with
the switch.

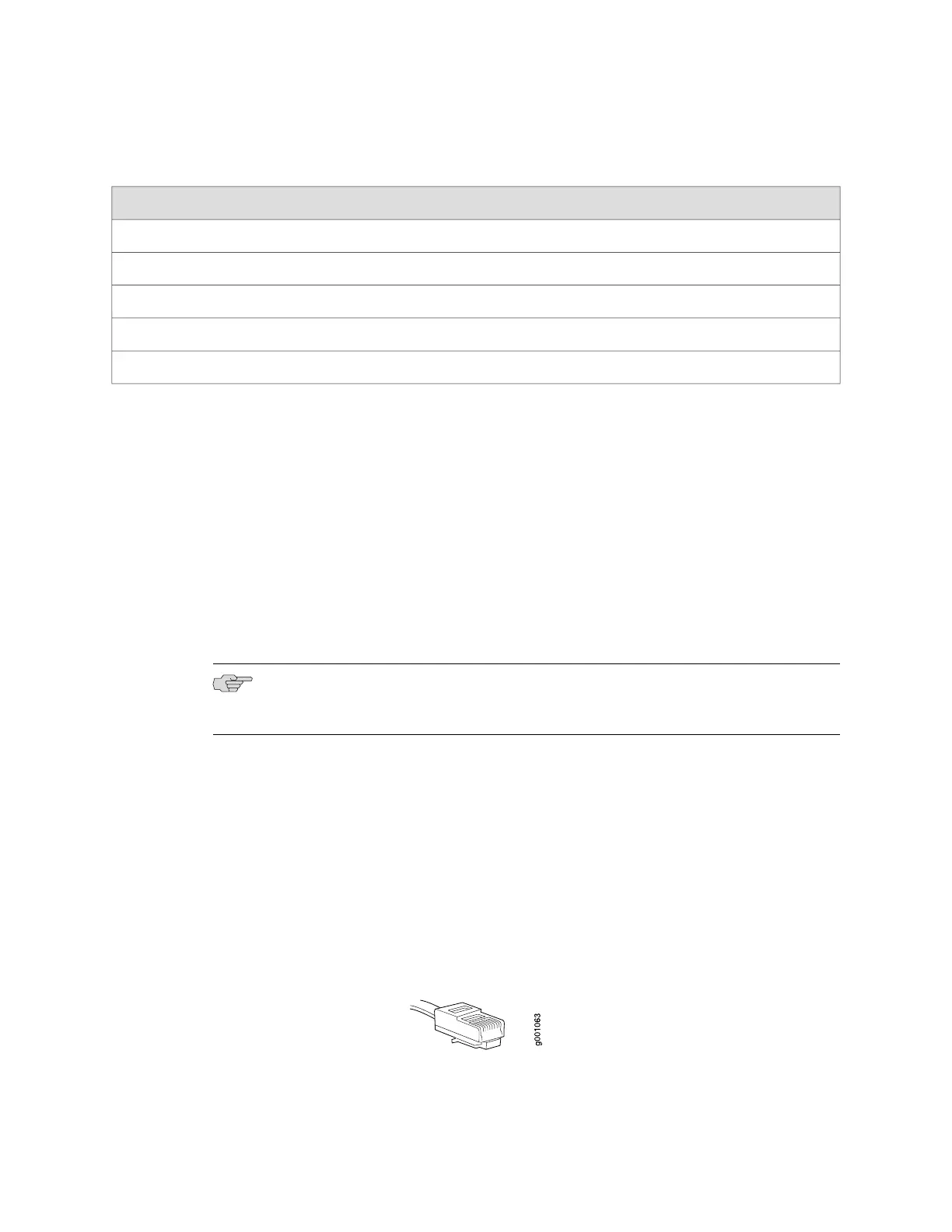

Figure 43: Ethernet Cable Connector
96 ■ Connecting the Modem to the Console Port
Complete Hardware Guide for EX4500 Ethernet Switches
