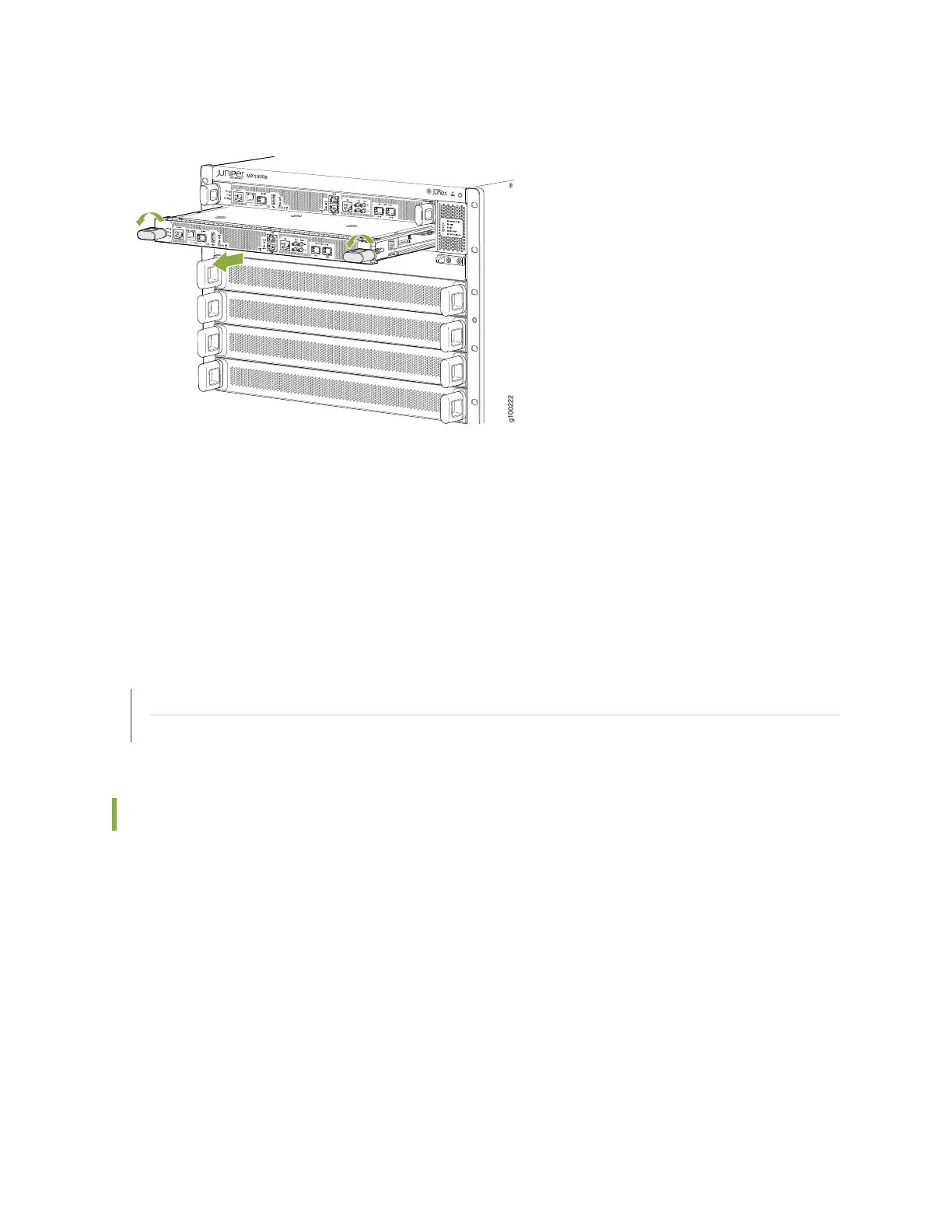

Figure 71: Removing a Routing and Control Board
5. Grasp each side of the RCB and slide it completely out of the chassis.
6. Place the RCB on the antistatic mat.
7. If you are not replacing the RCB now, install a cover panel in the empty slot.
SEE ALSO
Installing a Routing and Control Board | 176
Handling and Storing MX10008 Line Cards, RCBs, and SFBs | 244
Installing a Routing and Control Board
An MX10008 can have one or two Routing and Control Boards (RCBs), depending on the configuration.
RCBs can be installed in either of the two top slots on the front of the chassis.
In redundant configurations, an RCB is a hot-removable and hot-insertable field-replaceable unit (FRU).
In base configurations, you need to install a second RCB before removing a failing RCB in order to prevent
the router from shutting down.
Before you install a RCB, ensure that you have an electrostatic discharge (ESD) grounding strap.
To install an RCB:
176
