Front panel operation
The Series 3700A includes several models that support different features. The following figures show
the front panels of each of the models. A brief description of the features follows the figures.

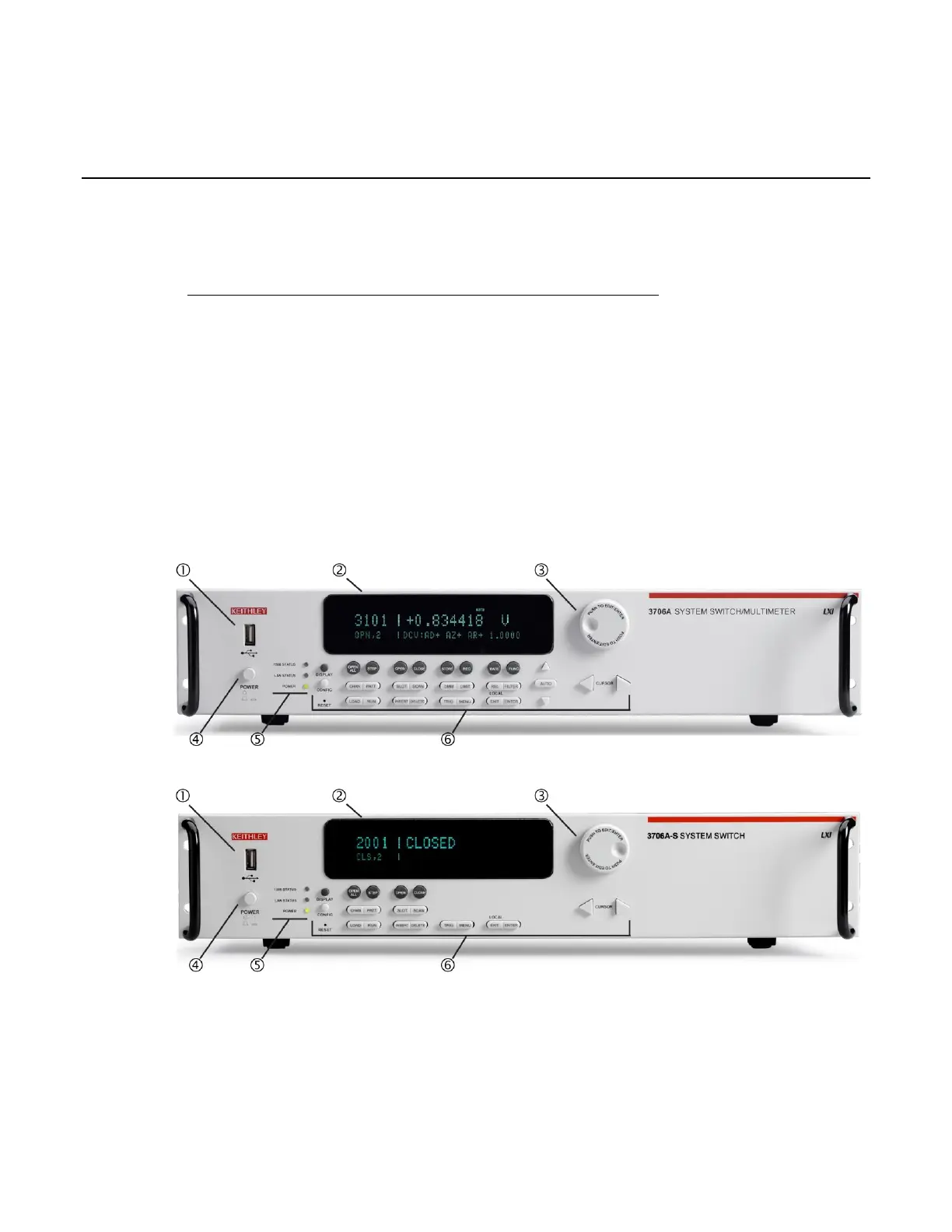

Figure 18: Model 3706A with DMM front panel
Figure 19: Model 3706A-S front panel (no DMM)
Section 3
Instrument description

Keithley 3700 Series Specifications

General

Model	Keithley 3700 Series
Category	Multimeter
Number of Channels	Up to 576 channels
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitance
DC Voltage Range	300 V
AC Voltage Range	300 V
Frequency Range	3 Hz to 500 kHz
Temperature Range	Varies with sensor type
Temperature (Thermocouple) Types	J, K, T, E, R, S, B, N
Capacitance Range	1 pF to 100 μF
Connectivity	LAN, USB, GPIB
Interface	GPIB, Ethernet, USB
Power Supply	100 V to 240 V, 50 Hz to 60 Hz
Dimensions	8.4 in x 16.8 in x 17.5 in
