5-51

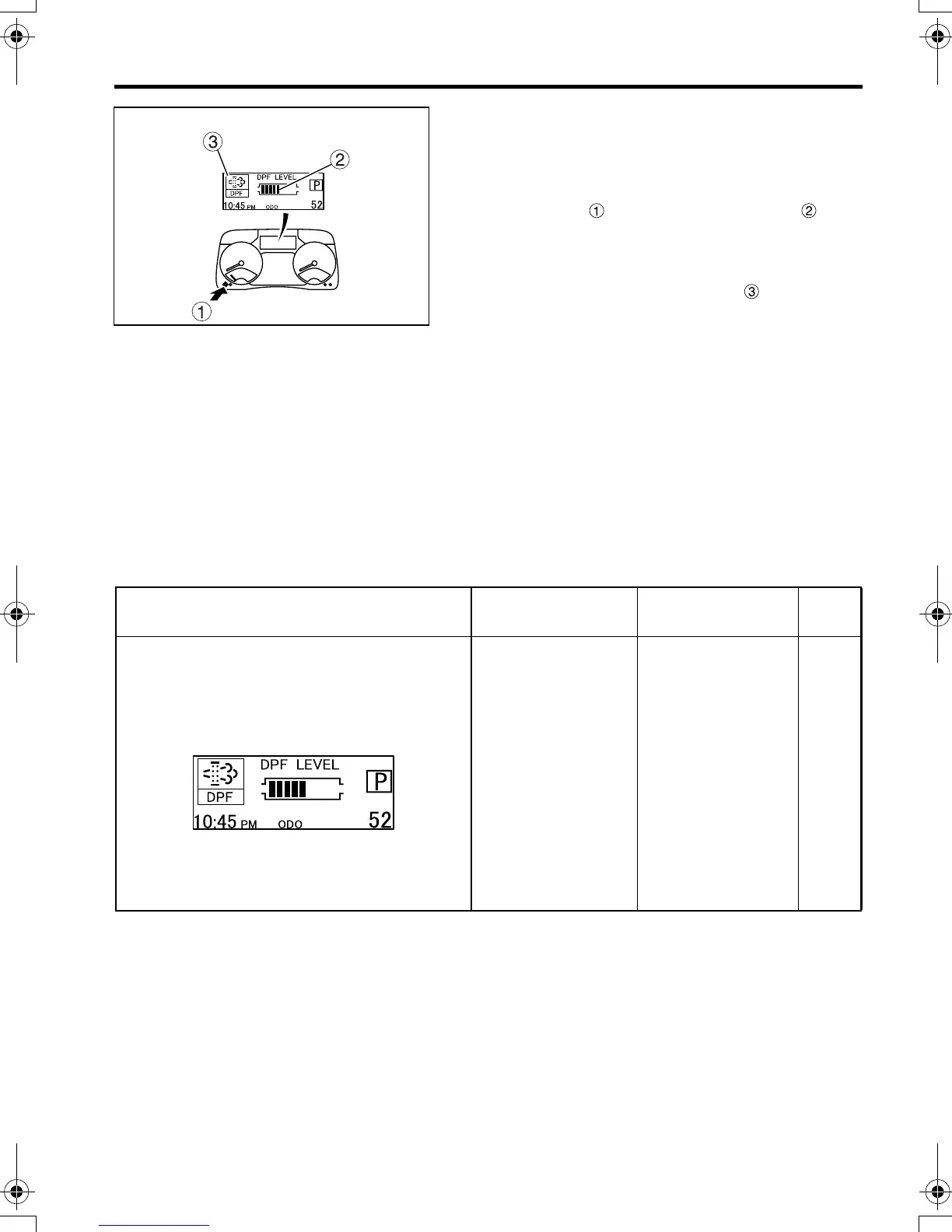

1.2 PM indicator
If you select the DPF monitor on the multi-informa-
tion display, you can check the amount of PM col-
lected in the DPF.
• Select the DPF monitor mode by pressing the
MODE switch to see the PM indicator .
• The PM indicator shows the amount of PM in 9
degrees. The number of segments increases or
decreases as the amount of PM changes. In
addition, the color of the symbol changes as
follows:
Green: When the number of displayed
segments is 1 to 6
Amber: When the number of displayed
segments is 7 to 9
1.3 PM indicator and warning/indicator lamp
• The PM indicator and warning/indicator lamp
either light or flash according to the amount of
PM in the DPF.
• Perform parked DPF regeneration if prompted
by the warning/indicator lamp as well as by the
PM indicator on the multi-information display.
Indication by
PM indicator
Warning/indicator
lamp
Parked/automatic
regeneration
Ref.
page
When the number of displayed segments
is 1 to 6:
–––
Z21268
Z21269
FE_FG.book Page 51 Tuesday, February 8, 2011 4:00 PM
To Next Page
