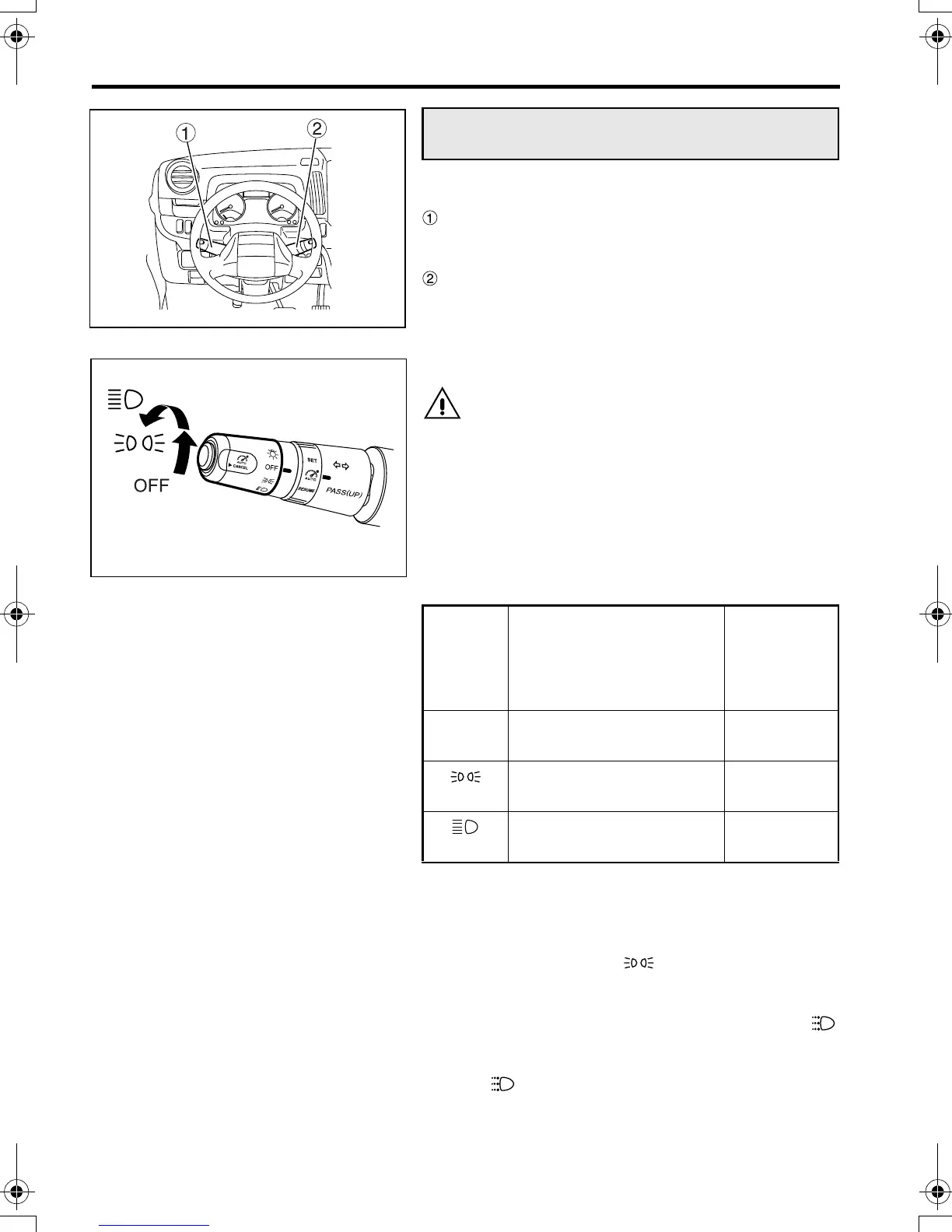

5-16 Switches and controls
1 Arrangement of switches
Lighting switch
Passing/dimmer switch
Turn signal switch
Exhaust brake switch <option>
Wiper and washer switch
2 Lighting switch
CAUTION
Keeping the headlamps on for a long period
without the engine running can drain the bat-
tery, making the engine impossible to start.
The lighting switch can be used with the starter
switch in any position.
Turning the knob at the end of the lever controls the
illumination of lamps as follows:
*: Illuminated by daytime running light system
NOTE:
Even when the vehicle is operated with the lighting
switch in the “OFF” or position, the daytime
running light system causes the low-beam head-
lamps to be lit. (The headlamps are dimmer than
when activated using the lighting switch.) The
indicator lamp is also lit. When the parking brake is
applied or the engine is stopped, the headlamps
and the indicator lamp go off.
Combination switch
Identification, clearance
and side marker,
parking, tail, license,
front fog <option> and
meter illumination lamps
Headlamps
OFF
position
Off On*
position
On On*
position
On On
Z21344
Z21345
