1 Headlamp bulb replacement
For safety and simplicity, bulb replacement is per-
formed with the headlamp removed. The radiator
grill and the front and side turn signal lamp must be
removed before the headlamp can be removed.
1.1 Headlamp removal and installation
• Removing the radiator grille

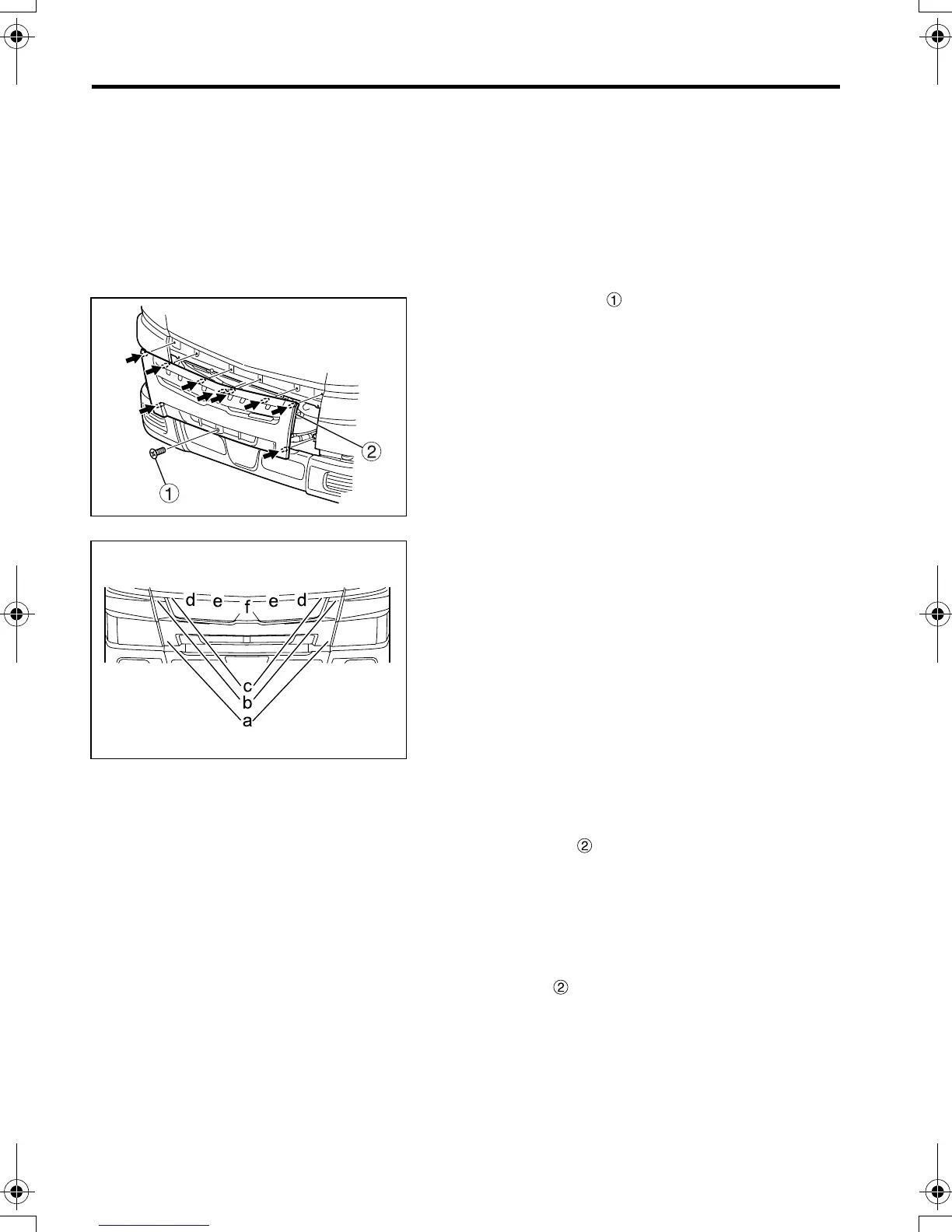

1. Remove the screw of the radiator grille.
2. Remove the radiator grille by pulling outward on
the clipped points in the order of the letters in
the illustration.
NOTE:
Pull the grille straight forward and horizontally.
• Installing the radiator grille
1. Follow the removal procedure in reverse.
When installing the front grille, make sure the
rubber packing at each side of the grille does
not protrude from the clearance between the
grille and lamp.
2. Finally install the screw.
NOTE:
After installing the front grille, check whether the
rubber packing at each side of the grille is not
protruding between the grille and lamp. If the pack-
ing is protruding, push it in so it can’t be seen on the
surface. Be careful not to damage the front grille or
the lamps.
