1.2 Headlamp bulb replacement
CAUTION
• Do not directly touch the glass part of a halo-
gen bulb with your fingers. Any oil and other
substances contaminating the glass surface
could shorten the bulb’s service life.
• Do not clean lamps with alcohol and thinner,
because their lenses are made of plastic.
• Do not attach any sticker or tape on the
headlamp lens. Doing so may result in defor-
mation of the lens by heat since the lens is
made of plastic.

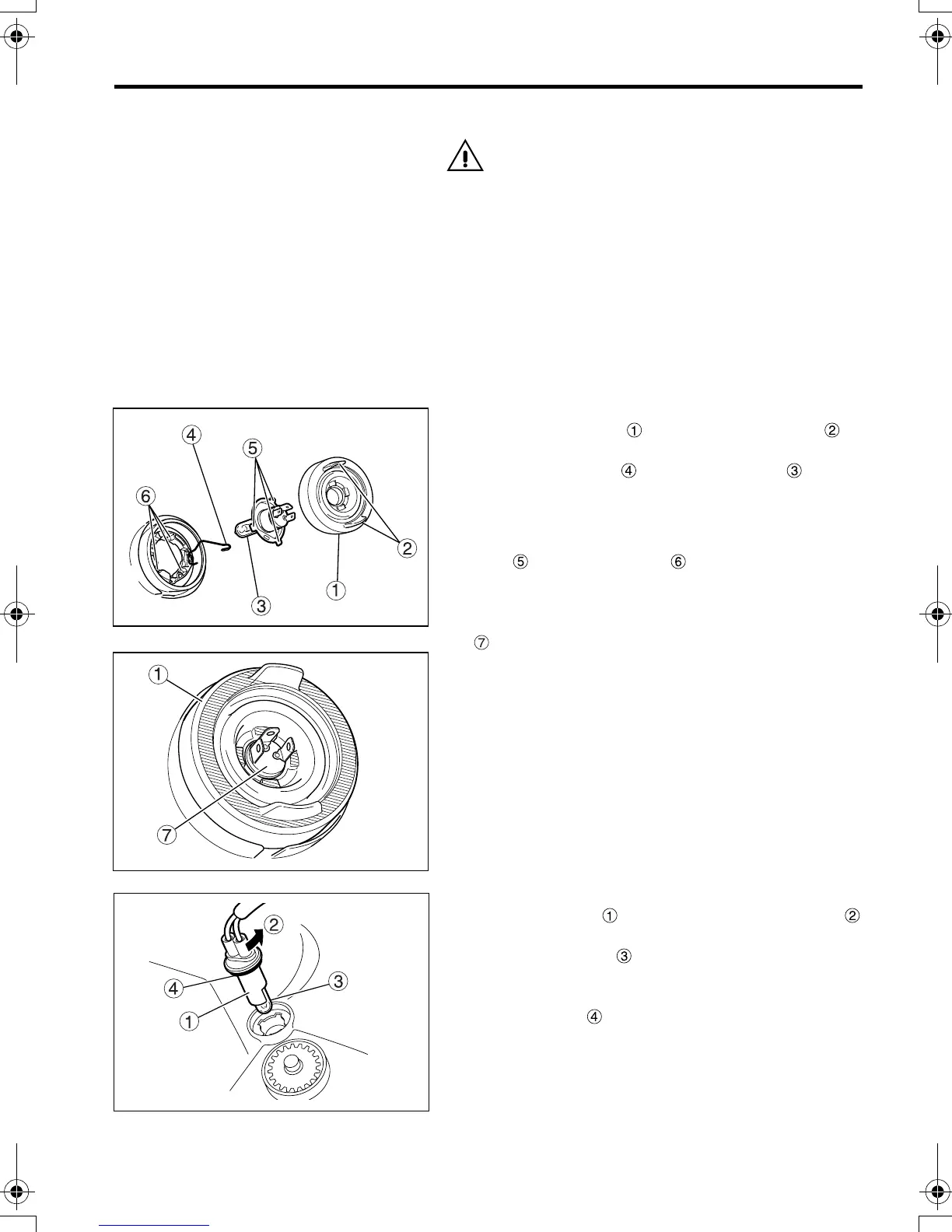

• Removal
1. Remove the cover by pulling on the lugs of
the cover.
2. Detach the spring retaining the bulb .
3. Pull out the bulb.
• Installation
1. Install the bulb in the lamp unit while aligning the
tabs with the grooves , then secure the bulb
with the spring.
2. Clean the inside of the cover, if necessary.
3. Install the cover by pushing it until the bulb end
is exposed a little. Push the shaded area
when installing the cover.
1.3 Parking lamp bulb replacement
1. Turn the socket in the direction of the arrow
to remove it.
2. Remove the bulb .
3. Perform installation by following the removal
steps in reverse.
4. If the packing is dirty, clean it.
