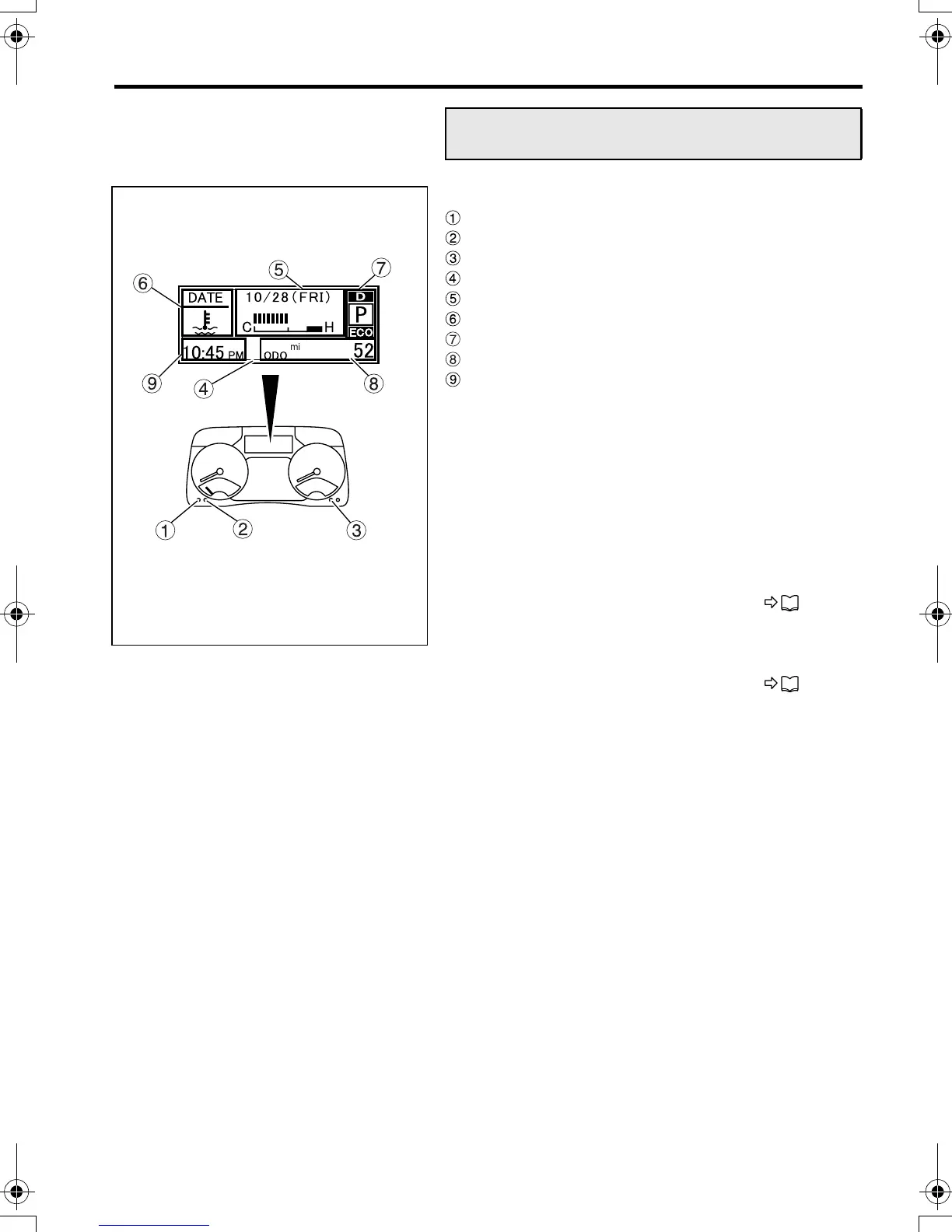

1 Outline of multi-information system
MODE switch
SELECT switch
SET/RES switch
Multi-information display
Information area
Warning/indicator area
Transmission information area
Odometer/trip meter area
Time/outside temperature area (outside temper-
ature indication is available for vehicles with a
fully automatic air conditioner)
The multi-information system indicates the following
types of information on the multi-information display
located on the meter cluster.
• Information area: coolant temperature, amount
of PM in the DPF, and vehicle-related informa-
tion including the maintenance schedule.
• Warning/indicator area: various warnings and
indicators. P. 6-21
• Transmission information area: gear positions
selected by the DUONIC
TM
system and other
transmission-related information.
P. 5-23
• Odometer/trip meter: total running distance and
individual trip distance.
• The MODE, SELECT, and SET/RES switches
are used for selection, setting, and confirmation
on each screen.
Multi-information system
Z21550
