12-64 Simple inspection and service

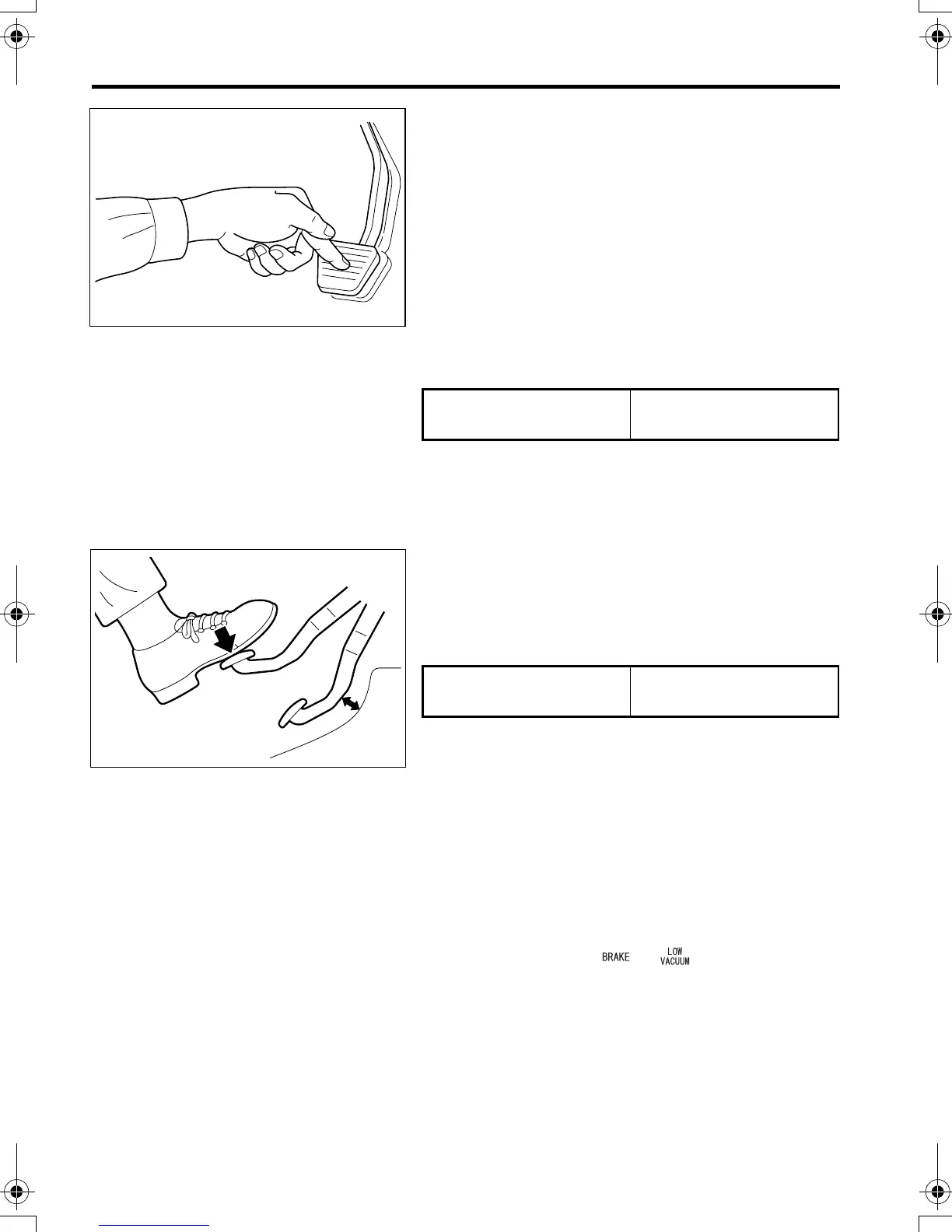

1 Brake pedal play
1. With the engine stopped, turn the starter switch
to the “ON” position.
2. Make sure that the gearshift lever is in the “P”
position.
3. Pump the brake pedal several times to release
all the vacuum from the brake system (zero vac-
uum).
4. Measure the distance over which the brake
pedal moves when the center of the pedal pad is
pressed with light finger force to the point where
resistance is felt (brake pedal play). Check
whether the distance is within specification.
5. If the brake pedal play is not as specified, have
the pedal inspected and adjusted by an autho-
rized dealer.
2 Brake pedal stroke
•
Start the engine and allow it to idle.
• Fully depress the brake pedal. Check whether
the distance between the fully depressed pedal
and the floor is within specification.
• If the pedal-to-floor clearance is insufficient or
the pedal feels spongy when depressed, brake
fluid leakage or presence of air in the brake
hydraulic system may be a cause.
Have the brake system inspected by an autho-
rized dealer if the above conditions are
detected.
3 Braking performance
Perform braking tests in a safe place. After check-
ing that warning lamp or is not illuminated,
drive the vehicle at a low speed to make sure that
braking power is sufficient and even. If braking
seems in any way abnormal, operating the vehicle
could be dangerous. Ask an authorized dealer for a
more thorough inspection.
Brake pedal play
(at center of pedal pad)
0.1 to 3 mm
(0.0039 to 0.12 in.)
Fully depressed brake
pedal to floor clearance
10 mm (0.39 in.) or
more
Z09288
Z11612
