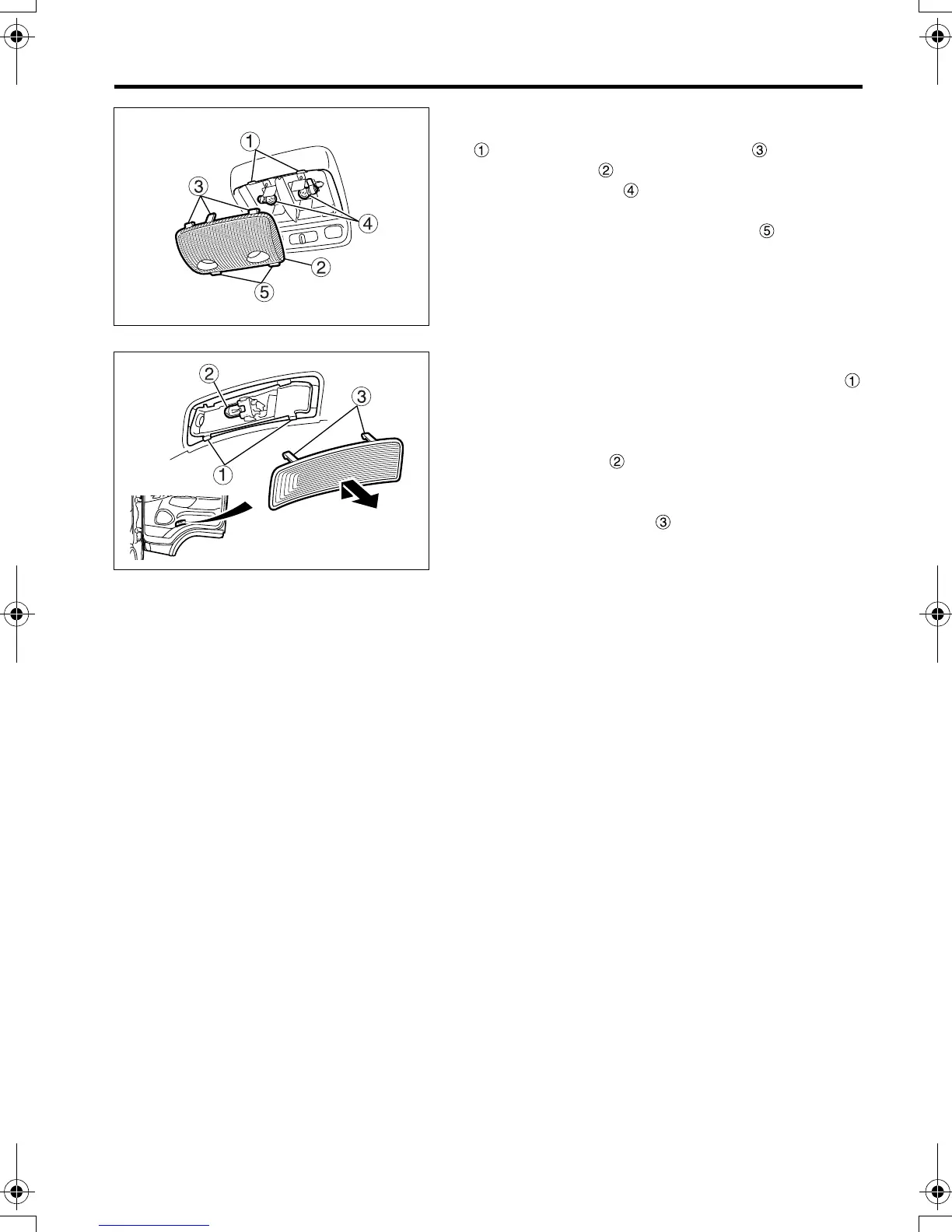

4.2 Type 2 <option>
1. Insert a flat-blade screwdriver into the notches
and use it to release the tabs on the top
end of the lens . Remove the lens.
2. Remove the bulb by turning it counterclock-
wise while pushing inward.
3. Install the lens by inserting the tabs at the bot-
tom end of the lens into the slots and pushing
the lens while aligning the tabs on the top end
with the notches.
5Step lamp
1. Insert a flat-blade screwdriver into the tab
locations at the bottom end of the lens and
remove the lens by pulling it toward you while
raising it.
2. Pull out the bulb .
3. Install the lens by inserting the tabs at the bot-
tom end into the slots and then pushing the
locations of the tabs at the top end of the
lens.
6 Replacing other lamps
1. Loosen the screw that secures the lens then
remove the lens.
2. Turn the bulb counterclockwise while pressing it
and remove it.
3. Insert a new bulb and turn it clockwise.
4. Fit the lens, ensuring that the packing is cor-
rectly positioned. If the packing is incorrectly
installed or twisted, water can enter the lamp
and shorten its life. If the packing is dirty, clean
it.
5. Uniformly tighten the screws that retain the lens.
Z09127
Z09128
