13-21

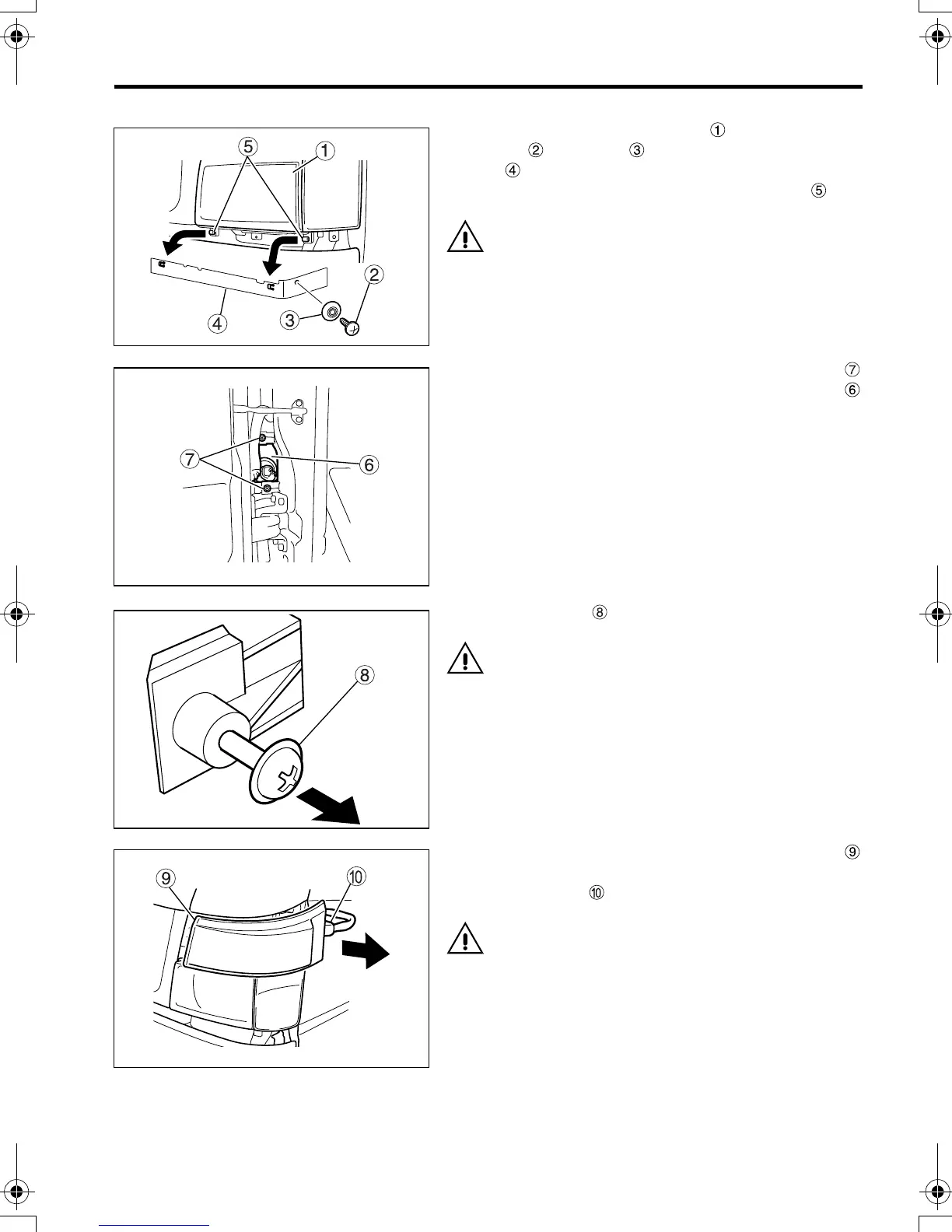

• Headlamp removal
1. For removal of the headlamp , first remove the
screw and rivet , then move the lamp rub-
ber under the headlamp toward the centerline
of the vehicle and release it from the tabs .
CAUTION
When removing the lamp rubber, do not pull it
with excessive force or the tabs could break.
2. Open the door, then loosen the screws
behind the front and side turn signal lamp
until they spin freely.
NOTE:
The screws are designed not to come out.
3. Pull out screw toward you.
CAUTION
Unless the screw is pulled out, the front and
side turn signal lamp will catch on it and you
will not be able to remove them.
4. Close the door.
5. Remove the front and side turn signal lamp
toward the outside of the vehicle, then remove
the connector .
CAUTION
• When removing the front and side turn sig-
nal lamp, do not pull it forward (toward the
front of the vehicle) or its tabs could break.
• Do not open the door with the front and side
turn signal lamp moved outward (but not
completely removed) or the door could hit
and damage it.
Z21428
Z21429
Z11266
Z21430
FE_FG.book Page 21 Tuesday, February 8, 2011 4:00 PM
