Motorola MC32N0 User Manual

Table 20: SE4750-SR Decode Distances
Symbol Density/ Bar Code Type
Typical Working Ranges
Near Far
3.0 mil
Code 39
2.8 in
7.11 cm
6.2 in
15.75 cm
5.0 mil
Code 128
2.3 in
5.84 cm
8.7 in
22.10 cm
5.0 mil
PDF417
3.0 in
7.62 cm
8.1 in
20.57 cm
6.67 mil
PDF417
2.2 in
5.89 cm
10.6 in
26.92 cm
10. mil
Data Matrix
2.4 in
6.10 cm
10.6 in
26.92 cm
100% UPCA 1.6 in
4.06 cm
Note 2
21.6 in
54.86 cm
15 mil
Code 128
2.4 in
6.10 cm
Note 2
21.3 in
54.10 cm
20 mil
Code 39
1.6 in
4.06 cm
Note 2
28.5 in
72.39 cm
Note:
1 Photographic quality bar code at 18° pitch angle under 0.1 fcd ambient illumination.
2 Dependent upon width of bar code.

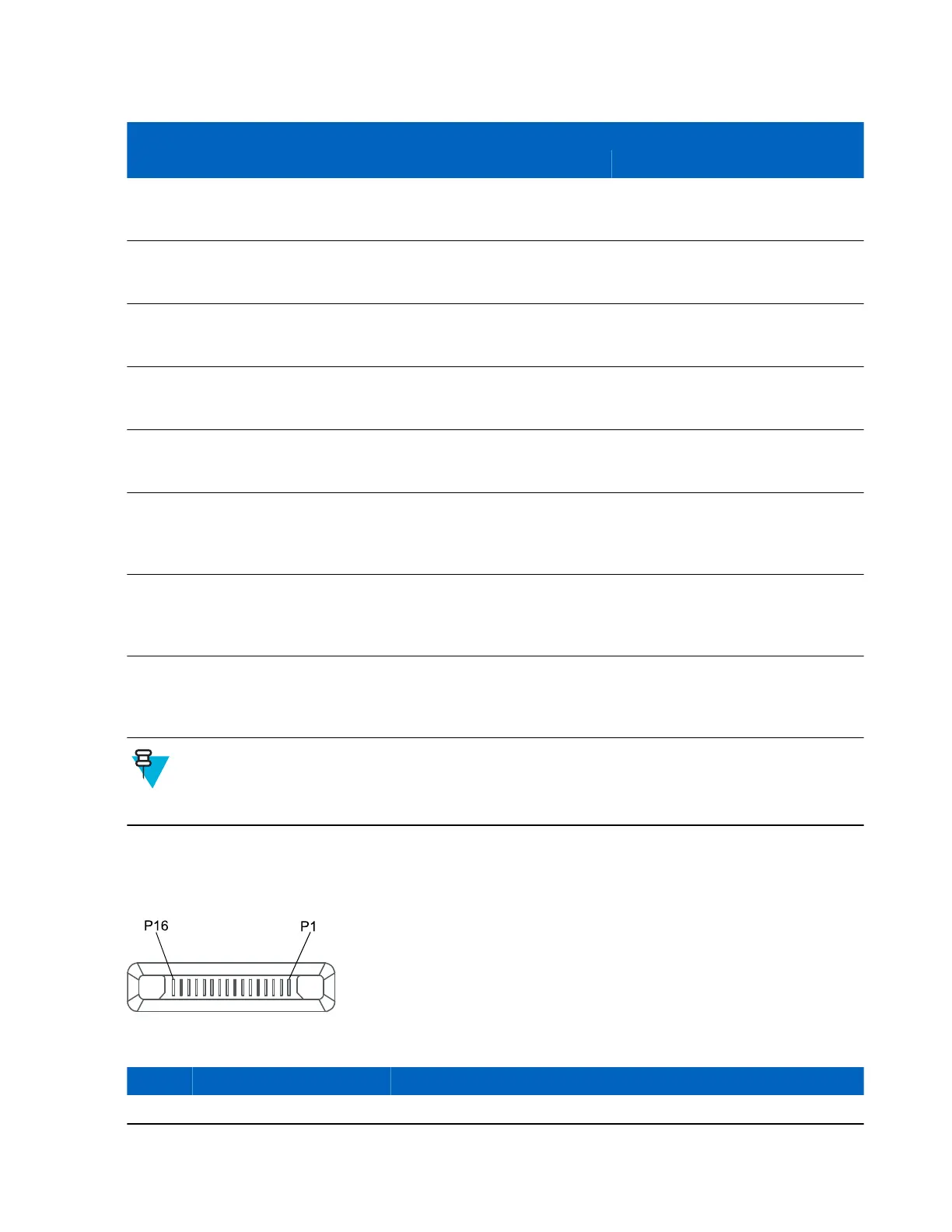

MC32N0 Connector Pin-Out
Figure 137: I/O Connector
Table 21: I/O Connector Pin-Outs
Pin Signal Name Description
1 GND Ground/Return
Table continued…
174 | Technical Specifications
April 2015 | MN000887A01-B
