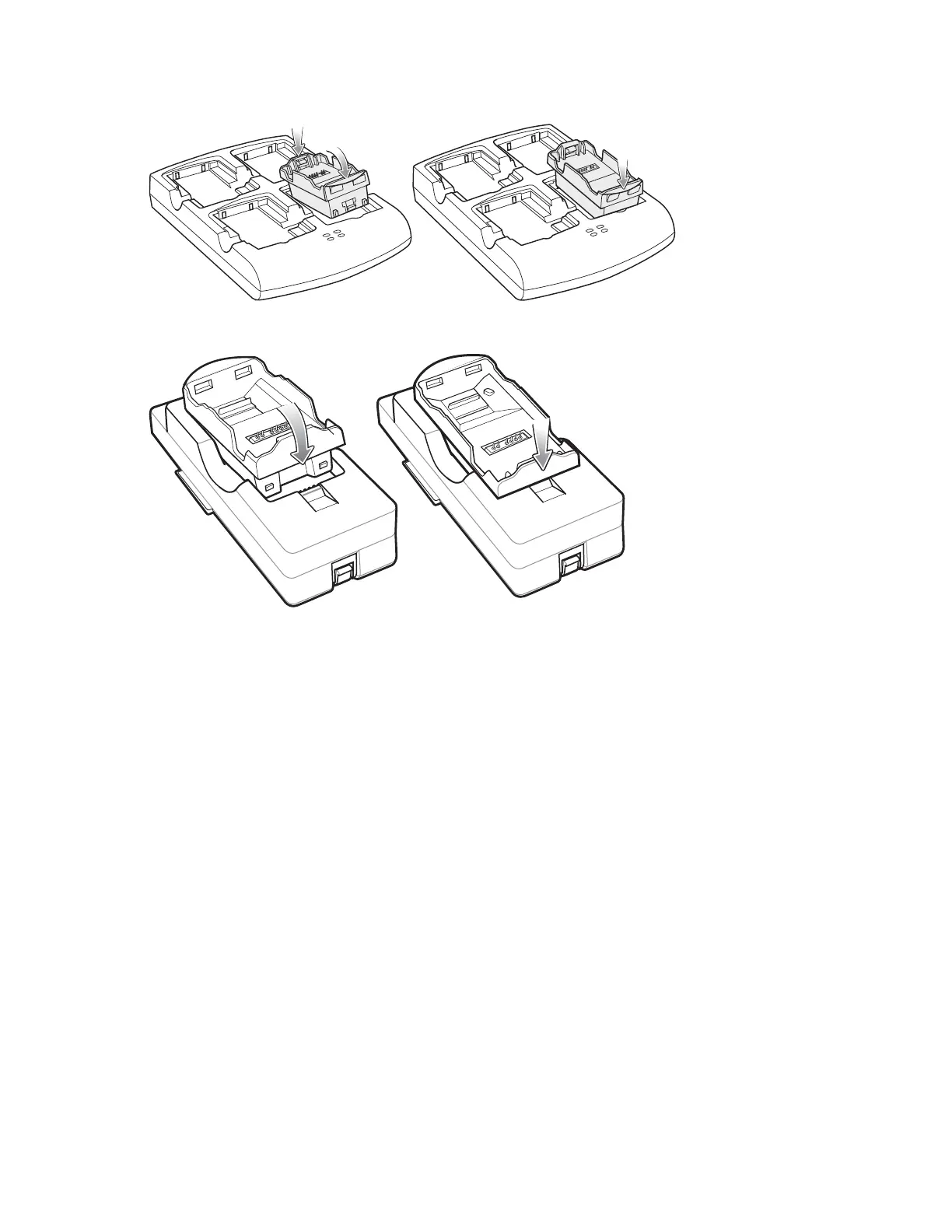

Figure 21: Battery Adapter in Four Slot Battery Charger
Figure 22: Battery Adapter in UBC Adapter
4 Press the Battery Adapter down to ensure that it is properly seated.
5 Reconnect power.
Removing the Battery Adapter
Procedure:
1 Remove power from the cradle or charger.
2 Remove the battery from Battery Adapter.
3 Slide the release latch toward the contact pins.
Accessories | 33
MN000887A01-B | April 2015
