2 Align the Wall Mount Bracket mounting tabs with the mounting slots in the back of the four slot cradle. Slip the
two mounting tabs into mounting slots.
3 Swing the four slot cradle down onto the mounting bracket and align the mounting screws so that they fit into the
screw slots.

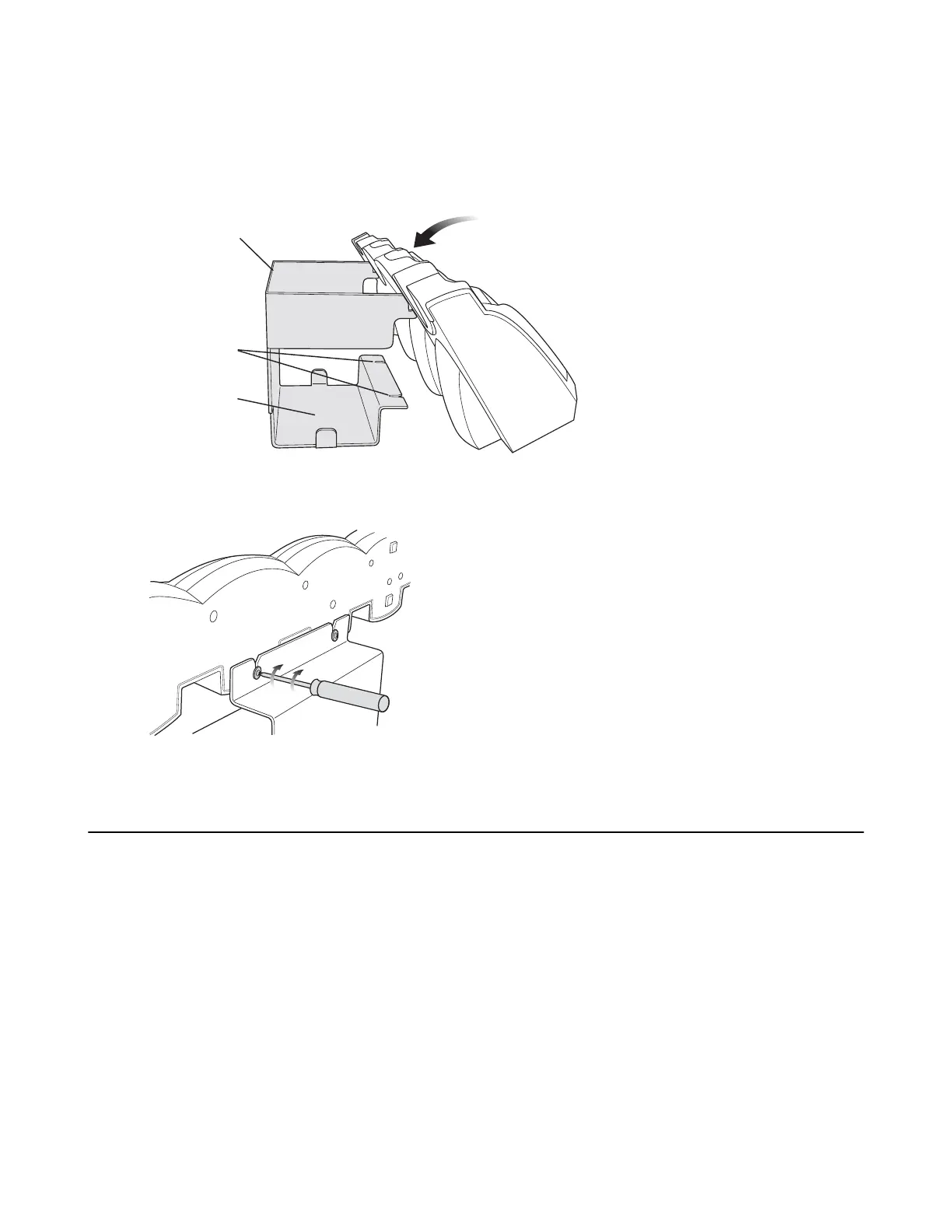

Figure 42: Wall Mount Bracket
Wall Mount
Bracket
Screw Slots
Power Supply
Well
4 Tighten the mounting screws to secure the four slot cradle to the bracket.
Figure 43: Mounting Screws
5 Connect power. The power supply should be located in the power supply well.
MC32N0–G Handstrap Replacement
Procedure:
1 Slip the button through the loop.
