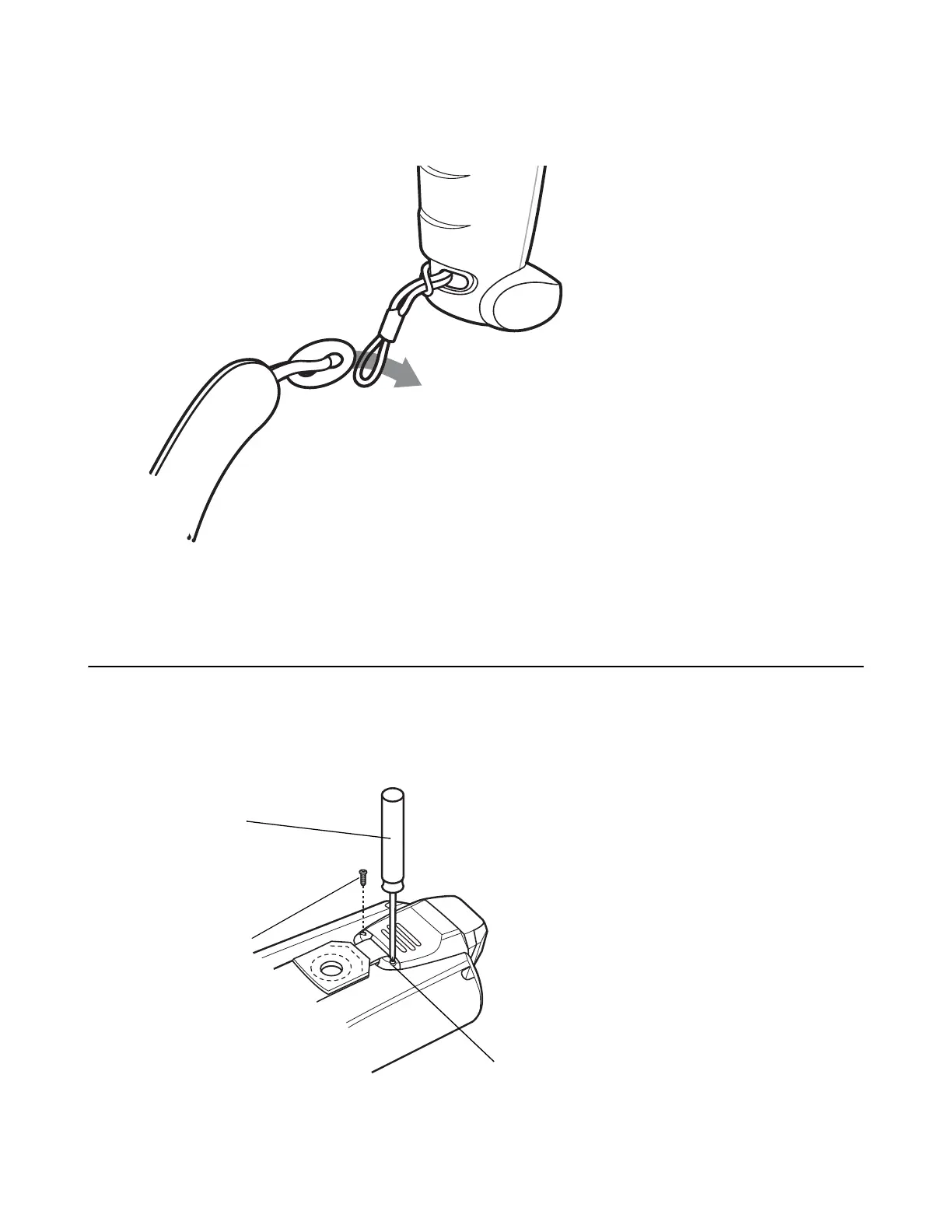

Figure 46: Slip Button Through Loop
7 Thread the end of the handstrap into the slot at the bottom of the device.
8 Press the hook material against the loop material.
MC32N0–S/R Handstrap Replacement
Procedure:
1 Use a #00 Phillips screwdriver to remove two screws.
Figure 47: Remove Mounting Clip
Screws
#00 Phillips
Screwdriver
Mounting
Clip
2 Lift the mounting clip.
3 Slide the mounting clip out of the strap loop.
52 | Accessories
April 2015 | MN000887A01-B
