3 - CONTROLS AND INSTRUMENTS
Forward controls

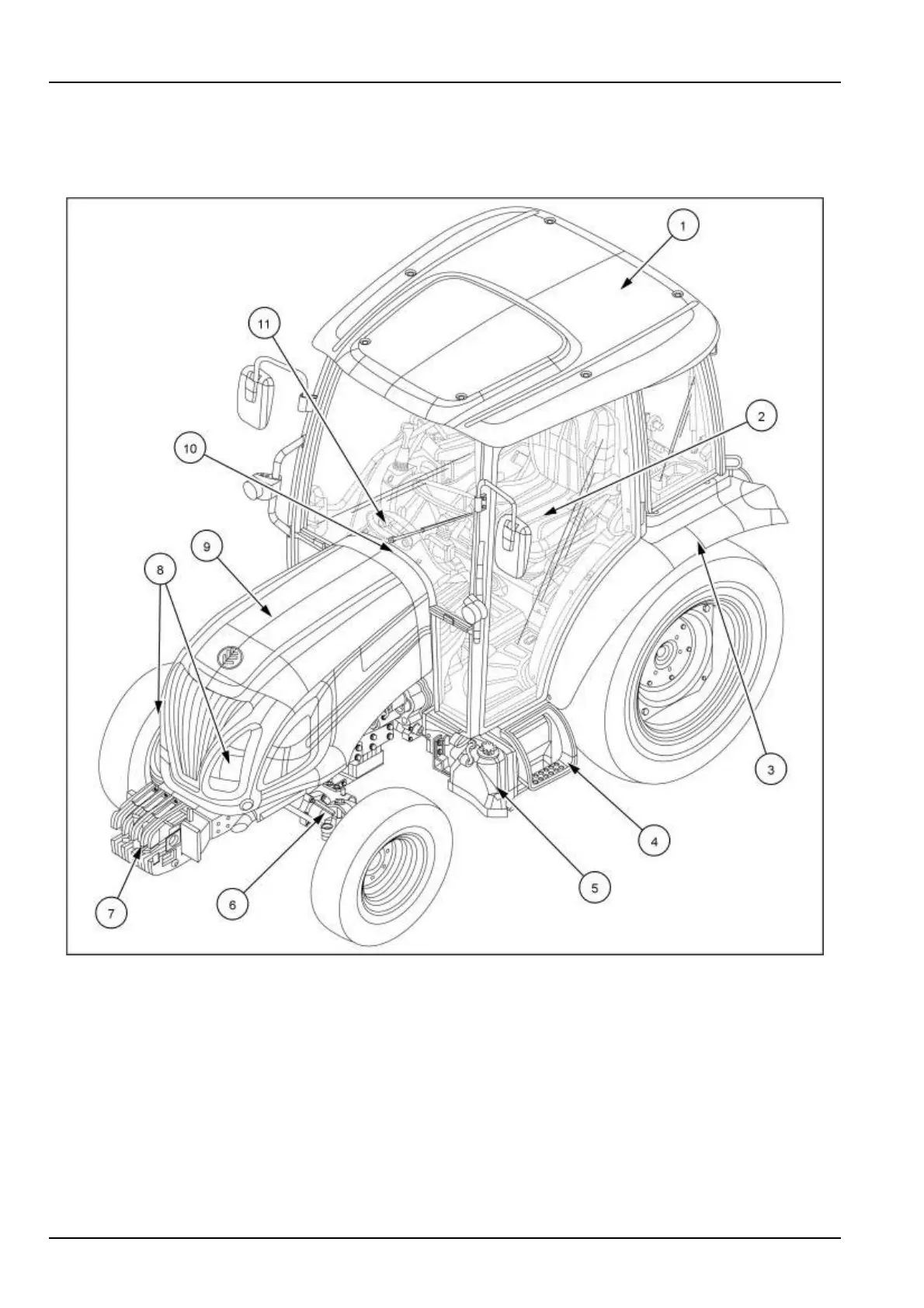

Component location - Cab
NHIL22CT00299GA 1
(1) Cabin (ROPS) (4) Step (7) Front ballast weight
(Optional)
(10) Instrument panel
(2) Operator’s seat (5) Fuel tank (8) Head lights (11) Steering wheel
(3) Fender (6) Front axle (9) Hood
3-10
