3 - CONTROLS AND INSTRUMENTS
Operator's platform access (Cab)
Opening doors from the outside
NOTE: To enter the cabin, release the cabin door lock with the provided key and just pull the cabin door grip outside.
NOTE: To open the left/right cabin door from inside of the cab, push the door release lever outside, and use the grab
handle to push the door outside.

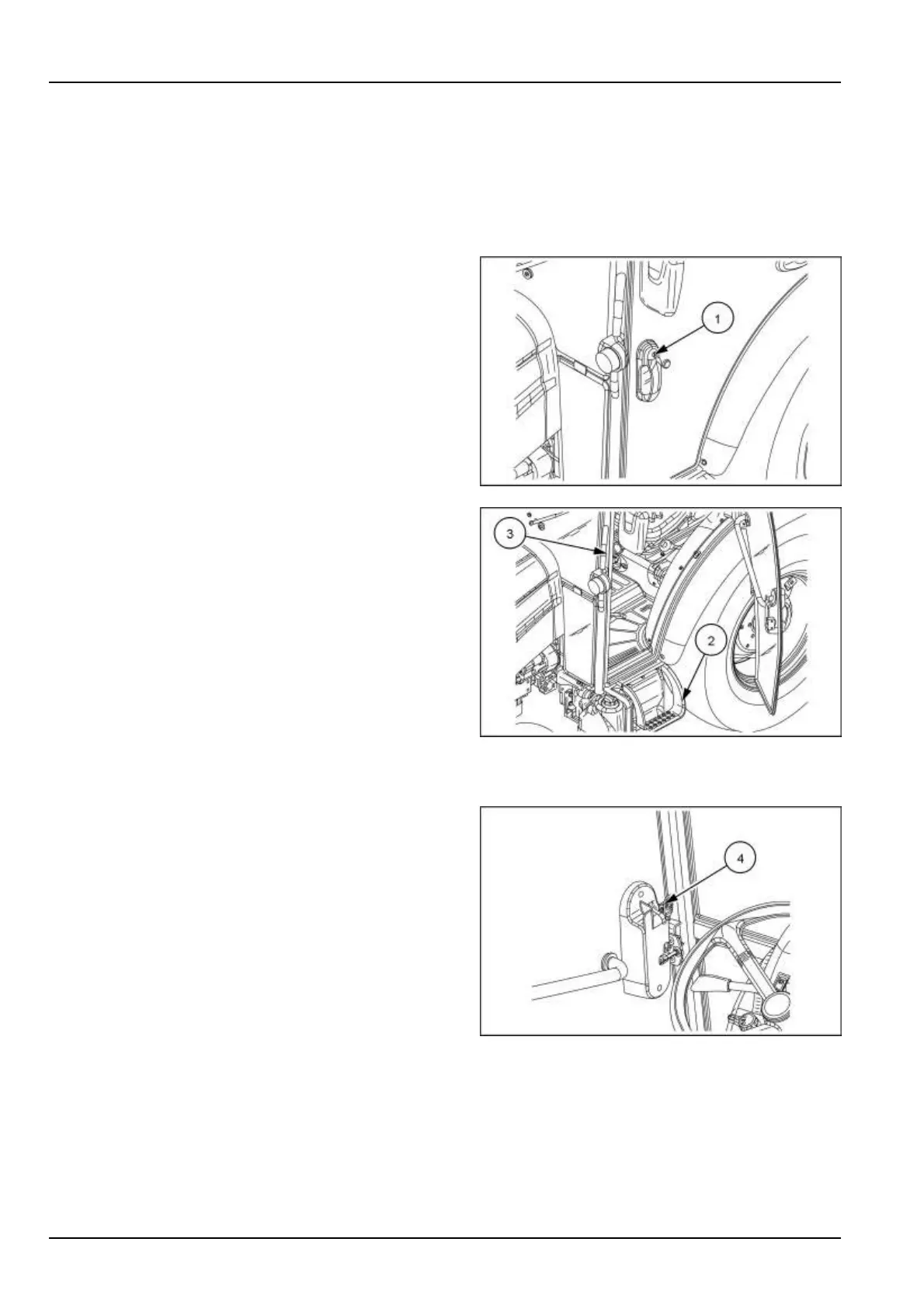

With the door unlocked, press button (1) and pull the door
towards you.
Whenever possible use the left-hand side door to board
the tractor. Use the step (2) and grab handle (3) to aid in
boarding
The opening buttons on both doors are îš¿tted with lock and
key, so the cab can be locked from either side.
NHIL20CT00138AA 1
NHIL20CT00139AA 2
Opening the doors from the inside
Push the lever (4) forward and push door away from you.
NHIL20CT00104AA 3
3-2
