6 - WORKING OPERATIONS

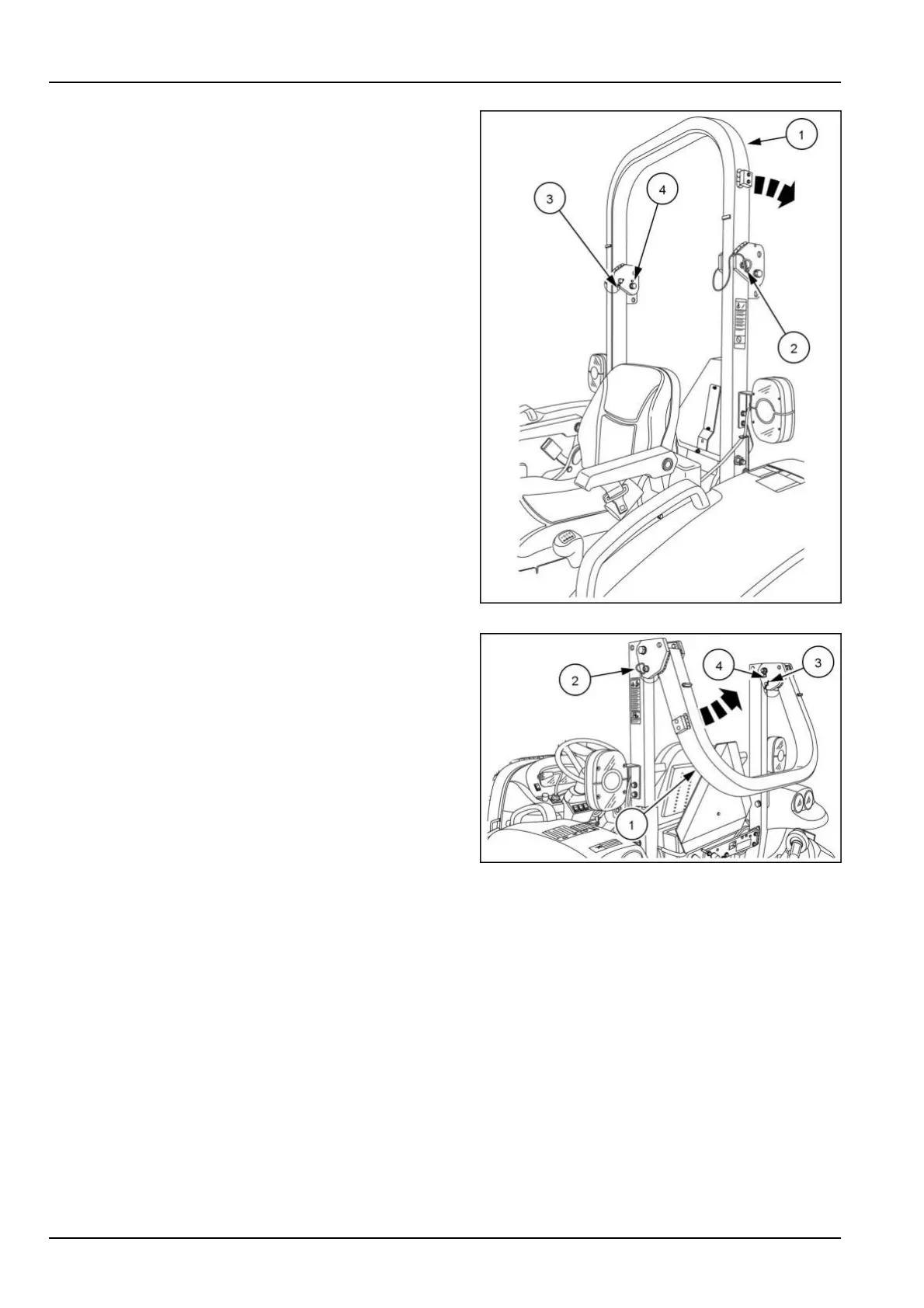

Fold ROPS down
1. Loosen the M6 jam nut on the M6 anti-vibration bolts
(4) on the both sides of the ROPS.
2. Loosen the anti-vibration bolts on both sides.
3. Remove both the quick pins (3) from the locking pins
(2).
4. Support the upper ROPS (1), remove the locking
pins.
5. Roll the upper ROPS down toward rear of the tractor.
6. Install the locking pins in lower position to lock the
upper ROPS in the lowered position.
7. Install the quick pins.
8. Tighten the anti-vibration M6 bolts.
9. Secure the anti-vibration bolts with the M6 jam nuts.
NHIL17CT01126BA 1
Raise ROPS to upright position
1. Loosen the M6 jam nut on M6 anti-vibration bolt (4)
on the both sides of the ROPS.
2. Loosen the anti-vibration bolts on both sides.
3. Remove both the quick pins (3) from the locking pins
(2).
4. Support the upper ROPS (1), remove the locking
pins.
5. Raise the upper ROPS up and toward front of the
tractor.
6. Install the locking pins in upper position to lock the
upper ROPS in the upright position.
7. Install the quick pins.
8. Tighten the anti-vibration M6 bolts.
9. Secure the anti-vibration bolts with the M6 jam nuts.
NHIL17CT01127AA 2
Tractor ballasting
For sufîš¿cient traction and maximum performance in heavy draft operations, and to counterbalance rear-mounted
equipment, add sufîš¿cient weight to the tractor in the form of liquid ballast, cast iron weights, or a combination of
both. Add only enough weight to provide good traction and stability. Adding more weight than is needed results in
unnecessary soil compaction, increased rolling resistance, and higher fuel consumption.
NOTE: When adding weight to the tractor, tire pressures may need to be increased. See 9-2 in this manual.
Front-end ballast may be required for stability and steering control when weight shifts from the front wheels to the rear
wheels as the three point hitch raises an implement.
