7 - MAINTENANCE
Engine belts - Check
WARNING
Rotating parts!
Stop the engine before you inspect and/or adjust the compressor belt. You could be injured by the
rotating cooling fan or by the rotating fan belts.
Failure to comply could result in death or serious injury.
W1363A

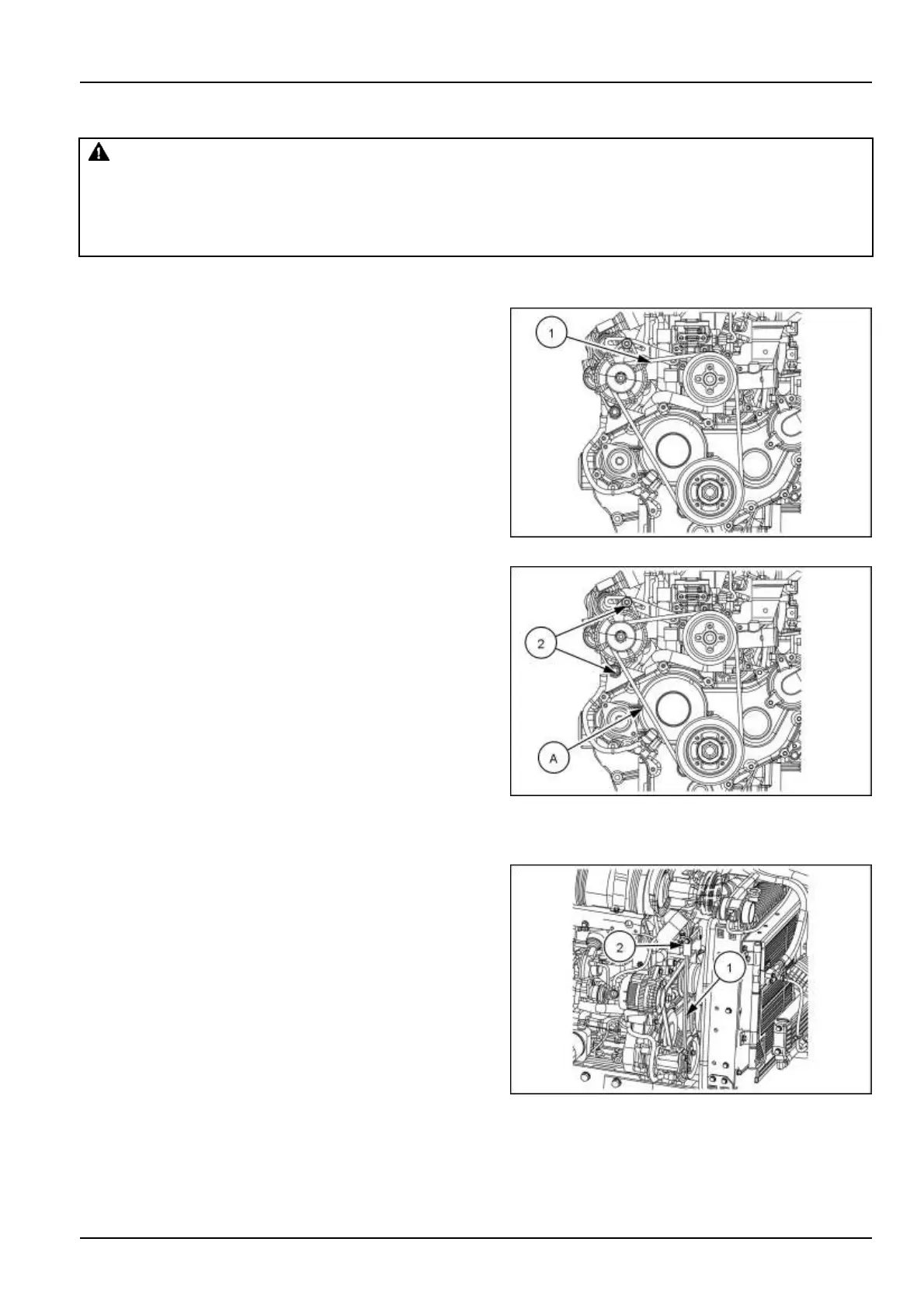

Fan and alternator belt
The belt (1) that drives the cooling fan and alternator is
located at the front of the engine.
When you apply 98 N (22 lb) of pressure midway be-
tween the belt pulleys, a correctly tightened belt will de-
ect 10 – 15 mm (0.4 – 0.6 in) .at point (A).
If the fan belt is slipping, fan efîš¿ciency is lowered, re-
sulting in the engine running too hot, or the alternator
not charging. If the belt is too tight, the life of the alter-
nator bearing will be shortened. If the fan belt shows
signs of cracking or fraying, install a new one.
NHIL16CT00458AA 1
To adjust fan and alternator belt tension:
1. Loosen the two bolts (2) on the alternator, using a
prybar, pull the alternator away from the engine to
apply tension to belt.
2. When proper belt tension is achieved, tighten the
two alternator bolts.
NHIL16CT00458AA 2
Air conditioner compressor belt
The belt (1) that drives the air conditioner compressor
is located at the front of the engine.
When 10 kg (22 lb) of pressure is applied midway be-
tween the belt pulleys, a correctly tightened belt will de-
ect 10 mm (0.4 in) .at point (A).
To adjust air conditioner drive belt tension:
1. Rotate adjustment bolt (2) clockwise to tighten or
counterclockwise to loosen the belt tension.
NHIL16CT00480AA 3
