4 - OPERATING INSTRUCTIONS
16x16 mechanical transmission - Operation - "H" pattern

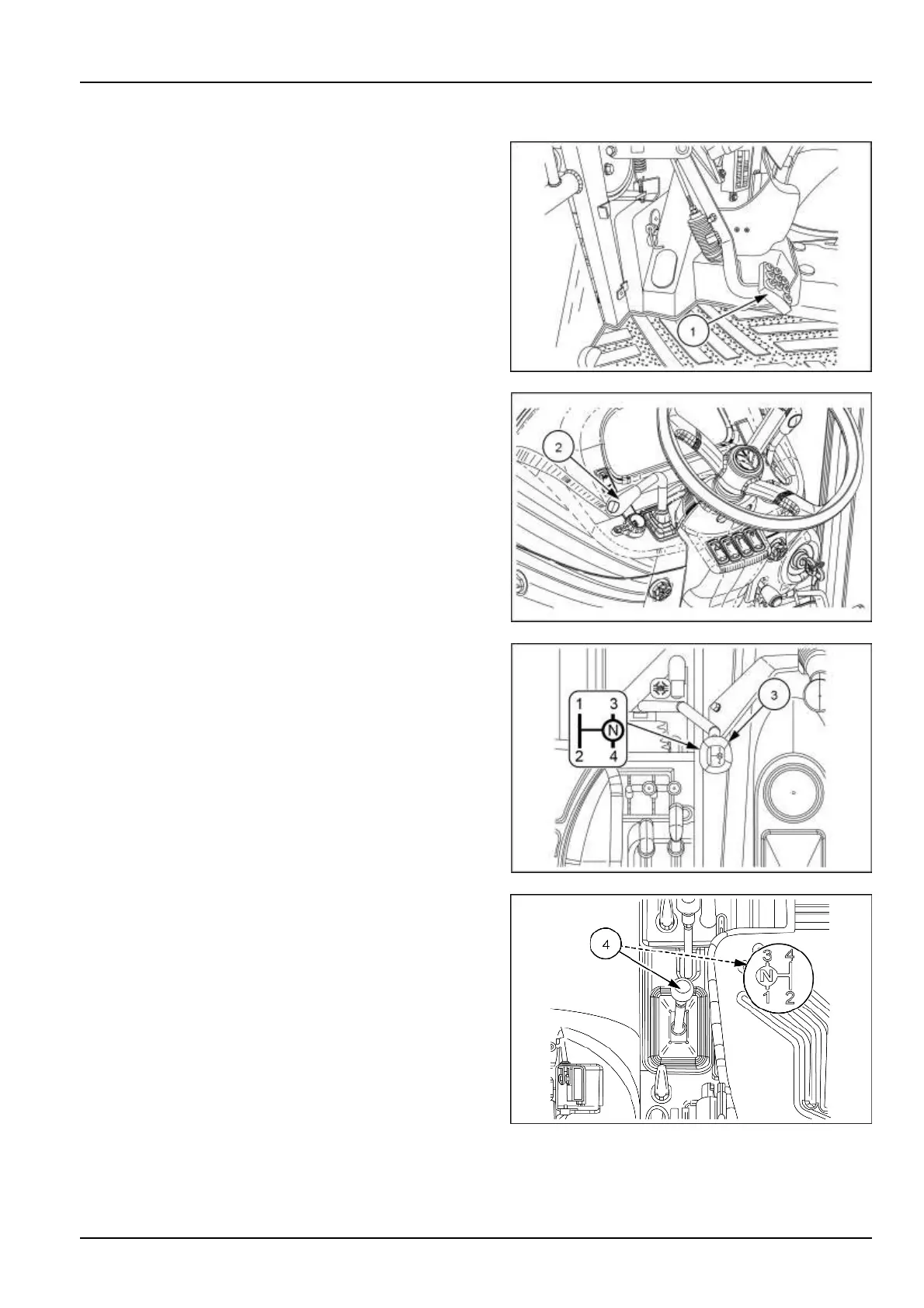

The 16 x 16 gear transmission operates through the use
of a clutch pedal (1) a forward/reverse shuttle shift lever
(2) main transmission shift lever (3) and a range selector
lever (4).
The combinations of shuttle shift, main shift, and range
selector lever offer the operator a combination of sixteen
forward and sixteen reverse gears.
The main transmission shift lever (3) operates in a H-pat-
tern.(1-2-3-N-4) To change gears while in a selected
range, depress the clutch pedal and shift the main gear
shift lever into the desired gear. The tractor does not
have to be stopped because the main speed gears (1-4)
are synchronized. (See îš¿gure 3)
The range gear shift lever (4) operates in a H pattern
(1-2-N-3-4) with a neutral position between îš¿rst and third
range. (See îš¿gure 4)
NOTICE: Never attempt to engage or disengage the
range shift lever when the tractor is in motion.
NOTE: The shift patterns are shown as sitting in the op-
erators seat.
