7 - MAINTENANCE
Headlight bulb
If head lamps, fail to operate, the bulb must be replaced.
To change the bulb:
1. Open the tractor hood.
2. Bulb Removal:
•

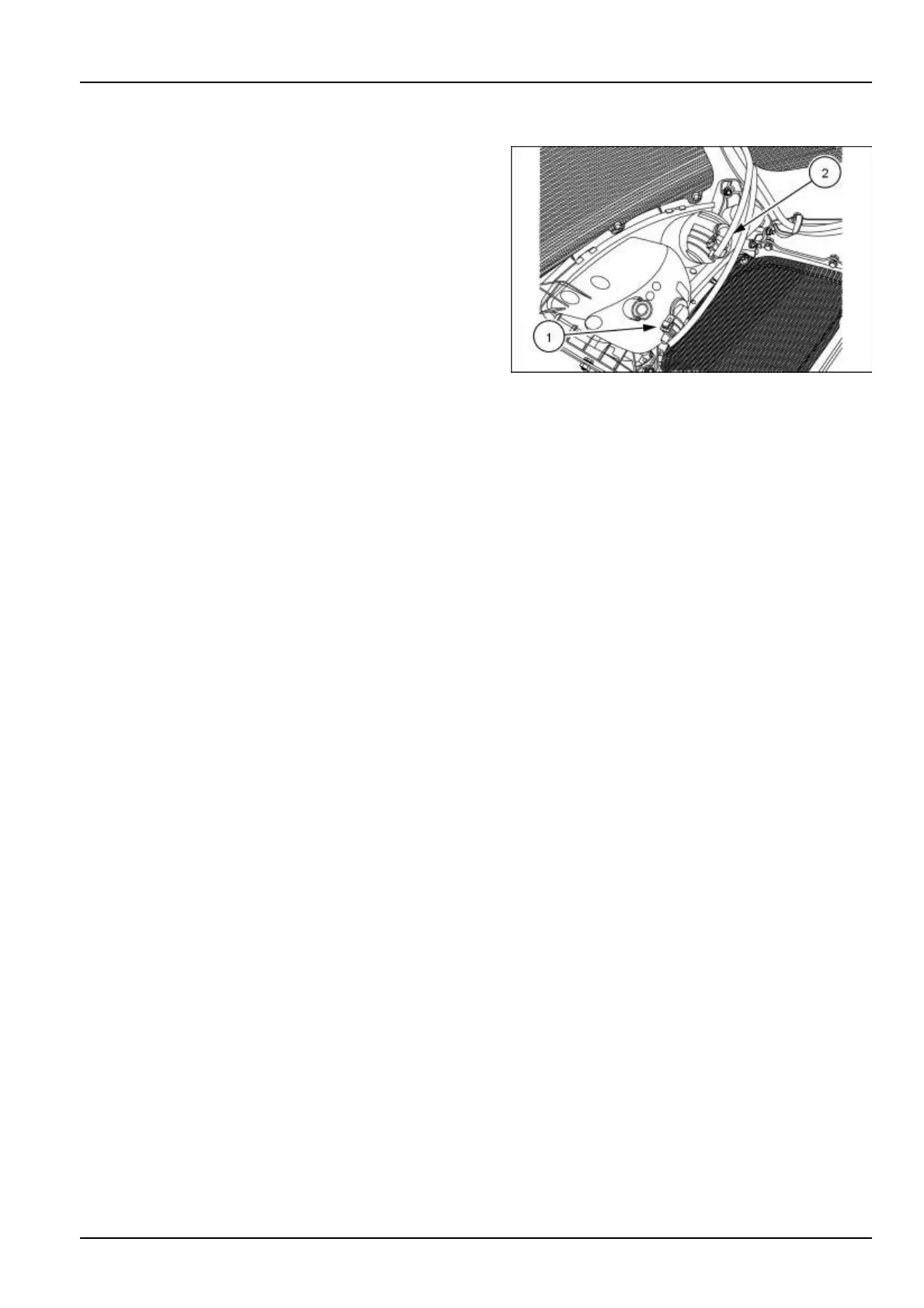

Work (1) and Road lights (2). Turn bulb assembly ¼
turn and remove bulb from holder.
3. Bulb Replacement:
•
Road and Work lights: Insert bulb assembly into
slots and turn ¼ turn clockwise to secure.
4. Rotate the socket counter-clockwise a quarter turn and
remove the socket from the housing.
5. Remove the bulb assembly from the harness.
6. Place a new bulb in the socket, and then install the
socket in the housing.
NOTICE: Be careful not to touch the bulb with bare îš¿ngers.
Oil from the îš¿ngers can shorten the life of bulb. Use pro-
tective cloth or glove when installing bulb.
NOTE: Replacement bulbs are:
Work lights (upper): Bulb size, 27 W, Halogen (Grille).
Work lights (upper): Bulb size, 37.5 W, Halogen (Cab).
Work lights (upper): Bulb size, 27 W, Halogen ROPS.
Road lights (lower): Bulb size, 55 W, Halogen.
93100884 1
7-59
