3 - CONTROLS AND INSTRUMENTS
Mid mount two spool control valve - Cab

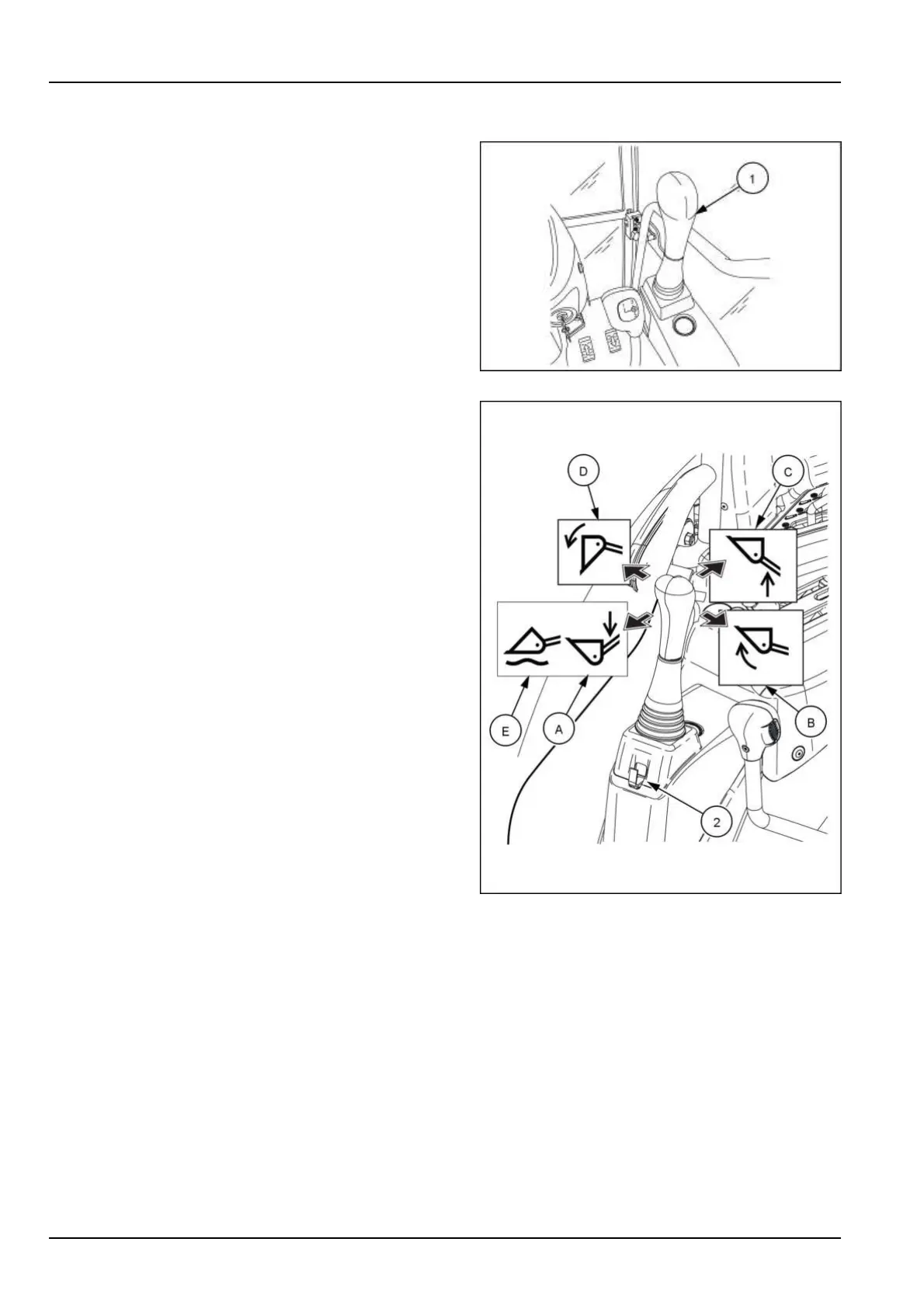

The mid mount two spools control valve levers (1), loca-
tion is to the front of the right-hand control console. The
control valves purpose is for front-end loader operation,
and to operate other front mounted implements.
The control valve is equipped with a linkage lockout (2)
that locks the control valve handle in the neutral position
and does not allow the valve to operate.
To operate the control valve, move the control lever (1)
in any of the four directions. Release the control lever to
stop the cylinder in any position, the lever automatically
returns to neutral.
NHIL15CT00517AA 1
•
Move the control lever forward to lower the loader/re-
tract cylinder (A).
•
Move the control lever to the left to curl the bucket/re-
tract cylinder (B).
•
Move the control lever rearward to raise the loader/ex-
tend cylinder (C).
•
Move the control lever to the right to dump bucket/ex-
tend cylinder (D).
•
Move the control lever fully forward to "FLOAT" position
(E) which allows the loader boom lift cylinders to extend
or retract. This valve position will allow the loader to
follow the ground contour during operation.
NOTE: Do not use the "FLOAT" position (E) if the loader
bucket is off the ground.
NOTE: Push the lockout tab (2) inwards to lock the
valve control lever when the two-spool control valve is
not used.
NHIL15CT00576BA 2
3-64
