3 - CONTROLS AND INSTRUMENTS
Transmission shuttle shift lever
NOTICE: Do not attempt to operate the shuttle lever while
the tractor is moving, it may cause damage to the syn-
chromesh gear. Depress the clutch pedal to stop tractor
motion to operate the shuttle lever.
The transmission shuttle shift lever (1) is located on the
left-hand side of the dash panel on mechanical transmis-
sion model tractors. The shuttle shift lever is used to en-
gage the transmission into forward or reverse mode while
depressing the clutch pedal. Move the lever forward for
forward travel and rearward for reverse travel.
NOTE: The shuttle lever must be in the neutral (middle)
position to activate the safety start system, which allows
the engine to start.

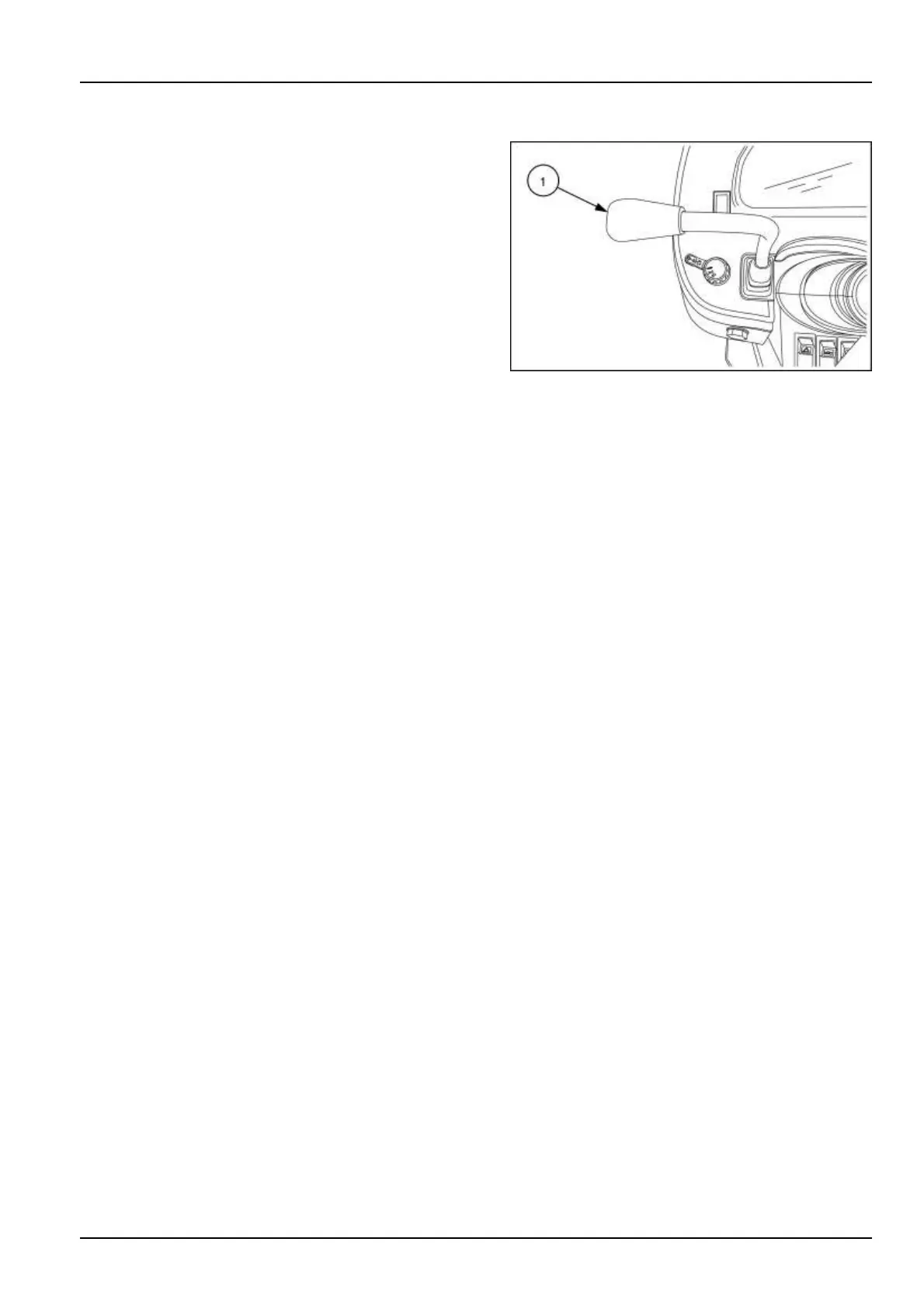

NHIL15CT00596AA 1
