7 - MAINTENANCE
Clutch pedal free play - Check
WARNING
Avoid injury! Always do the following before lubricating, maintaining, or servicing the machine.
1. Disengage all drives.
2. Engage parking brake.
3. Lower all attachments to the ground, or raise and engage all safety locks.
4. Shut off engine.
5. Remove key from key switch.
6. Switch off battery key, if installed.
7. Wait for all machine movement to stop.
Failure to comply could result in death or serious injury.
W0047A
NOTE: Check the clutch pedal free travel after every 50 hours of operation.

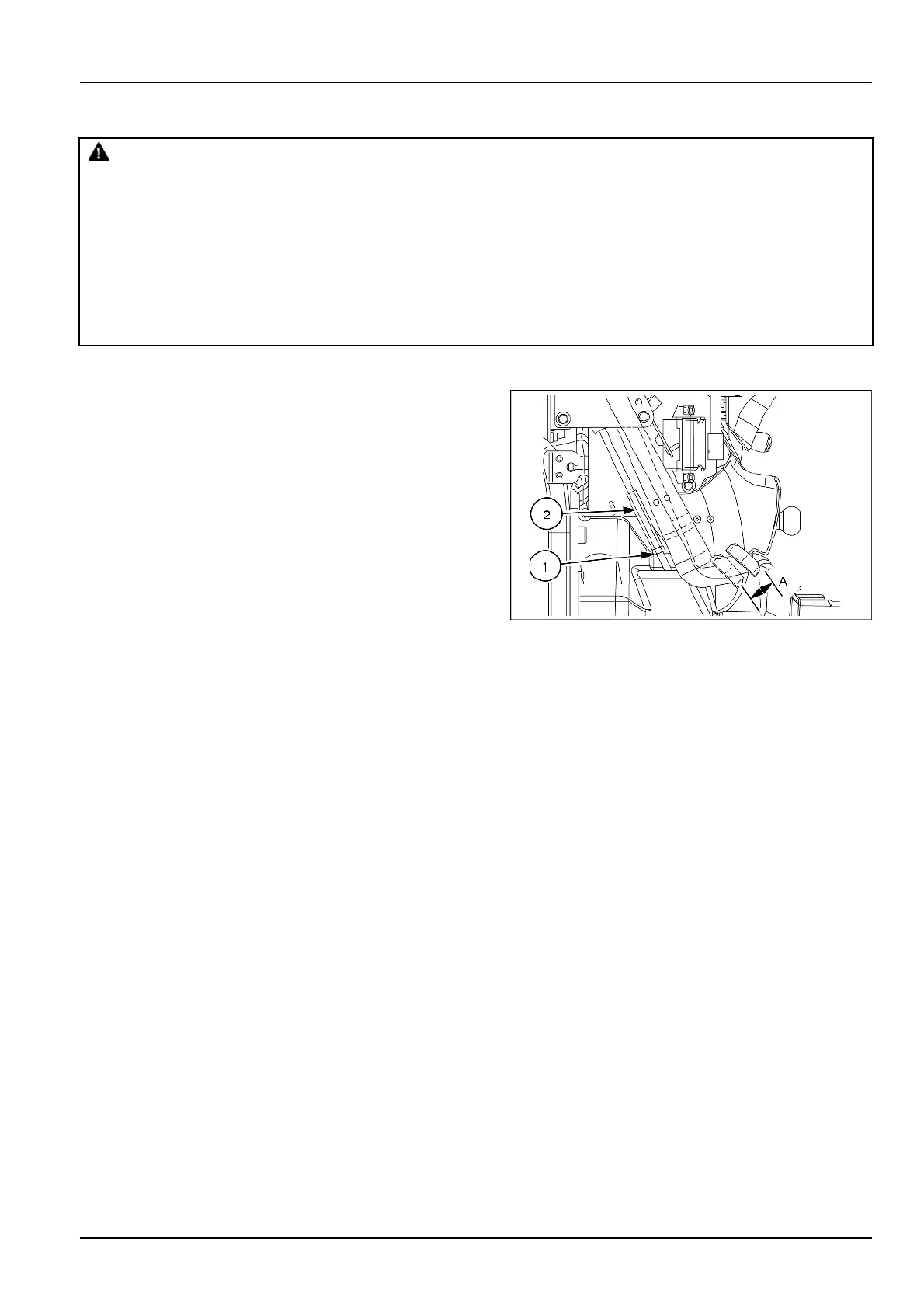

Maintain the clutch pedal free travel as shown at (A) =
20 – 30 mm (0.79 – 1.18 in).
To adjust the clutch pedal, do the following:
1. Loosen lock nut (1) and rotate adjuster (2)
2. Tightening the adjuster will decrease the free play
travel and loosening the adjuster will increase the
free play travel.
3. Tighten the lock nut when the correct free play
travel is obtained
4. Check clutch for disengagement when clutch pedal
is fully depressed.
NHIL16CT00456AA 1
