3 - CONTROLS AND INSTRUMENTS
Exterior controls

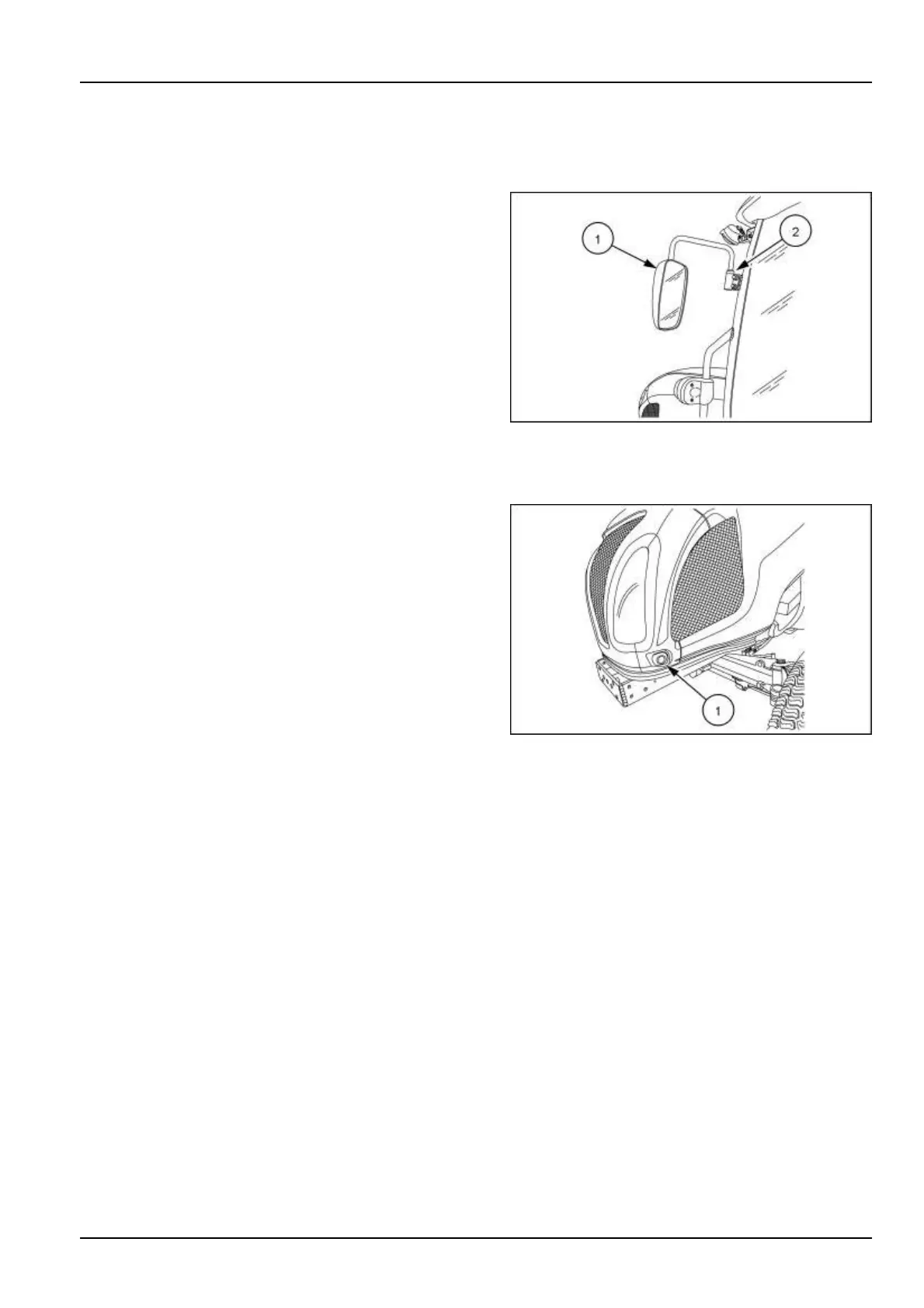

Rear-view outside mirrors
The tractor has mirrors (1) on both right and left hand
sides, mounted on the front of the cab. That can be ad-
justed in two different ways, as described below:
•
Rotate the support bracket (2) on its own axis to adjust
the angle of the mirror.
•
Rotate the mirror (1) to obtain the best rear view.
NHIL15CT00530AA 1
Hood release latch
The latch release button is located on the left-hand side
of the tractor hood.
1. To raise the hood, push the latch release button (1)
inward and lift the hood to its fully raised position. A
gas shock holds the hood in the fully raised position.
2. To close, lower the hood to engage the latch mecha-
nism.
NOTE: Proper operation requires the latch mechanism to
be free of dirt and debris.
NHIL13CT01012AA 1
3-81
