3 - CONTROLS AND INSTRUMENTS
Engine fault code display
Introduction
The following information is intended as a guide to assist in identifying and correcting possible tractor malfunctions
and fault conditions.
Fault codes
Your tractor makes extensive use of electronics to control and monitor major components within the engine and emis-
sions control systems. In the unlikely event of a fault occurring in one of these areas, the malfunction will be identied
with a “sxxxx” (3) and “Fxx” (2) code displayed on the instrument panel. The Warning Lamp (1) will also be illuminated
in amber or red color.
Should a fault occur causing the tractor to become disabled, a fault code will be displayed in the instrument panel.
Contact your authorized NEW HOLLAND dealer and report the fault code displayed.

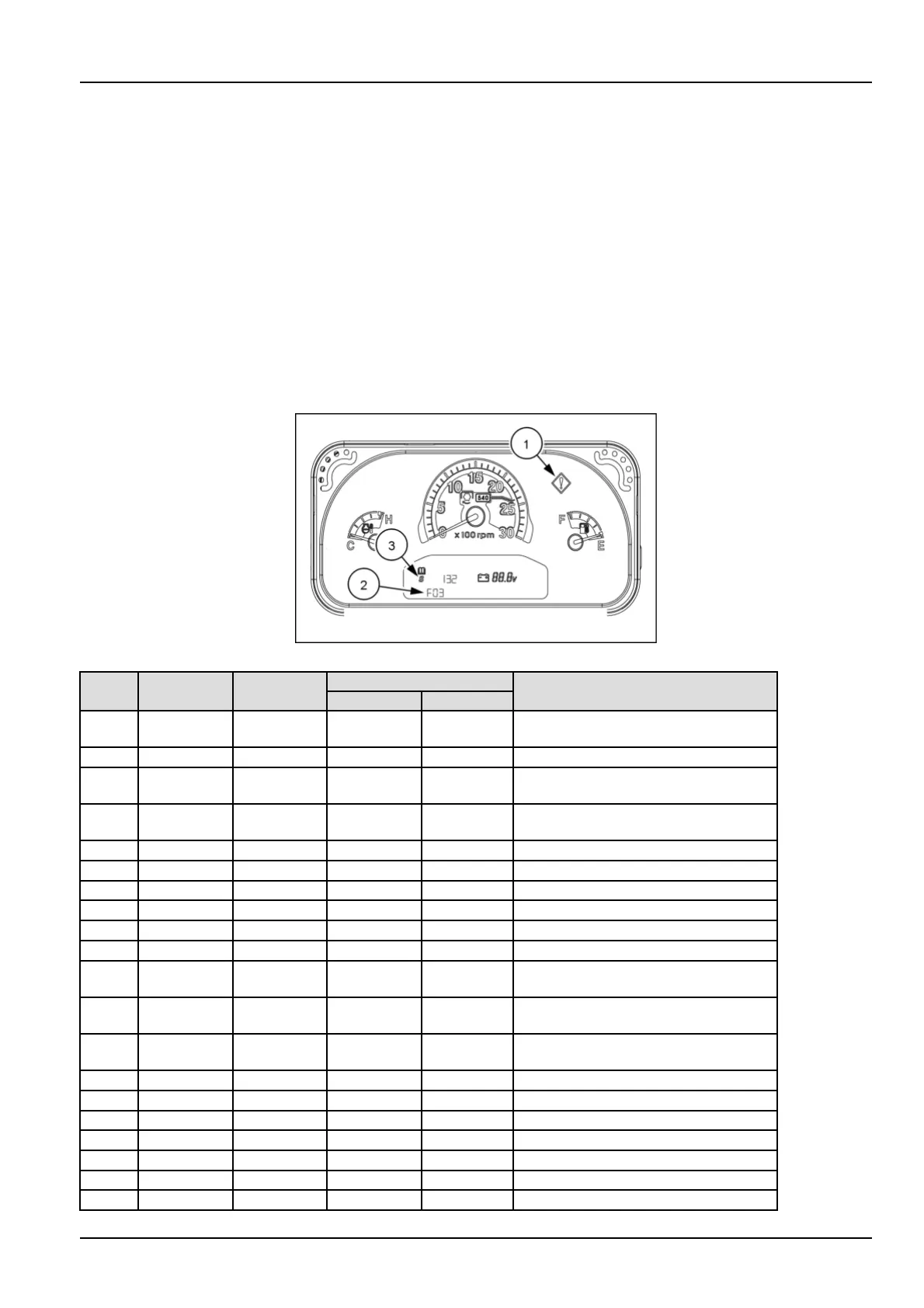

NHILCT1700115AA 1
Warning Lamp
Refer-
ence
Dashboard
Fault Code
Fault Code
Amber Red
Title
1 s629 F12 P060B
Solid on or
1 Hz
Analog Digital Converter (ADC)
Circuit Fault inside of ECU
2 s132 F31 P0100 Solid on
Air Mass Flow (AMF) Sensor Failure
3
s132 F00
s132 F01 P0101 Solid on
Air Mass Flow (AMF) plausibility fault
4 s132 F03 P0103 Solid on
Air Mass Flow (AMF) Sensor high
fault
5 s132 F04 P0102 Solid on
Air Mass Flow (AMF) Sensor low fault
6 s637 F02 P0341 Solid on Solid on
Cam signal drift fault
7 s637 F10 P0340 Solid on
Cam signal learn fault
8 s636 F02 P0371 Solid on
Crank signal early fault
9 s636 F02 P0374 Solid on
Crank signal lost fault
10 s636 F02 P0372 Solid on
Crank signal missing fault
11
s636 F02
s636 F11 P0335 Solid on Solid on
Crank over speed / gap lost fault
12 s108 F03 P2229 Solid on
Atmospheric pressure sensor high
fault
13 s108 F04 P2228 Solid on
Atmospheric pressure sensor low
fault
14 s168 F03 P0563 Solid on
Battery voltage high fault
15 s168 F04 P0562 Solid on
Battery voltage low fault
16 s651 F31 P0262 Solid on
Injector 1 resistance high fault
17 s653 F31 P0268 Solid on
Injector 2 resistance high fault
18 s654 F31 P0271 Solid on
Injector 3 resistance high fault
19 s652 F31 P0265 Solid on
Injector 4 resistance high fault
20 s651 F31 P0261 Solid on
Injector 1 resistance low fault
3-19
