7 - MAINTENANCE
Rear tail/brake/hazard/turn signal bulbs

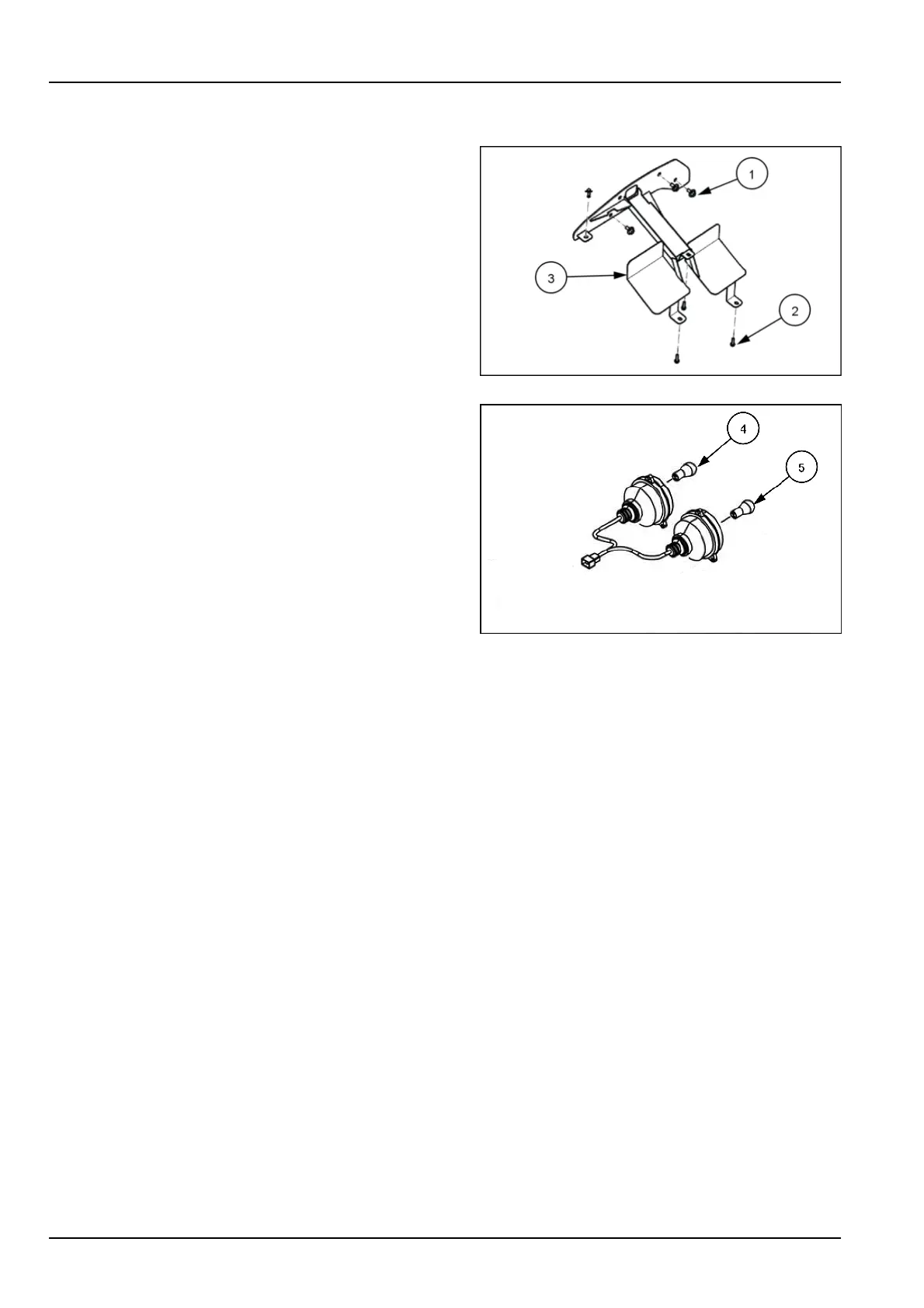

To replace a taillight/hazard bulb:
1. Remove the four M6x16mm bolts (1) and three screws
(2), that retain the taillight shield (3) to the underside of
the rear fender.
2. Cut plastic wire tie from the shield and remove shield
from the fender.
NHIL15CT00598AA 1
3. Push in on the brake/tail or bulb (4) or turn signal/haz-
ard bulb (5) and rotate counter-clockwise in the socket
to remove the old bulb.
4. Insert the new bulb into the socket and turn the bulb in
a clockwise direction until tightened.
NOTE: Replace brake/tail bulb (4) with a single îš¿lament
12 V, 21 W bulb and turn signal bulb (5) with a single îš¿la-
ment 12 V, 21 W bulb.
5. Install the taillight shield to the rear fender.
6. Install a new plastic wire tie onto taillight shield to retain
rear lights wiring harness.
NHIL15CT00599AA 2
7-60
