7 - MAINTENANCE
Transmission uid - Change
WARNING
Maintenance hazard!
Before you start servicing the machine, always attach a DO NOT OPERATE warning tag to the machine
in a visible area.
Failure to comply could result in death or serious injury.
W0004B
Changing the transmission, rear axle and hydraulic system oil level
NOTE: Change the transmission, rear axle, and hydraulic system oil after every 600 hours of operation.
NOTE: During cold weather operation, tractor change the hydraulic oil to MULTI-SEASON HYDRAULIC TRANSMISSION
OIL SAE 0W-20. The F200Aoil is a multi-viscosity oil, which has improved ow characteristics in low temperatures
and can be used year round.

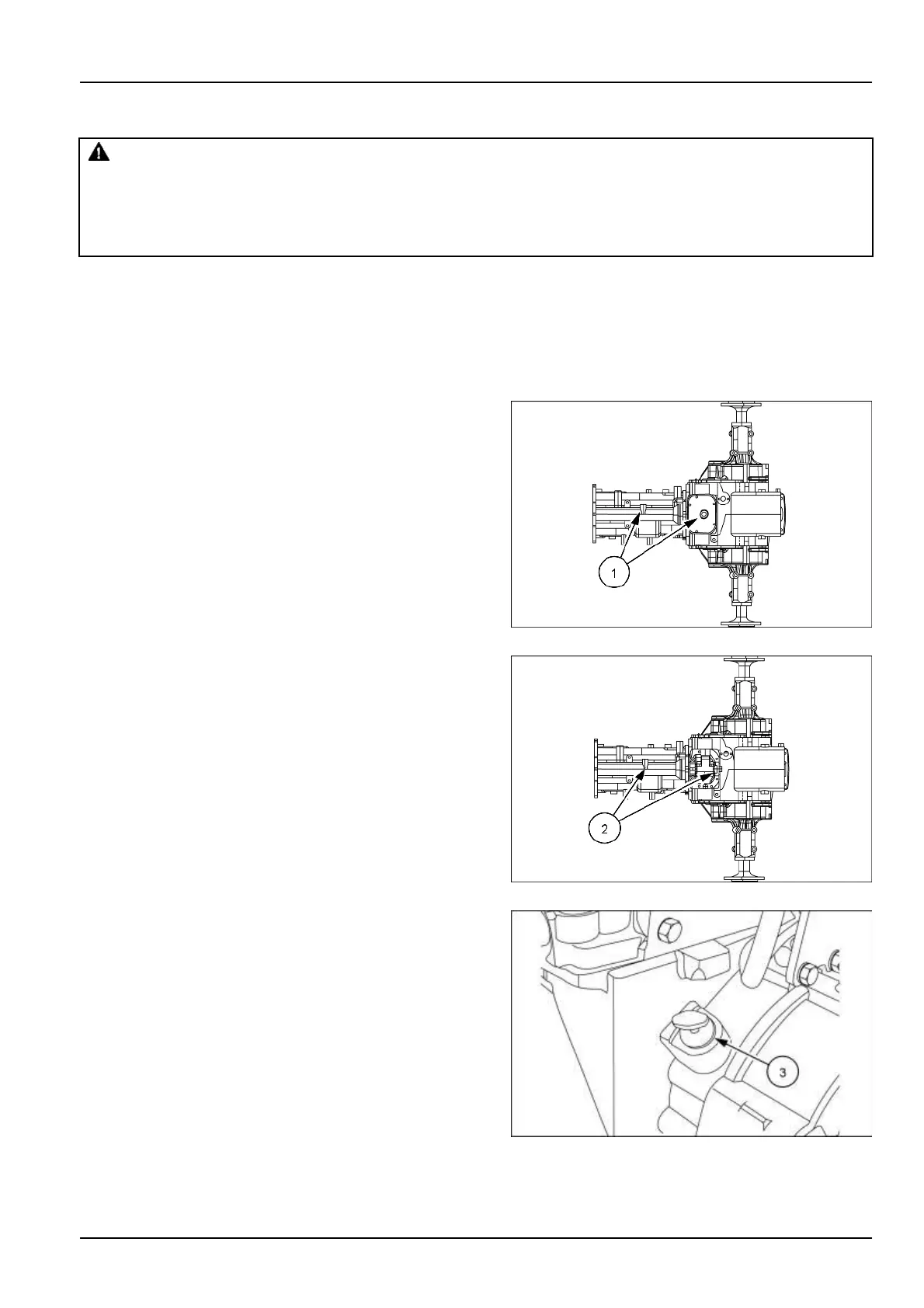

1. Place a suitable container beneath the transmission
and rear axle drain plugs (1) (without Mid PTO) and
(2) (With Mid PTO) to catch the used oil. With the oil
at normal operating temperature, drain the system by
removing the transmission and rear axle drain plugs.
Reinstall the plugs once the oil has drained. Discard
the used oil.
93100871 1
93100872 2
2. Remove the dipstick (3) and îš¿ll with MULTIGRADE 134â„¢
(SAE 10W-30) hydraulic oil. The transmission is îš¿lled
to the correct level when the oil registers between the
two marks on the dipstick.
Capacity:
•
Mechanical transmission ...............See 7-11
•
HST transmission .............See 7-11
3. Install the dipstick.
NOTICE: There is a common sump for the transmission,
rear axle, and hydraulic system. Take extra care to keep
the oil clean
93099360 3
7-47
