7 - MAINTENANCE
Front wheels toe-in
WARNING
Crushing hazard!
Before performing service under the machine, park the machine on a level surface, engage the parking
brake, and stop the engine. Put blocks at the front and rear of the tires.
Failure to comply could result in death or serious injury.
W0350A

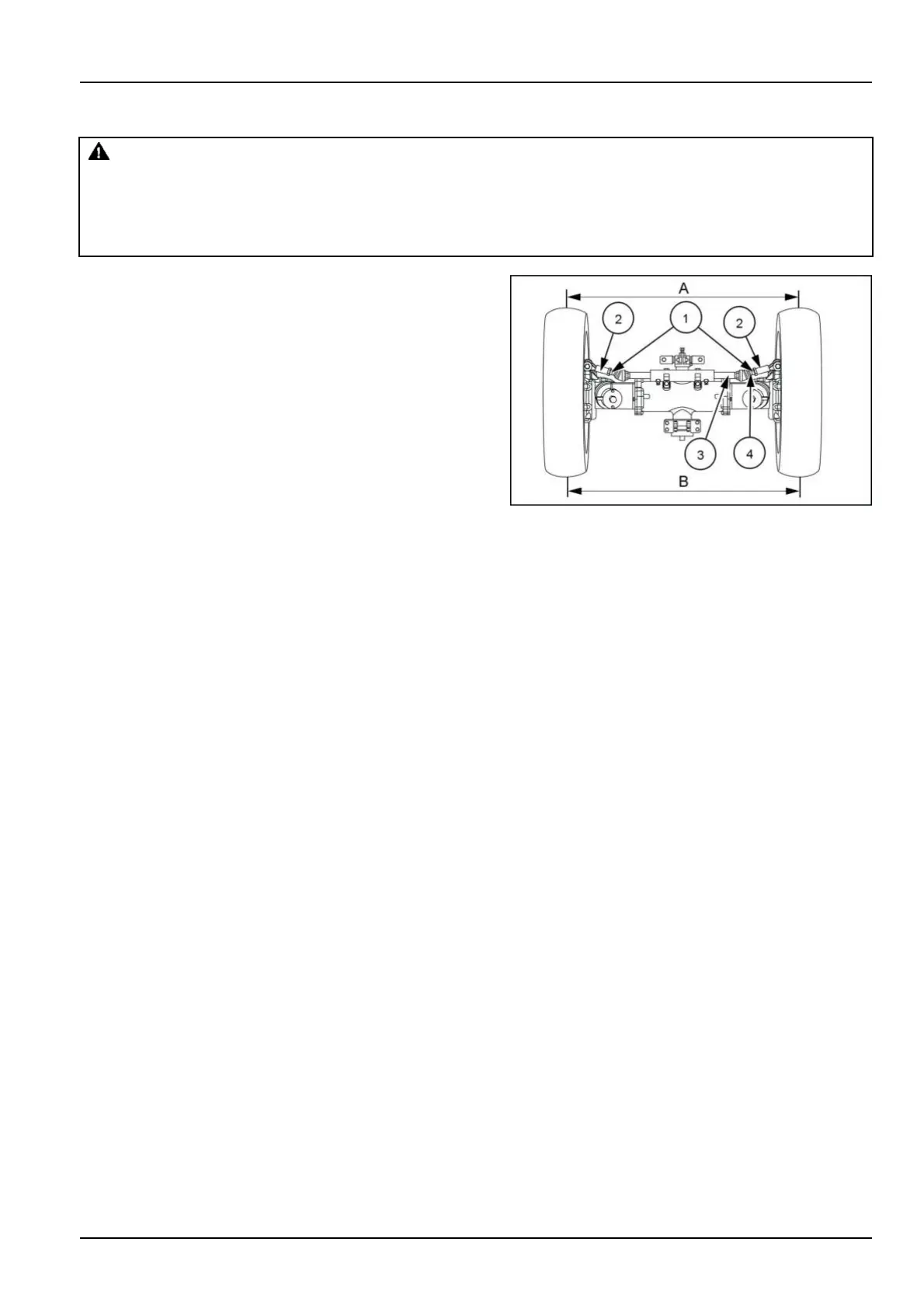

If toe-in is not correct, adjust as follows:
•
Loosen the tie rod locknuts (1).
•
Adjust the tie rod tube assembly (2) as required to
give 0 – 5 mm (0 – 0.2 in) toe-in.
•
Hold the steering cylinder (3) and turn the adjuster
(4) clockwise, the toe-in ( (B) (A)) will be increased.
•
Adjust the opposite side the same amount of turns.
•
After you obtain the correct toe-in, tighten the tie rod
locknuts.
NOTE: Contact your local dealer.
NHIL22CT00057AA 1
