3 - CONTROLS AND INSTRUMENTS
Transmission main shift lever - Cab
Mechanical transmission model

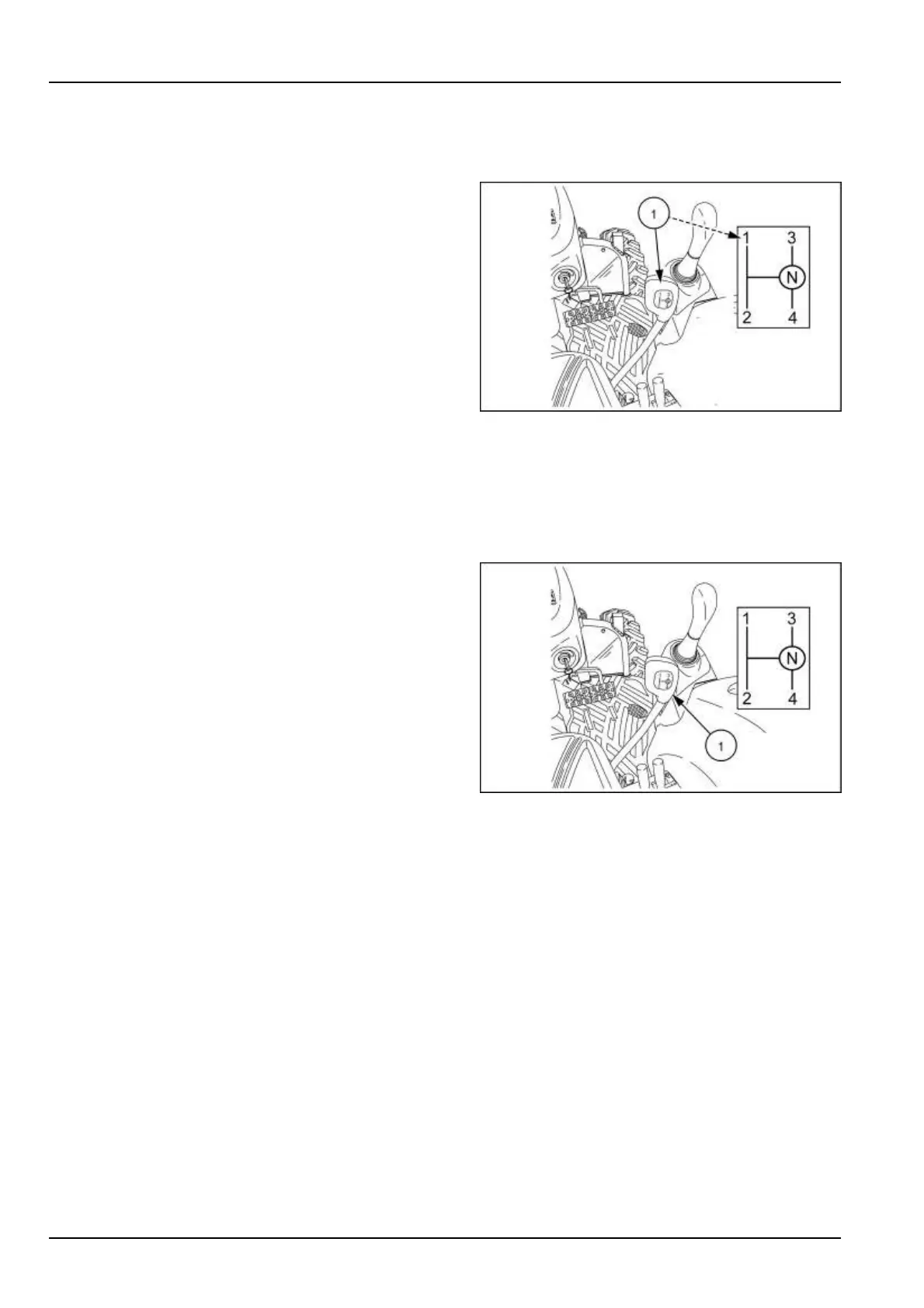

The transmission main gearshift lever (1) is located on the
right-hand side of the operator’s platform, its purpose is to
select any one of the four forward or reverse gears.
With the combination of the shuttle shift, main shift, and
range selector lever offer the operator a combination of
sixteen forward and sixteen reverse gears.
The transmission shift lever operates in an H-pattern.
To change gears while in a selected range, depress the
clutch pedal and shift the main gearshift lever into the
desired gear. The tractor movement during this opera-
tion does not damage the transmission, because of the
synchronization of the main shift gears.
NHIL13CT01355AA 1
Transmission main shift lever - Roll Over Protective Structure
(ROPS)
Mechanical transmission model
The transmission main gearshift lever (1) is located on the
right-hand side of the operator’s platform, selects any one
of the four forward or reverse gears.
With the combination of the shuttle shift, main shift, and
range selector lever offer the operator a combination of
twelve forward and twelve reverse gears.
The transmission shift lever operates in a H-pattern. To
change gears while in a selected range, depress the
clutch pedal and shift the main gearshift lever into the
desired gear. The tractor movement will not damage the
transmission, because the main shift gears are synchro-
nized.
NHIL13CT01355AA 1
3-68
