3 - CONTROLS AND INSTRUMENTS

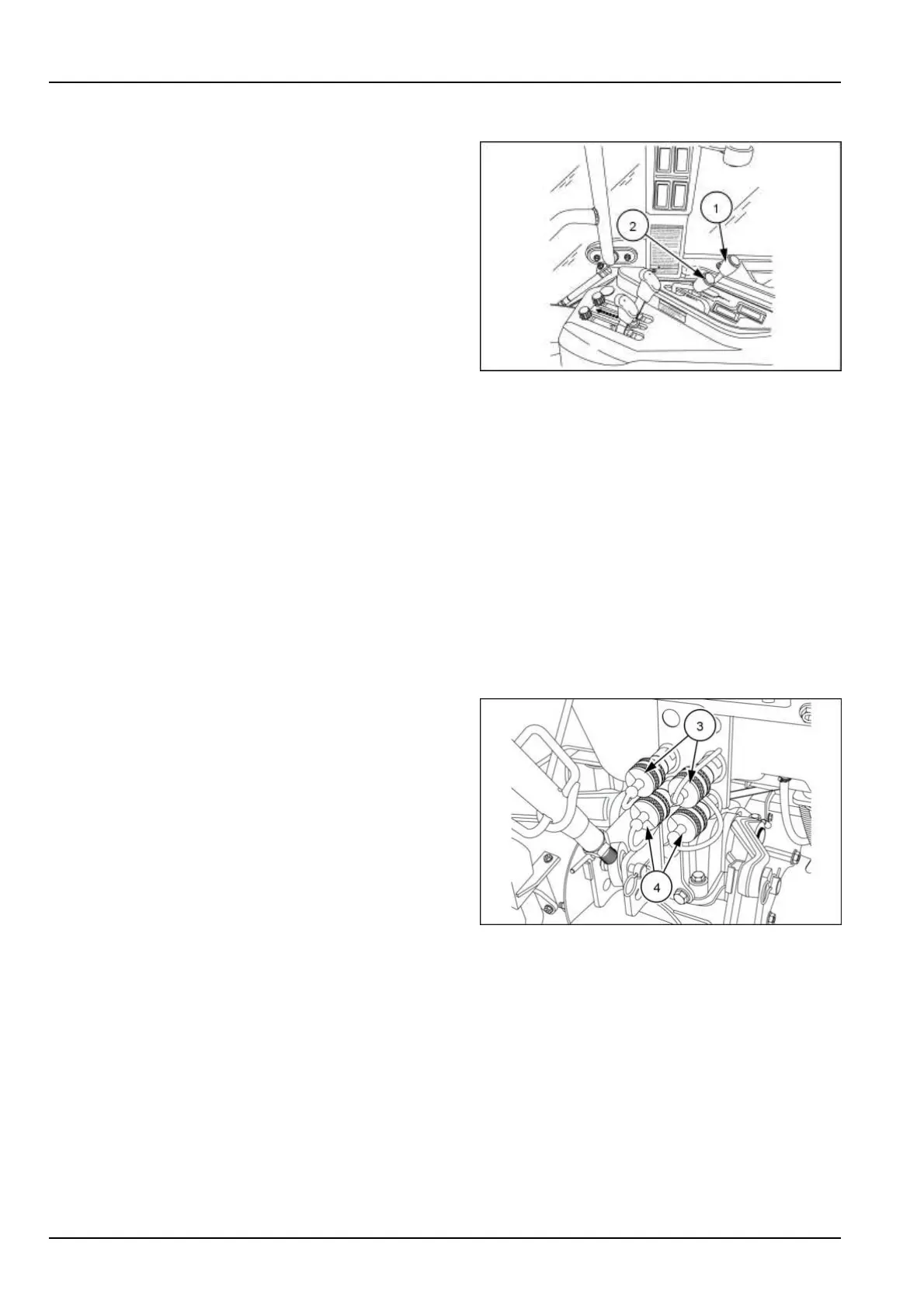

Rear remote control valves - Cab
Your tractor can be equipped with a one or two spool rear
remote valves. One spool control valve is standard equip-
ment. The control lever(s) (1) (Green) and (2) (Blue) is/are
located in front of the right-hand control pod.
NOTE: Two spool remote valve shown, one spool is sim-
ilar.
NOTE: The two spool remote valve is a dealer installed
accessory. See your local dealer for this optional two
spool remote kit.
NHIL15CT00516AA 1
To operate the one spool valve, pull the selected control lever rearward to extend the cylinder and push the control
lever forward to retract the cylinder. The #1 control lever (blue knob) is a detent type control valve. This valve will
remain in the raise or lower position and will require the operator to manually return the control lever to the neutral
position. This is useful in operating a hydraulic motor or a long stroke hydraulic cylinder. Return the control lever to
neutral to stop the hydraulic motor or to hold the hydraulic cylinder in any position. This valve will not return to neutral
once a hydraulic cylinder reaches the end of stroke. It is important to return the control lever to neutral when not using
the control valve.
To operate the two spool valve, pull the selected control lever rearward to extend the cylinder and push the control
lever forward to retract the cylinder. The #1 control lever (green knob) is a self-centering type control valve. Release
the control lever to stop the cylinder in any position before it reaches full extension. The lever automatically returns
to neutral. The #2 control lever (blue knob) is a detent type control valve. This valve will remain in the raise or lower
position and will require the operator to manually return the control lever to the neutral position. This is useful in
operating a hydraulic motor or a long stroke hydraulic cylinder. Return the control lever to neutral to stop the hydraulic
motor or to hold the hydraulic cylinder in any position. This valve will not return to neutral once a hydraulic cylinder
reaches the end of stroke. It is important to return the control lever to neutral when not using the control valve.
The #1 (Green) set of couplers (4) is located on bottom
and the #2 (Blue) set of couplers (3) is located on top.
The rear remote valves come standard with 12.7 mm
(0.5 in) female quick couplers.
93100915 2
3-62
