7 - MAINTENANCE
Adjusting steering angle
The steering angle must be checked or adjusted in case
of the following:
•
The front wheel track is adjusted.
•
When the front tires are replaced with tires that have
a bigger diameter or width.
•
When installing a front implement such as front-end
loader.
Follow these instructions:
1. Loosen the locking nuts (1) on both sides.
2. Connect the front eye hook of the tractor to the suit-
able capacity hoist, and lift the front axle off the
ground sufîš¿ciently.
3. Lift up one side of the front axle fully and turn the
steering wheel to the left and right while checking
that the clearances between the tires and any other
parts are over 20.0 mm (0.8 in) at a minimum.
4. At this time, set each steering stopper (2) on both
sides to contact the axle housing. Check for all pos-
sible interferences by any combination of steering
and oscillation of the front axle.
5. Tighten the locking nuts (1) on both sides.

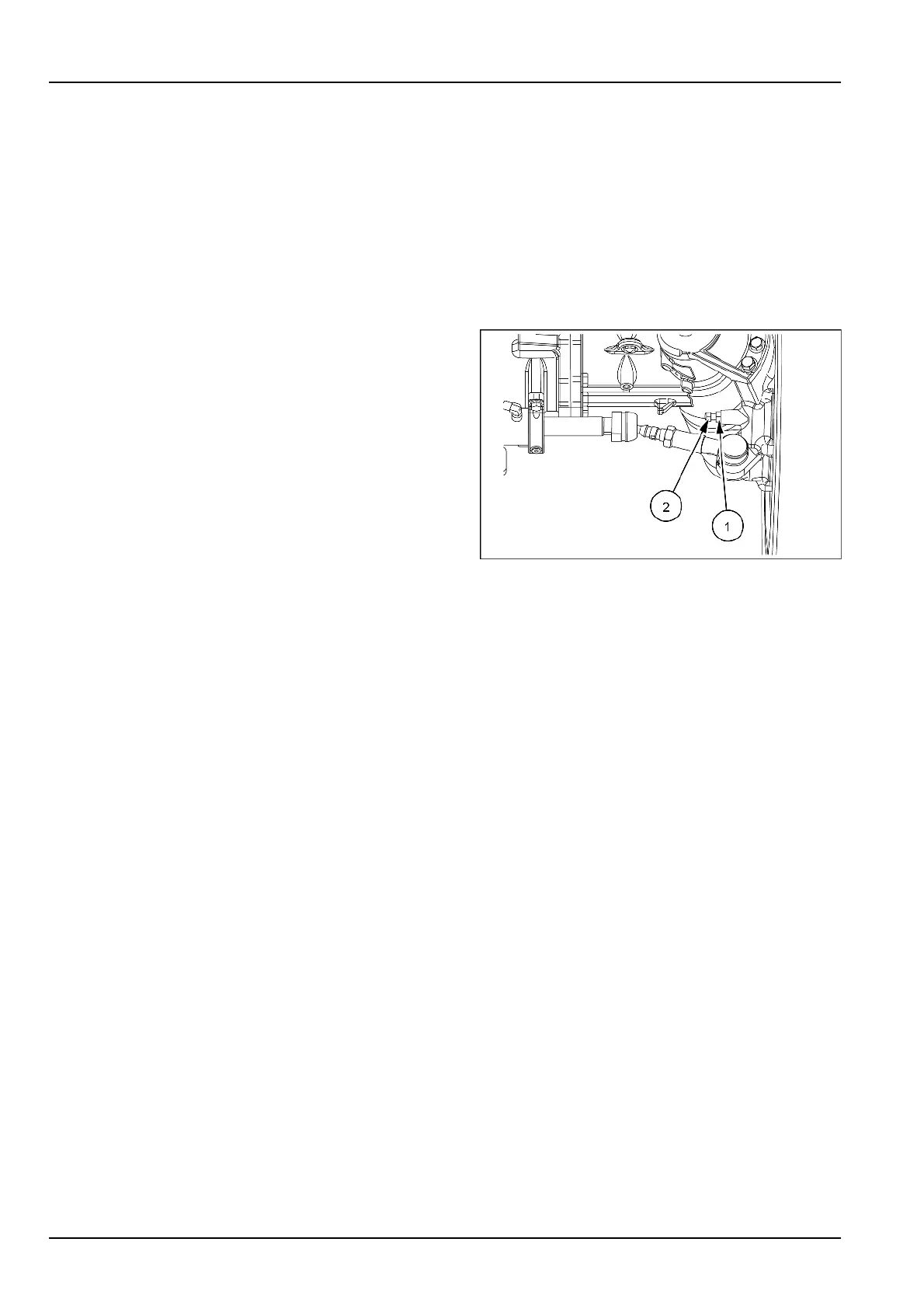

NHIL22CT00067AA 1
7-66
