Scrub System, Cylindrical 105Service Manual – SC6500
™

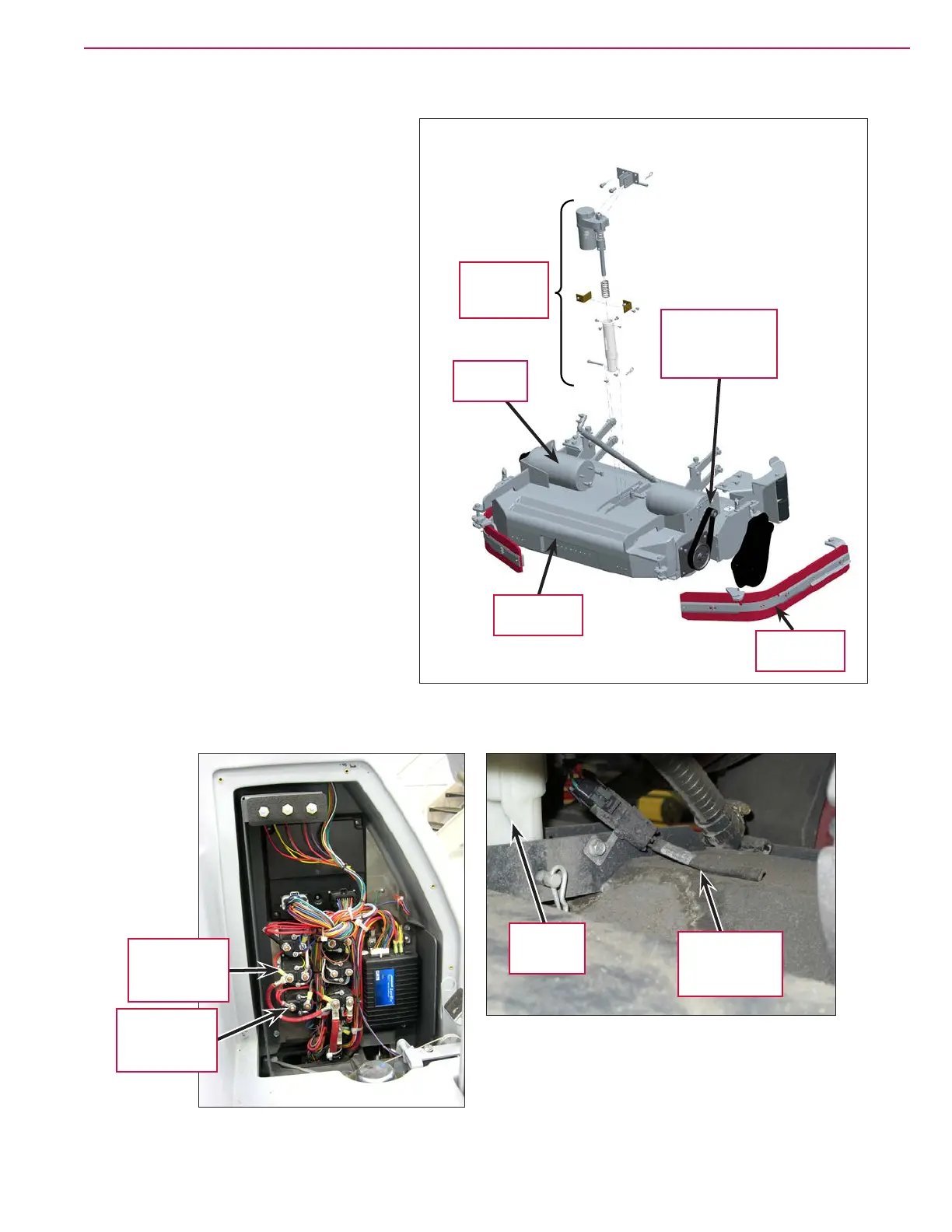

Component Locations
The 1-1/2 HP permanent-magnet Scrub
Motors
drive Poly V Sheaves and Drive Belts
that drive the broom drive lug assemblies
coupled to the brushes.
The Scrub Deck Actuator Assembly
raises and lowers the scrub deck and
automatically adjusts the deck height
during scrubbing to maintain the correct
scrub pressure.
The Hopper Assembly holds the dust and
debris swept up by the scrub brushes, and
can be removed for dumping and cleaning.
The Side Skirts direct the waste water to
the squeegee and help keep the water
conned within the cleaning path. The
Side Skirt height is adjustable, and the
Side Skirts can be removed for cleaning or
replacement.
Scrub
Motor (2)
Poly V Sheave/
Drive Belt (2)
(under
Belt Guard)
Scrub Deck
Actuator
Assembly
Hopper
Assembly
Side
Skirt (2)
R2 Resistor,
Scrub Deck
Sensing
Deck
Actuator
K2 Contactor,
Right Brush
K3 Contactor,
Center Brush
