Sweep System, Side Broom 173Service Manual – SC6500
™
Side Broom Gearmotor
1. Remove the Side
Broom Retainer Pin
,
then pull down on
the Side Broom and
remove it from the
motor shaft.
2. Disconnect the motor
wiring connector from
the main machine
harness. Note that you
may need to cut the tie
straps to do this.
3. Remove the fasteners
holding the Gearmotor
Assembly
to the
Side Broom Bracket
Weldment
.
4. Install the Side Broom
Motor
by following the
above steps in reverse
order.
5. Note that the position
of the mounting
screws inside the
three Die Springs set
the spring tension
for the side broom
front and side impact
breakaway.

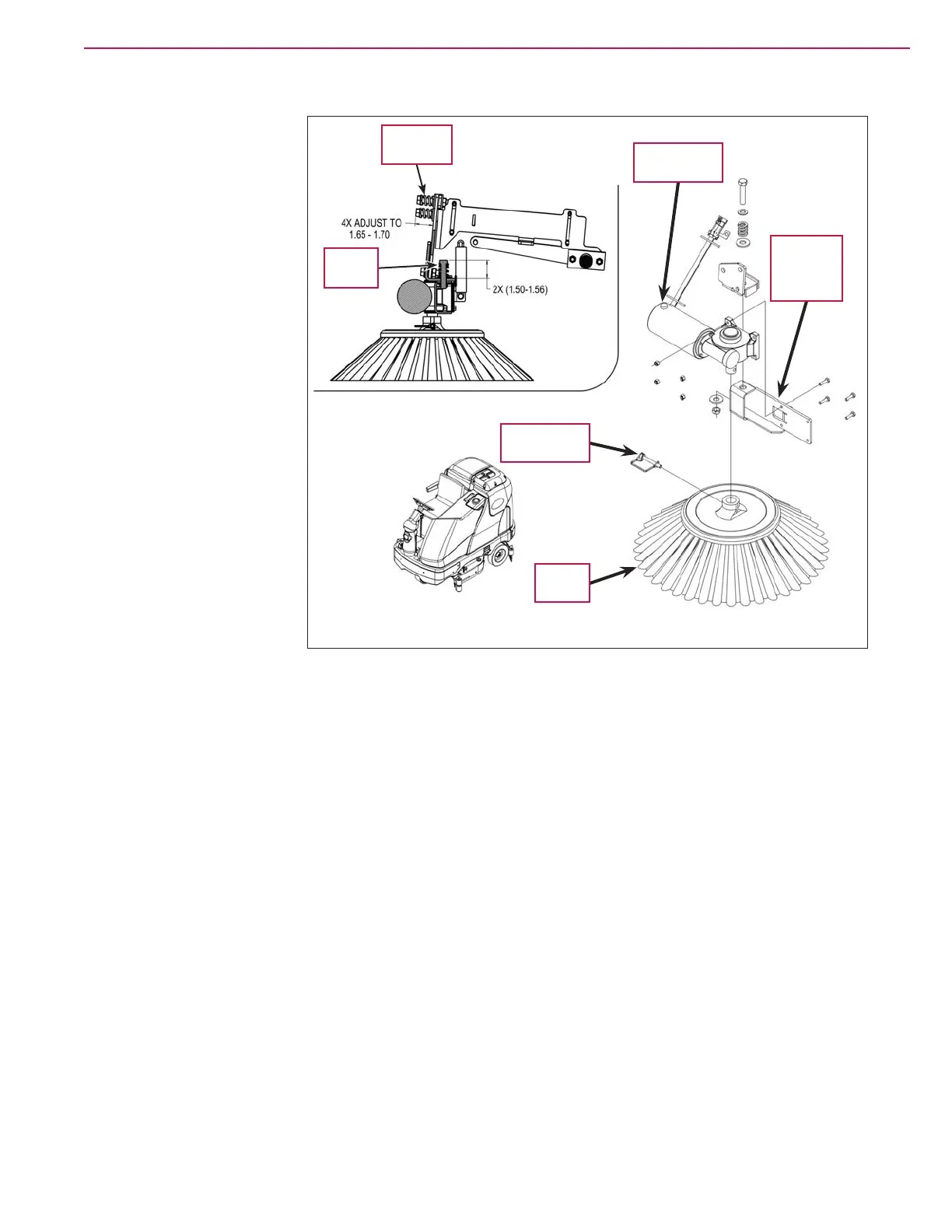

Once you’ve reinstalled the Gearmotor Assembly, adjust the mounting screws inside the Die Springs to the
dimensions shown in the detail drawing above.
6. Test the side broom Gearmotor Assembly for correct operation.
Side Broom
Retainer Pin
Side
Broom
Gearmotor
Assembly
Side
Broom
Bracket
Weldment
Die
Spring (2)
Die
Spring
