Electrical System 71Service Manual – SC6500
™

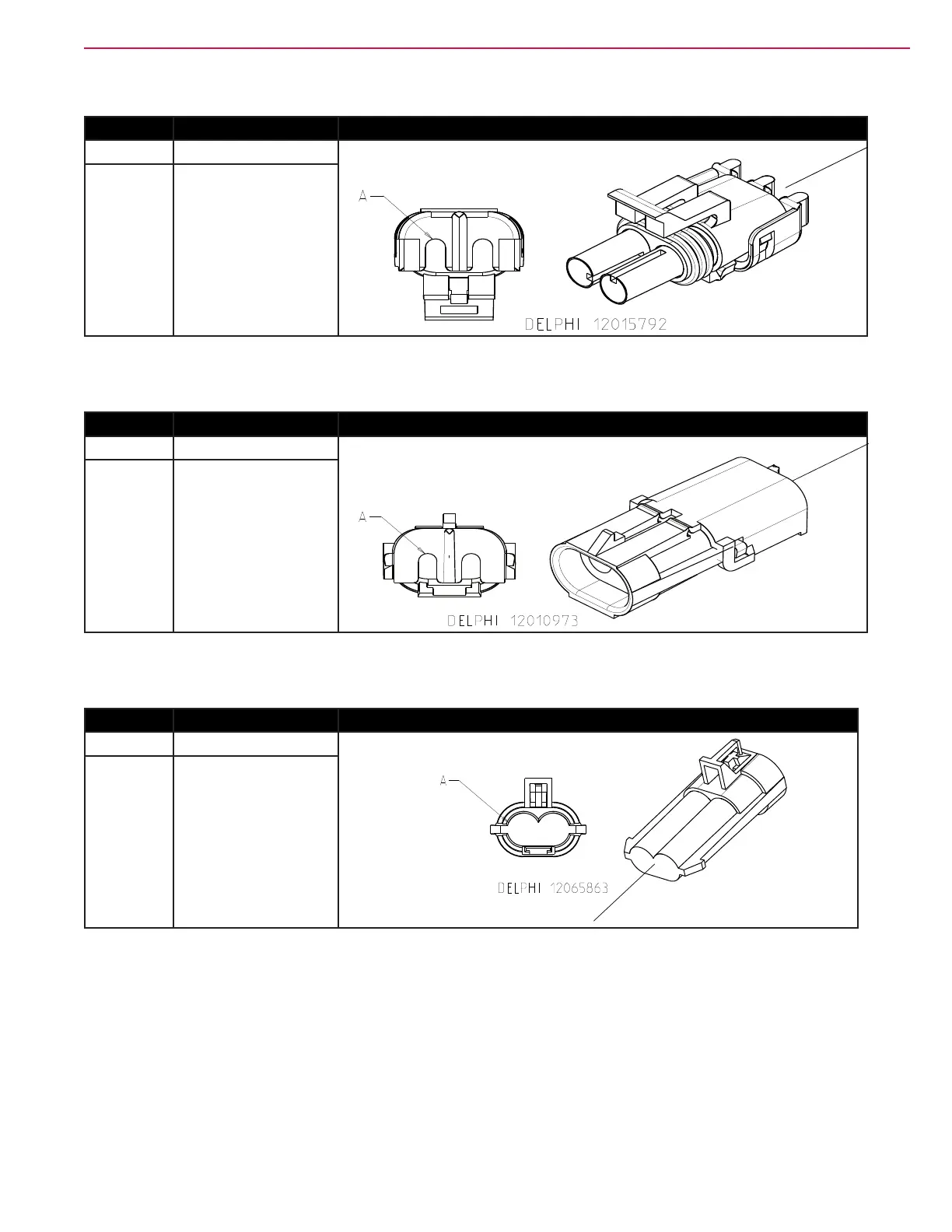

X41 Connects to R2 Scrub Deck Sensing Resistor X40
Pin No. Wire ID
A GRN/WHT 18-1
B ORN/BLK 18-1
X43 Connects to S5 Solution Tank Float Switch X42
Pin No. Wire ID
A VIO/YEL 18-1
B BLK 18-2
X49 Connects to X48 Connector of Vacuum Motor Wiring Harness
Pin No. Wire ID
A BLU/GRN 10-1
B BLK 10-8
